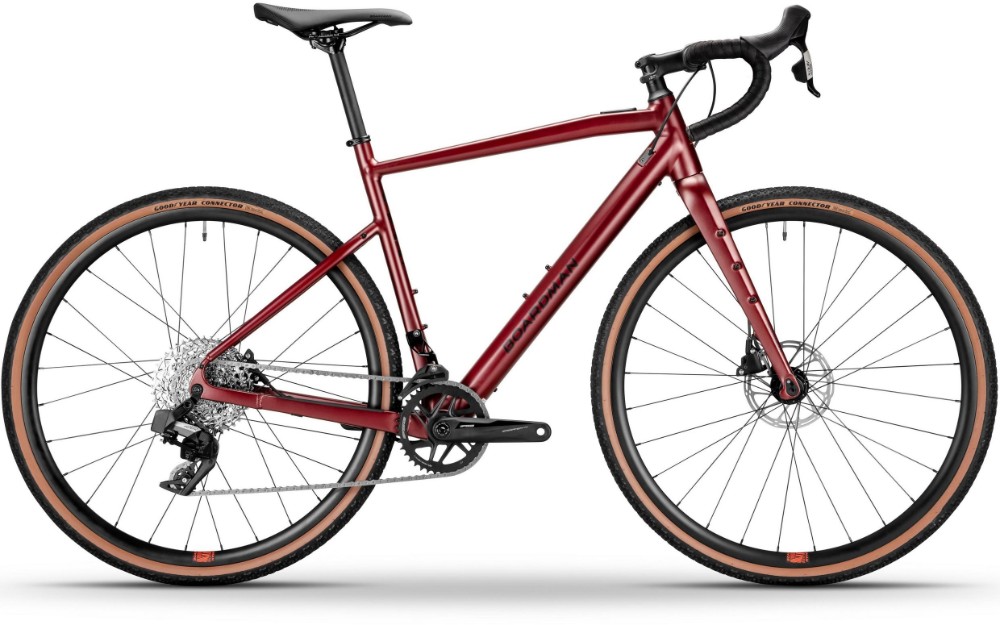

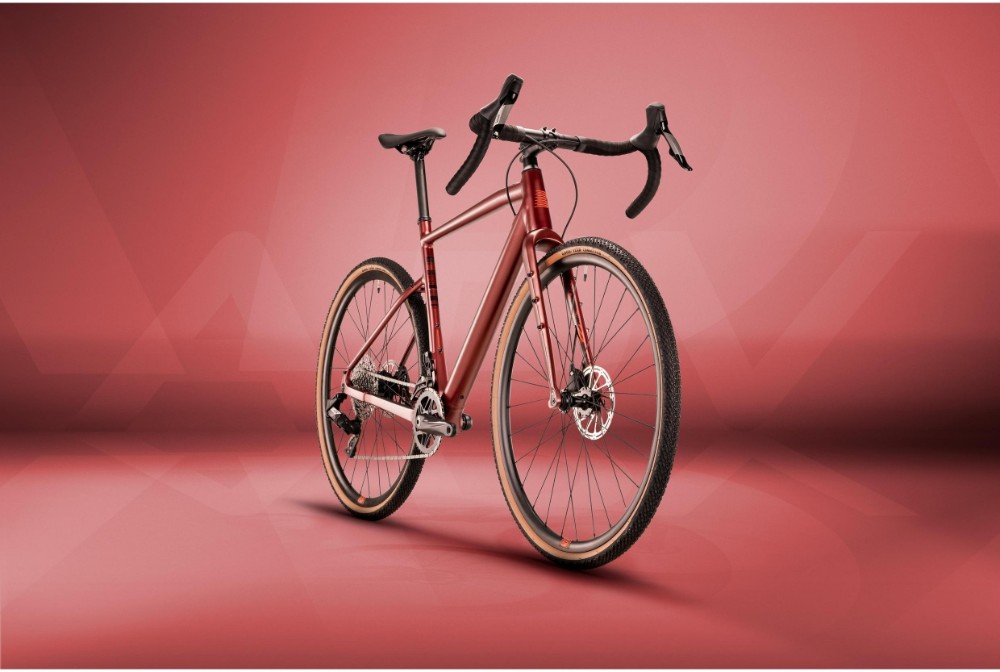

Boardman ADV-E 9.2 2025 - Gravel Bike
The Boardman ADV-E 9.2 combines a 6061 alloy frame, full carbon fork, Mahle X20 rear hub motor and SRAM Apex AXS 12-speed wireless drivetrain, offering seamless assistance, smooth shifting and versatile performance on gravel or road.
Key Features
- 6061 alloy adventure frame with carbon fork and endurance geometry
- Full carbon fork for reduced weight and vibration damping
- SRAM Apex AXS 1x12 wireless electronic drivetrain
- SRAM Apex hydraulic disc brakes with 160mm rotors
- Boardman alloy tubeless-ready wheelset
- Goodyear Connector 700x40c gravel tyres
- Mahle MySmartBike app connectivity
- Available with 0% APR finance
Drive Information
- Motor: Mahle X20 rear hub, 250W, 55Nm torque
- Battery: Mahle iX250, 250Wh capacity
- User Interface: Mahle iWoc One head unit with app integration
The Boardman ADV-E 9.2 builds on the award-winning ADV platform, bringing electric assist into a lightweight, adventure-ready package. At the heart of the bike is the Mahle X20 drive system, one of the lightest and most discreet e-bike systems available. The rear hub motor delivers up to 55Nm of torque with natural-feeling assistance, powered by a fully integrated 250Wh battery hidden within the frame. With its slim profile and near-silent operation, it’s difficult to tell at first glance that this is an e-bike.
Control is handled through the compact iWoc One head unit on the top tube, which allows quick access to assistance levels and battery status. For deeper integration, the Mahle MySmartBike app lets you connect via your smartphone, turning it into a live display and allowing you to monitor rides, adjust performance settings, and track training data.
Shifting comes courtesy of SRAM’s Apex AXS 1x12 wireless groupset. With no cables to worry about, it offers clean looks and crisp, reliable shifting. The 11-44T cassette provides a wide gear range for tackling everything from steep gravel climbs to fast road sections. Riders can also connect the groupset to the SRAM AXS app, customising controls and monitoring battery status.
The ADV-E 9.2 rolls on Boardman alloy wheels, tubeless-ready for easy conversion, paired with 40mm Goodyear Connector gravel tyres. These tyres feature tightly spaced centre knobs for speed and aggressive side knobs for cornering grip, making them ideal for mixed terrain riding. Comfort and control are enhanced by flared alloy handlebars and a Boardman saddle designed for long-distance efficiency.
Balancing performance, connectivity and versatility, the ADV-E 9.2 is perfect for riders who want the flexibility of an adventure bike with the added benefit of smart e-assist technology. Whether used for daily commuting, weekend exploring, or long-distance gravel adventures, it delivers a smooth, adaptable and connected ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Adventure, alloy 6061 |
| Fork | Rigid, Full Carbon |
| Headset | Integrated 1-1/8" - 1.5" |
| Stem | Boardman alloy, 80mm(S,M) 90mm(L) 100mm(XL) |
| Bars | Boardman alloy, 400mm(S) 420mm(M,L) 440mm(XL) 16-dgree flare |
| Front Brake | SRAM Apex AXS, ED-APX-D1, hydraulic disc, 160mm disc rotor |
| Rear Brake | SRAM Apex AXS, ED-APX-D1, hydraulic disc, 160mm disc rotor |
| Rear Mech | SRAM Apex AXS |
| Shifters | SRAM Apex AXS, ED-APX-D1, 12 speed |
| Speed | 12 |
| Rims | Boardman alloy, 28H, tubeless compatible |
| Rear Hub | Mahle X20 rear hub |
| Front Tyre | Goodyear Connector, 700x40c, tubeless ready |
| Rear Tyre | Goodyear Connector, 700x40c, tubeless ready |
| Seat Post | Boardman alloy, 27.2mm x 350mm(S,M) 400mm(L,XL) |
| Saddle | Boardman |
| Chainset | FSA Gossamer Pro, 40T, 170mm |
| Bottom Bracket | Mahle X20 TCS BB86 |
| Chain | SRAM Apex, CN-APX-D1, 12 speed |
| Cassette | SRAM XPLR PG-1231, 11-44T, 12 speed |
| Pedals | Alloy, cage |
| Battery Size (WH) | Mahle iX250, 36V, 250Wh |
| Motor | Mahle X20 rear hub, 250w, 55Nm torque |
| User Interface | Mahle X20 iWoc One Head Unit - STD |
Boardman ADV 2025 Size Chart
|
Size |
Height (cm) |
Height (inches) |
Inside Leg (cm) |
|
S |
170 – 179 |
5’7 – 5’10 |
74 - 82 |
|
M |
177 – 183 |
5’9 – 6’0 |
78 - 85 |
|
L |
181 – 189 |
5’11 – 6’2 |
82 - 89 |
|
XL |
187 - 195 |
6’1 – 6’5 |
86 - 94 |
What size frame do I need if I am between sizes? - read here
Boardman ADV 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 559 | 578 | 599 | 613 |
| Reach | 376 | 385 | 393 | 399 |
| Head Tube Length | 130 | 150 | 170 | 185 |
| Head Tube Angle | 71° | 71° | 71.5° | 71.5° |
| Bottom Bracket Drop | 73 | 73 | 73 | 73 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 |
| Chainstay Length | 430 | 430 | 430 | 430 |
| Top Tube Length (horizontal) | 535 | 555 | 575 | 585 |
| Seat Tube Length | 515 | 530 | 555 | 575 |
| Seat Tube Angle | 74° | 73.5° | 73° | 73° |
| Crank Length | 170 | 172.5 | 172.5 | 175 |
| Stem Length | 80 | 80 | 90 | 100 |
| Handlebar Width | 400 | 420 | 420 | 440 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
