(no reviews)Product ID: 258369

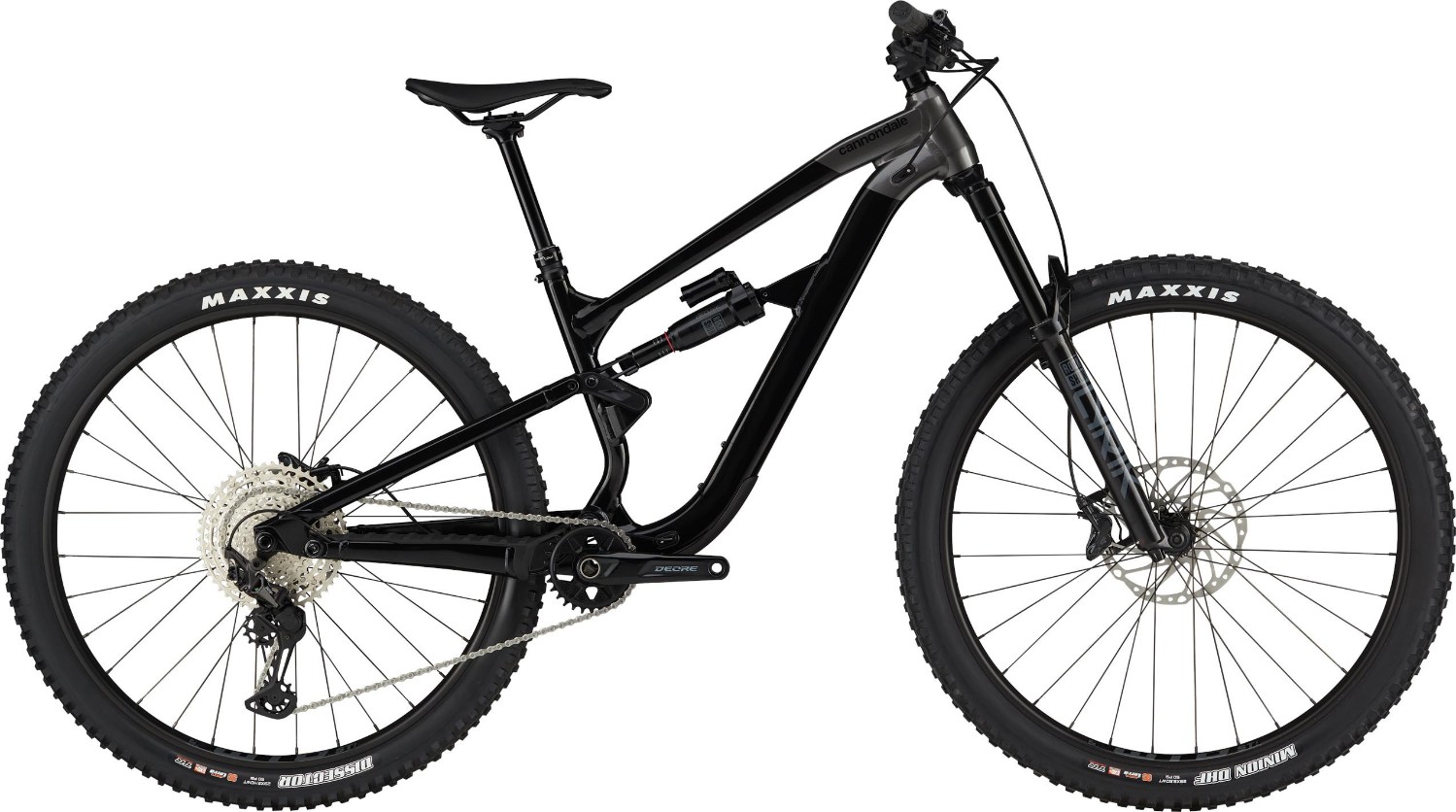

Cannondale Habit LT 2 Mountain Bike 2026 - Trail Full Suspension MTB
The Habit LT is a progressive trail mountain bike that is down for the ups but lives to get down. Precisely tuned for controlled chaos.
With modern trail geometry, proper trail spec, and groundbreaking suspension technology, it’s the mountain bike for mountain bikers who really love mountain biking.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Habit SmartForm C1 Alloy, 140mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger |
| Fork | RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset |
| Rear Shock | RockShox Super Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Front Brake | Shimano SLX 4-piston disc, 203/180mm RT64 rotors |
| Rear Brake | Shimano SLX 4-piston disc, 203/180mm RT64 rotors |
| Brake Lever | Shimano SLX hydraulic disc |
| Rear Mech | Shimano XT |
| Shifters | Shimano SLX, 12-speed |
| Speed | 12 |
| Rims | WTB ST i30 TCS, 32h, Tubeless ready |
| Front Hub | Shimano MT400, 15x110mm thru-axle |
| Rear Hub | Shimano MT510, 12x148mm thru-axle |
| Spokes | DT Swiss Champion |
| Front Tyre | (F) Maxxis Minion DHF, 29x2.5" (27.5x2.5" - XS), EXO, tubeless ready, (R) Maxxis Dissector, 29x2.5" (27.5x2.5" - XS), EXO, tubeless ready |
| Rear Tyre | (F) Maxxis Minion DHF, 29x2.5" (27.5x2.5" - XS), EXO, tubeless ready, (R) Maxxis Dissector, 29x2.5" (27.5x2.5" - XS), EXO, tubeless ready |
| Seat Post | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (XS-S), 150mm (M), 170mm (L, XL) |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Chainset | Shimano, FC-6120, 30T, 55mm chainline |
| Bottom Bracket | Shimano BSA 73 |
| Chain | Shimano SLX, 12-speed |
| Cassette | Shimano SLX, 10-51, 12-speed |
| Pedals | Not Included |
Cannondale Trail Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
154 – 162 |
5’1” – 5’4” |
|
M |
162 – 172 |
5’4” – 5’8” |
|
L |
170 – 182 |
5’7” – 6’0” |
|
XL |
182 – 190 |
6’0” – 6’3” |
Cannondale Trail Geometry Chart
| Size | XS (27.5") | SM (27.5") | MD (29") | LG (29") | XL (29") |
|---|---|---|---|---|---|
| Stack | 573 | 591 | 623 | 632 | 641 |
| Reach | 365 | 402 | 425 | 447 | 469 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Bottom Bracket Height | 293 | 293 | 307 | 307 | 307 |
| Bottom Bracket Drop | 60 | 60 | 65 | 65 | 65 |
| Trail | 97 | 97 | 101 | 101 | 101 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 |
| Front Centre | 621 | 665 | 702 | 728 | 754 |
| Chainstay Length | 440 | 440 | 445 | 445 | 445 |
| Wheelbase | 1054 | 1098 | 1140 | 1166 | 1192 |
| Top Tube Length (horizontal) | 535 | 577 | 609 | 634 | 659 |
| Standover Height | 673 | 710 | 768 | 795 | 839 |
| Seat Tube Length | 330 | 381 | 432 | 470 | 533 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
