(no reviews)Product ID: 248132

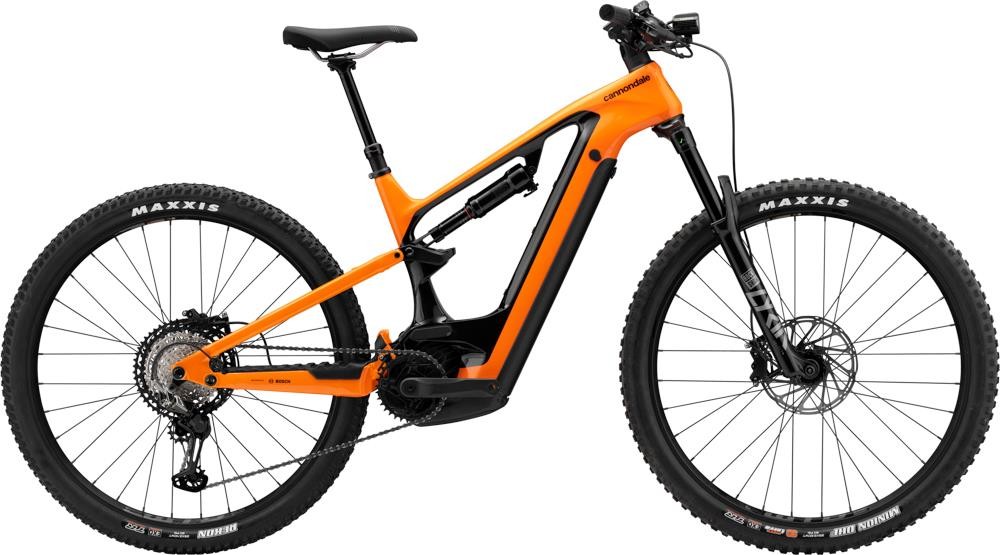

Cannondale Moterra Neo Carbon 1 2023 - Electric Mountain Bike
Breaking Boundaries
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling, smooth power and huge range, nothing is out of reach.
Powered By Bosch
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
Proportional Response Suspension
Riders come in all sizes, but our Proportional Response suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
750Wh Battery
Go longer. Do more laps. Explore the furthest peaks.With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
Built Light, Built Tough
A sophisticated carbon fiber main frame keeps mass to a minimum. And since our engineers prioritized durability over gram counting, confidence is built in (as is a lifetime warranty).
Powerful Headlight
Even the setting sun can't stop the fun. With the super bright, 1000 lumen front light from Lezyne, the trails are always open. Available on the level 1 model.
Key Benefits
- Trail Riding Perfection. With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
- Bosch Power. Climb higher. Shred harder. Ride further. With the largest battery and most powerful drive unit from the most respected name in e-bikes, there's no such thing as "can't".
- Built for You. Power and range are just the beginning. What makes the Moterra Neo really shine is how it handles. With our Proportional Response size-specific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was built just for you. Because it was.
- Ride Easy. Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 148x12mm thru-axle |
| Fork | RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset |
| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Headset | Acros integrated sealed bearing, tapered |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Bars | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Front Brake | Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors |
| Rear Brake | Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors |
| Brake Lever | Shimano XT hydraulic disc |
| Front Mech | Null |
| Rear Mech | Shimano XTR |
| Shifters | Shimano XT, 12-speed |
| Speed | 12 |
| Rims | WTB KOM Trail i30 TCS, 32h, tubeless ready |
| Front Hub | (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle |
| Rear Hub | (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle |
| Spokes | DT Swiss Champion |
| Front Tyre | (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", EXO, tubeless ready |
| Rear Tyre | (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", EXO, tubeless ready |
| Seat Post | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) |
| Saddle | Fabric Scoop Shallow Elite, cro-mo rails |
| Chainset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Bottom Bracket | Null |
| Chain | Shimano XT, 12-speed |
| Cassette | Shimano XT, 10-51, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX 250W |
| User Interface | Bosch Kiox 300 w/ LED remote |
Cannondale Moterra Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
Small |
154 – 165 |
5’ 1” – 5’ 5” |
|
Medium |
162 – 175 |
5’ 4” – 5’ 9” |
|
Large |
172 – 185 |
5’ 8” – 6’ 1” |
|
X Large |
182 – 195 |
6’ 0” – 6’ 5” |
