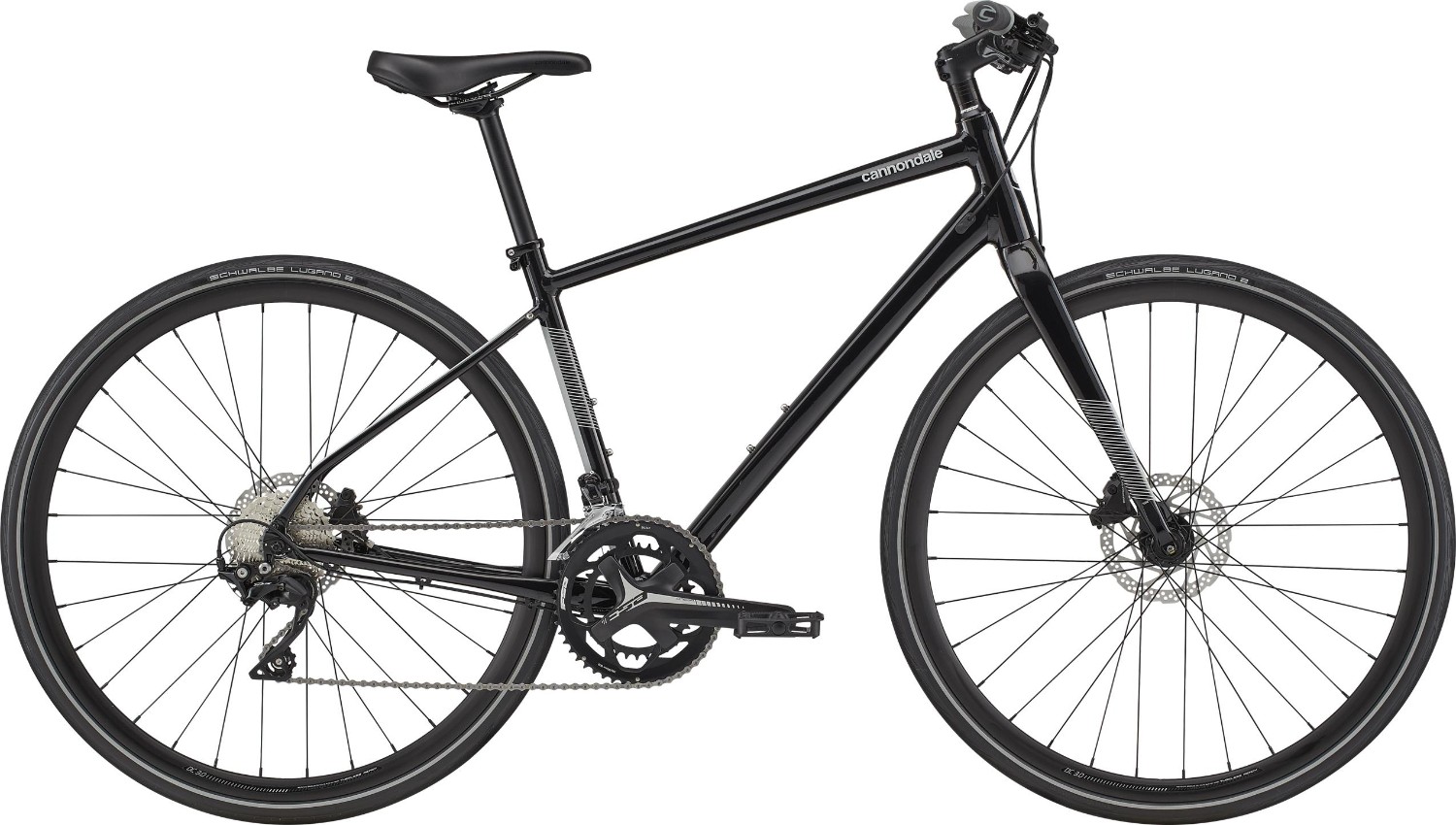

Cannondale Quick 1 Disc 2023 - Hybrid Sports Bike
The Cannondale Quick 1 Disc redefines the road biking experience with cutting-edge features. Its Smartform C3 alloy frame, complemented by a full carbon fork, guarantees a lightweight and responsive ride. The Shimano 105 2x11 drivetrain ensures seamless gear changes, while Shimano MT201 hydro disc brakes provide exceptional stopping power. With Cannondale disc wheels, Schwalbe Lugano tyres, and a host of innovative components, this bike strikes the perfect balance between speed and comfort.
Key Features:
- Frame: Smartform C3 alloy, tapered head tube, flat mount disc, rack/fender mounts.
- Fork: Full carbon, 12x100mm thru-axle, tapered steerer, flat mount disc, fender mounts.
- Drivetrain: Shimano 105 2x11 speed, FSA Omega 50/34 chainset, Shimano HG601 11-speed chain.
- Brakes: Shimano MT201 hydro disc, 160mm front and rear RT56 rotors.
- Wheels: Cannondale disc, double wall, 32h, with Schwalbe Lugano 700 x 32c tyres.
- Other Feature: Shimano RS700 FB 2x11 shifters for precise control.
- Finance Option: Available with 0% APR finance.
Unleash the potential of the Cannondale Quick 1 Disc. The Shimano 105 GS rear mech and FSA Megaexo bottom bracket enhance power transfer, while the Shimano RS700 FB shifters provide ergonomic control. The Cannondale Quick Ergo Performance saddle ensures comfort on longer journeys, and the hidden cable routing adds to the bike's sleek aesthetic. Tackle any terrain with confidence, thanks to the 22-speed capability and reliable Shimano components.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts, 360° reflectivity |
| Headset | FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8" |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | Cannondale Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 640mm |
| Front Brake | Shimano MT201 hydro disc, 160mm RT56 rotors |
| Rear Brake | Shimano MT201 hydro disc, 160mm RT56 rotors |
| Brake Lever | Shimano MT201 hydro disc |
| Front Mech | Shimano 105, 31.8 clamp |
| Rear Mech | Shimano 105 GS |
| Shifters | Shimano RS700 FB, 2x11 |
| Speed | 22 |
| Rims | Cannondale Disc, double wall, 32h |
| Front Hub | Formula CRX-512, 12x100 |
| Rear Hub | Formula CX-22 QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Lugano, 700 x 32c, K-Guard, reflective strip |
| Rear Tyre | Schwalbe Lugano, 700 x 32c, K-Guard, reflective strip |
| Seat Post | Cannondale 3, 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Quick Ergo Performance |
| Chainset | FSA Omega, 50/34 |
| Bottom Bracket | FSA MegaExo |
| Chain | Shimano HG601, 11-speed |
| Cassette | Shimano 105, 11-32, 11-speed |
| Pedals | Cannondale Fitness Reinforced Composite |
Cannondale Quick Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick Geometry Chart
| Size | SM | MD | LG | XL | 2XL |
|---|---|---|---|---|---|
| Stack | 554 | 578 | 602 | 626 | 650 |
| Reach | 398 | 406 | 414 | 422 | 430 |
| Head Tube Length | 133 | 158 | 184 | 209 | 234 |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Bottom Bracket Height | 282 | 282 | 282 | 282 | 282 |
| Bottom Bracket Drop | 68 | 68 | 68 | 68 | 68 |
| Trail | 62 | 62 | 62 | 62 | 62 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 627 | 643 | 660 | 676 | 692 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1053 | 1069 | 1086 | 1102 | 1118 |
| Top Tube Length (horizontal) | 567 | 583 | 598 | 613 | 628 |
| Standover Height | 699 | 741 | 782 | 822 | 862 |
| Seat Tube Length | 400 | 450 | 500 | 550 | 600 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
