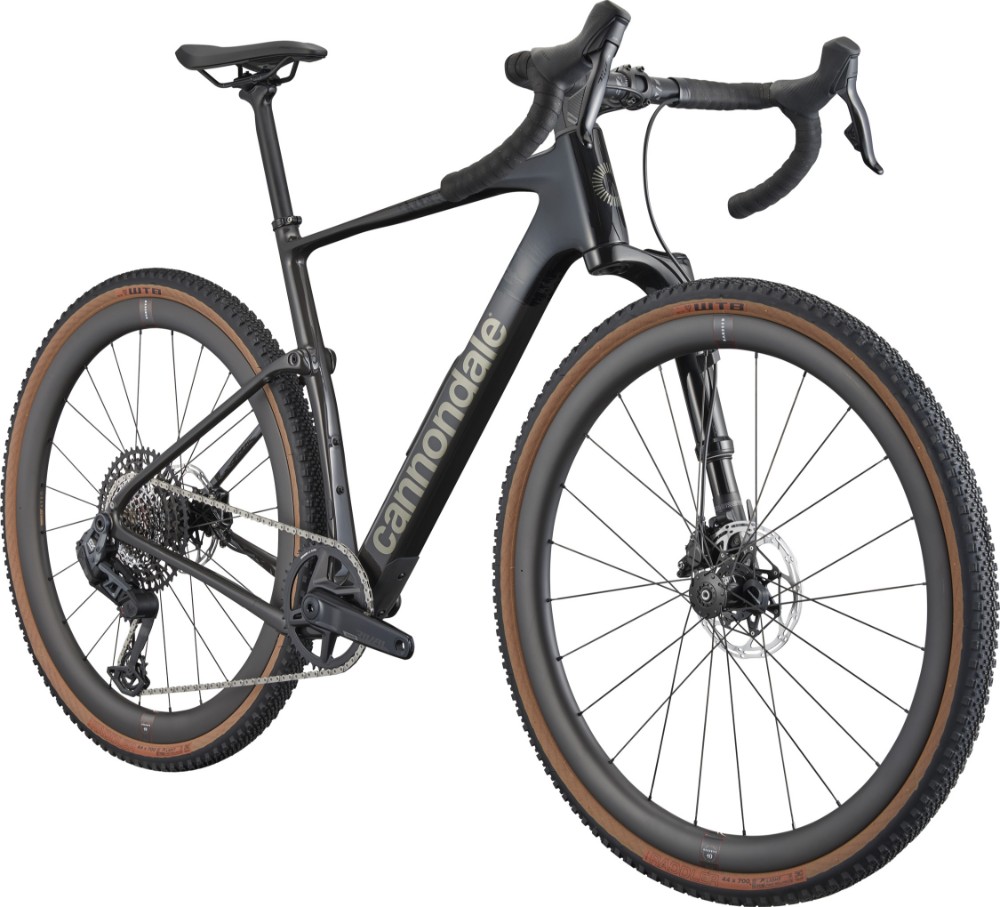

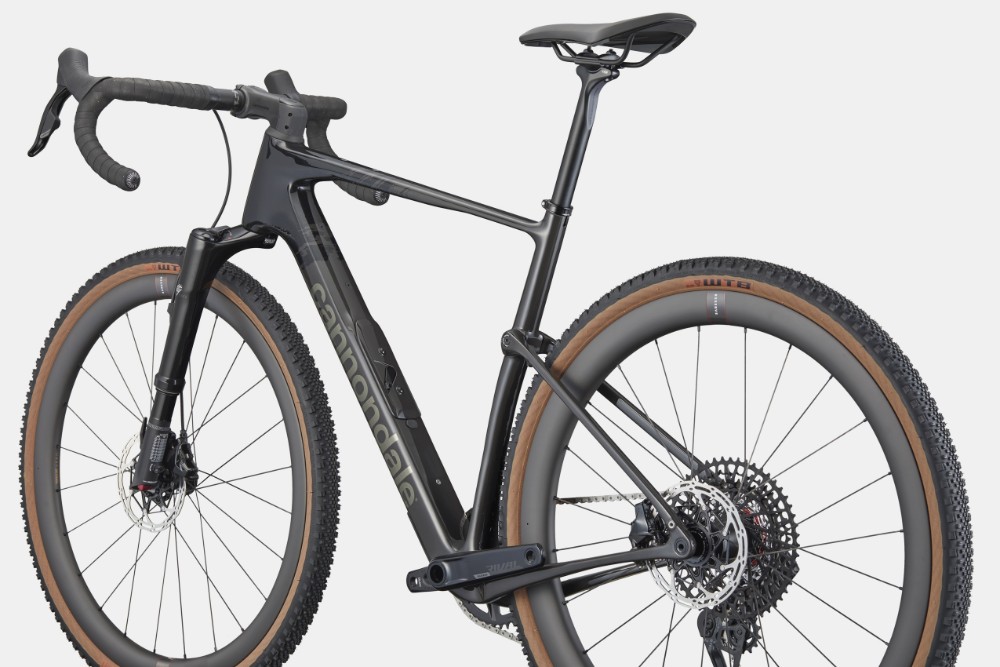

Name: Cannondale Topstone Carbon Lefty AXS 2025 - Gravel Bike
Brand: Cannondale

The Cannondale Topstone Carbon Lefty AXS takes gravel capability to the next level with its unique Lefty Oliver suspension fork. Designed specifically for gravel riding, this lightweight fork delivers 40mm of travel, smoothing out rough terrain and providing precise handling without sacrificing efficiency. The Gen 2 Chamber Damper and ISO High-Ride air spring ensure a controlled ride, whether you're blasting down gravel descents or navigating technical singletrack.

Cannondale Topstone Carbon Review

Key Features:

Frame: Carbon with Kingpin suspension, StashPort storage, clearance for 44c tyres.
Fork: Lefty Oliver, 40mm travel, Gen 2 Chamber Damper, ISO High-Ride air spring.
Drivetrain: SRAM Rival AXS 1x12-speed, wireless electronic shifting.
Brakes: SRAM Rival hydraulic discs, 160mm CenterLine X rotors.
Wheels: Reserve 40 I 44 GR carbon rims with DT Swiss 370 rear hub.
Tyres: WTB Raddler 700x44c, tubeless-ready, aggressive tread.
Standout Feature: Cannondale Wheel Sensor for real-time ride data.
Finance: Available with 0% APR finance.

At the heart of the bike is Cannondale’s Kingpin suspension system, which offers up to 30mm of rear travel while maintaining stiffness and efficiency. This allows the bike to absorb vibrations and impacts, keeping you comfortable on long rides. Proportional Response construction fine-tunes frame compliance and geometry for each size, ensuring a balanced ride for all riders.

The wireless SRAM Rival AXS 1x12 drivetrain provides seamless, intuitive shifting with no cables to worry about. Paired with a massive 10-52T SRAM GX cassette, this setup delivers a wide range of gears for tackling steep climbs and maintaining speed on fast descents.

SRAM Rival hydraulic disc brakes ensure powerful and consistent stopping power with 160mm CenterLine X rotors, giving you confidence in all conditions. The Reserve 40 I 44 GR carbon wheels, designed with Turbulent Aero Tech, offer a blend of lightweight performance and durability, while DT Swiss 370 hubs provide smooth engagement.

WTB Raddler 700x44c tubeless-ready tyres strike the perfect balance between grip and rolling speed, with an aggressive tread pattern that bites into loose surfaces while remaining fast on hardpack. Cannondale’s SAVE carbon seatpost and Easton EA70 AX flared handlebars enhance comfort and control over long distances.

The integrated Cannondale Wheel Sensor syncs with the Cannondale App, offering real-time speed, distance, and route tracking, along with service reminders. Whether you're tackling demanding gravel races, multi-day bikepacking trips, or epic all-terrain adventures, the Cannondale Topstone Carbon Lefty AXS is built to perform. And with 0% APR finance available, upgrading your ride is easier than ever.

Occasionally, without notice, manufacturers change product design and/or specifications.

Cannondale Topstone Carbon 2025 Size Chart

Size	Height (cm)	Height (Inches)
47	149 - 167	4'11" - 5'6"
51	165 - 175	5'5" - 5'9"
54	172 - 180	5'8" - 5'11"
56	177 - 185	5'10" - 6'1"
58	182 - 193	6'0" - 6'4"
61	190 - 200	6'3" - 6'7"

Cannondale Topstone Carbon 2025 Geometry Chart

Size	47	51	54	56	58	61
Stack	554	561	579	597	615	646
Reach	364	373	378	383	389	397
Head Tube Length	97	104	123	142	164	196
Head Tube Angle	69.9°	70.7°	70.7°	70.7°	70.7°	70.7°
Bottom Bracket Height	280	280	283	283	285	285
Bottom Bracket Drop	79	79	76	76	74	74
Trail	73	67	67	67	67	67
Fork Rake/Offset	55	55	55	55	55	55
Front Centre	601	605	617	628	641	659
Chainstay Length	420	420	420	420	420	420
Wheelbase	1009	1012	1026	1036	1050	1069
Top Tube Length (horizontal)	532	543	554	564	576	593
Standover Height	716	744	772	800	834	864
Seat Tube Length	410	446	482	518	554	590
Seat Tube Angle	73.1°	73.1°	73.1°	73.1°	73.1°	73.1°

All measurements are in mm unless otherwise stated.

The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.

Frame	Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, multiple gear/bottle mounts
Fork	Lefty Oliver, 40mm travel, lockout, Gen 2 Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
Headset	Acros IS52/40 ICR
Stem	Cannondale C1 Conceal, Alloy, 31.8, -6°
Bars	Easton EA70 AX
Front Brake	SRAM Rival hydraulic disc, 160/160mm CenterLine X 6-bolt front, centerlock rear rotors
Rear Brake	SRAM Rival hydraulic disc, 160/160mm CenterLine X 6-bolt front, centerlock rear rotors
Brake Lever	SRAM Rival AXS hydraulic disc
Front Mech	Null
Rear Mech	SRAM GX Eagle AXS, T-Type
Shifters	SRAM Rival AXS, 12-speed
Speed	12
Rims	Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
Front Hub	(F) Lefty 50, 6-Bolt / (R) DT Swiss 370, 12x142mm centerlock
Rear Hub	(F) Lefty 50, 6-Bolt / (R) DT Swiss 370, 12x142mm centerlock
Spokes	Sapim CX-Delta J-bend
Front Tyre	WTB Raddler TCS Light, 700x44c, tubeless ready
Rear Tyre	WTB Raddler TCS Light, 700x44c, tubeless ready
Seat Post	Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)
Saddle	Fizik Terra Argo X5
Chainset	SRAM Rival DUB Wide, 42T
Bottom Bracket	SRAM DUB BSA Road 68 Wide
Chain	SRAM GX Eagle Transmission, 12-speed
Cassette	SRAM GX XS-1275, 10-52, T-Type, 12-speed
