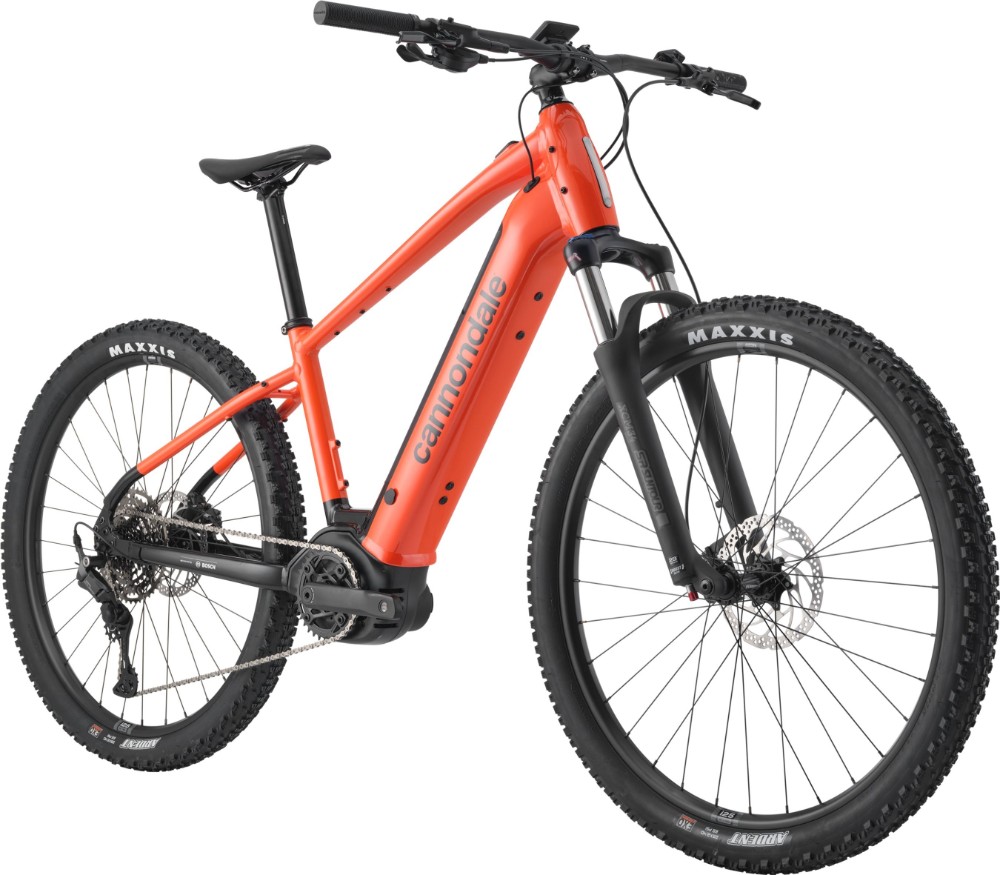

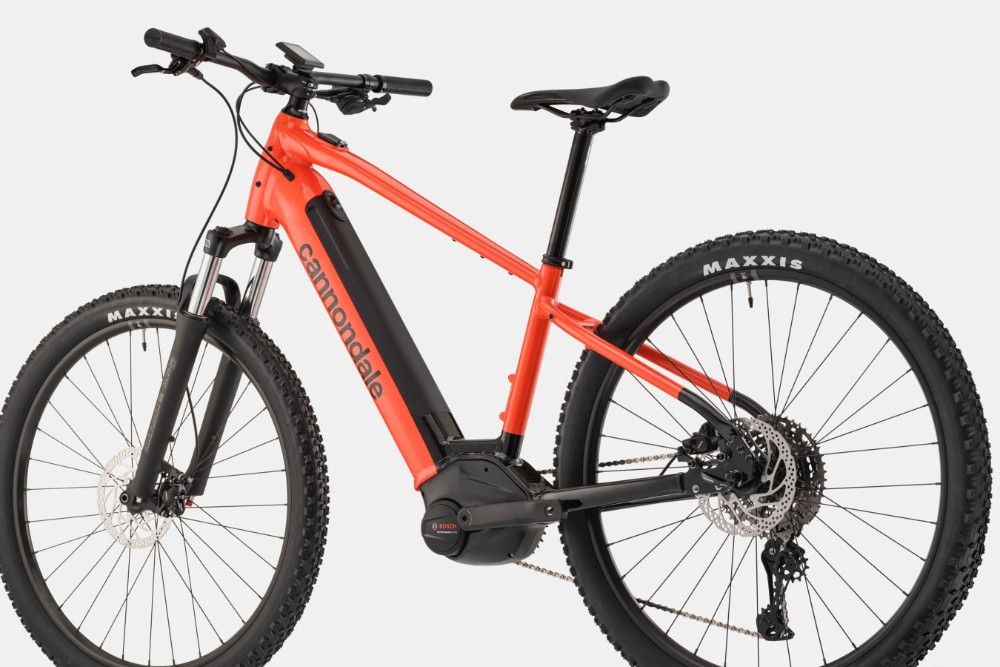

Cannondale Trail Neo 3 2026 - Electric Mountain Bike
This rugged, fun-loving, electric mountain bike is ready to take your trail-riding game to a whole new level. Sporting a powerful Bosch drive system, long-lasting battery and trail-ready components, it lives to conquer the hills and carve the canyons. Or equip it with racks, fenders and lights, and cruise your daily commute. Trail Neo is ready for anything.
Key Features:
- The rugged aluminum frame features an integrated front running light, plus mounts for kickstand, rack and fenders.
- Bosch’s sporty and versatile Performance Line drive unit delivers up to 65Nm of torque, and 300% support, in a quiet, natural feeling way.
- A removable, 625Wh battery provides tons of range for exploration and adventure.
- The durable, reliable, Shimano CUES U6000 10-speed group offers smooth shifting and a wide gear range.
- The Suntour XCM 34 fork features 100mm of travel, and wide, 34mm stanchions for precise steering.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount |
| Fork | SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset |
| Headset | Integrated, 1-1/8 to 1.5", sealed bearings |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm |
| Front Brake | Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors |
| Rear Brake | Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors |
| Brake Lever | Shimano MT200 hydraulic disc |
| Rear Mech | Shimano CUES U6000 |
| Shifters | Shimano CUES U6000, 10-speed |
| Speed | 10 |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110mm thru-axle |
| Rear Hub | Shimano UR600, 9x135mm QR |
| Spokes | DT Swiss Champion 2.0 |
| Front Tyre | Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection |
| Rear Tyre | Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection |
| Seat Post | Cannondale 3, 6061 Alloy, 31.6x350mm |
| Saddle | Cannondale Ergo XC |
| Chainset | FSA Bosch Gen3, 170mm, 38T |
| Chain | KMC E500 |
| Cassette | Shimano CUES LG400, 11-48, 10-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube, 625Wh |
| Motor | Bosch Performance Line |
| User Interface | Bosch Intuvia w/LED remote |
Cannondale Trail Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
154 – 162 |
5’1” – 5’4” |
|
M |
162 – 172 |
5’4” – 5’8” |
|
L |
170 – 182 |
5’7” – 6’0” |
|
XL |
182 – 190 |
6’0” – 6’3” |
Cannondale Trail Geometry Chart
| Size | XS (27.5") | SM (27.5") | MD (29") | LG (29") | XL (29") |
|---|---|---|---|---|---|
| Stack | 573 | 591 | 623 | 632 | 641 |
| Reach | 365 | 402 | 425 | 447 | 469 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Bottom Bracket Height | 293 | 293 | 307 | 307 | 307 |
| Bottom Bracket Drop | 60 | 60 | 65 | 65 | 65 |
| Trail | 97 | 97 | 101 | 101 | 101 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 |
| Front Centre | 621 | 665 | 702 | 728 | 754 |
| Chainstay Length | 440 | 440 | 445 | 445 | 445 |
| Wheelbase | 1054 | 1098 | 1140 | 1166 | 1192 |
| Top Tube Length (horizontal) | 535 | 577 | 609 | 634 | 659 |
| Standover Height | 673 | 710 | 768 | 795 | 839 |
| Seat Tube Length | 330 | 381 | 432 | 470 | 533 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
