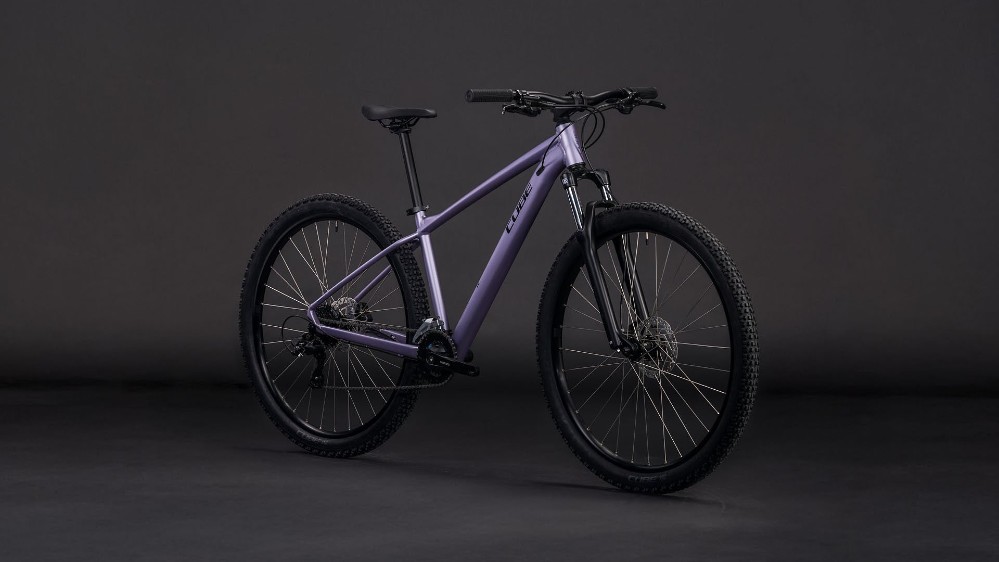

Cube Aim One Mountain Bike 2026 - Hardtail MTB
The Cube Aim One is designed to give riders confidence and control, whether taking on forest trails, gravel paths or everyday rides. Its Aluminium Lite frame uses advanced hydroforming and double-butted tubing to save weight while maintaining strength, and Smooth Welded tube junctions give the bike its sleek looks. Internal cable routing keeps things tidy and protected, while a threaded bottom bracket and flat-mount disc setup add durability. Cube has also included mounting points for mudguards, a kickstand and a carrier, making the Aim One as practical as it is capable.
Key Features:
- Aluminium Lite double-butted frame with modern geometry
- SR Suntour XCE fork with 100mm travel
- Shimano 2x8 drivetrain with Rapidfire Plus shifters
- Shimano MT200 hydraulic disc brakes
- 27.5/29” ACID Pro 25 wheels with 2.25” Cube tyres

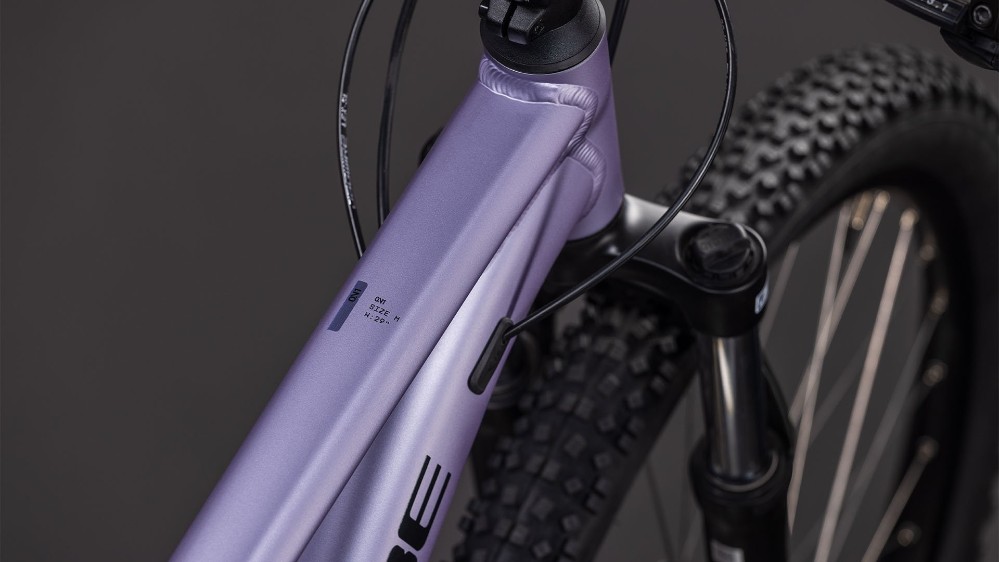

- Internal cable routing and Smooth Welded frame details
- Size Split system for a perfect fit
- Available with 0% APR finance
A 100mm SR Suntour XCE suspension fork smooths out bumps and rough ground, working alongside wide 2.25” Cube tyres to keep you comfortable and in control across mixed terrain. Geometry has been carefully designed with a slightly lower top tube for confident handling and extra stability on descents.
The Shimano 2x8 drivetrain offers a wide gear range, with Rapidfire Plus shifters for quick, reliable gear changes whether climbing or accelerating on flatter sections. Braking power comes from Shimano MT200 hydraulic disc brakes, giving consistent stopping performance in all weather conditions.
Rolling on ACID Pro 25 tubeless-ready wheels, the Aim One delivers durability and efficiency, with size options offered through Cube’s Size Split system meaning both 27.5” and 29” wheel setups are available depending on frame size, so every rider gets the perfect fit.
Finishing kit includes a CUBE Performance seatpost, an ACID Venec Lite saddle, and a practical set of platform pedals so you can hit the trails straight away.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCE, 100mm |
| Headset | CUBE FPH863, Semi-Integrated |
| Stem | CUBE Performance Stem, 31.8mm |
| Bars | CUBE Rise Trail Bar, 680mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Front Mech | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Rear Mech | Shimano RD-TX800, 8-Speed |
| Shifters | Shimano SL-M315, Rapidfire-Plus |
| Speed | 16 |
| Rims | ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready |
| Front Tyre | CUBE MTB, 2.25 |
| Rear Tyre | CUBE MTB, 2.25 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | ACID Venec Lite |
| Chainset | Shimano FC-M315, 36x22T, 170mm |
| Bottom Bracket | Thun Paso-ML, 73mm BSA |
| Chain | KMC Z8.3 |
| Cassette | Shimano CS-HG200, 12-32T |
| Pedals | CUBE PP MTB |
Cube Aim Size Chart
|
Size |
Height (cm) |
Height (in) |
|
XS |
150 - 161 |
4’11” – 5’3” |
|
S |
158 - 166 |
5’2” – 5’5” |
|
M |
164 - 178 |
5’4” – 5’10” |
|
L |
176 - 185 |
5’9” – 6’1” |
|
XL |
183 - 191 |
6’0” – 6’4” |
|
XXL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
