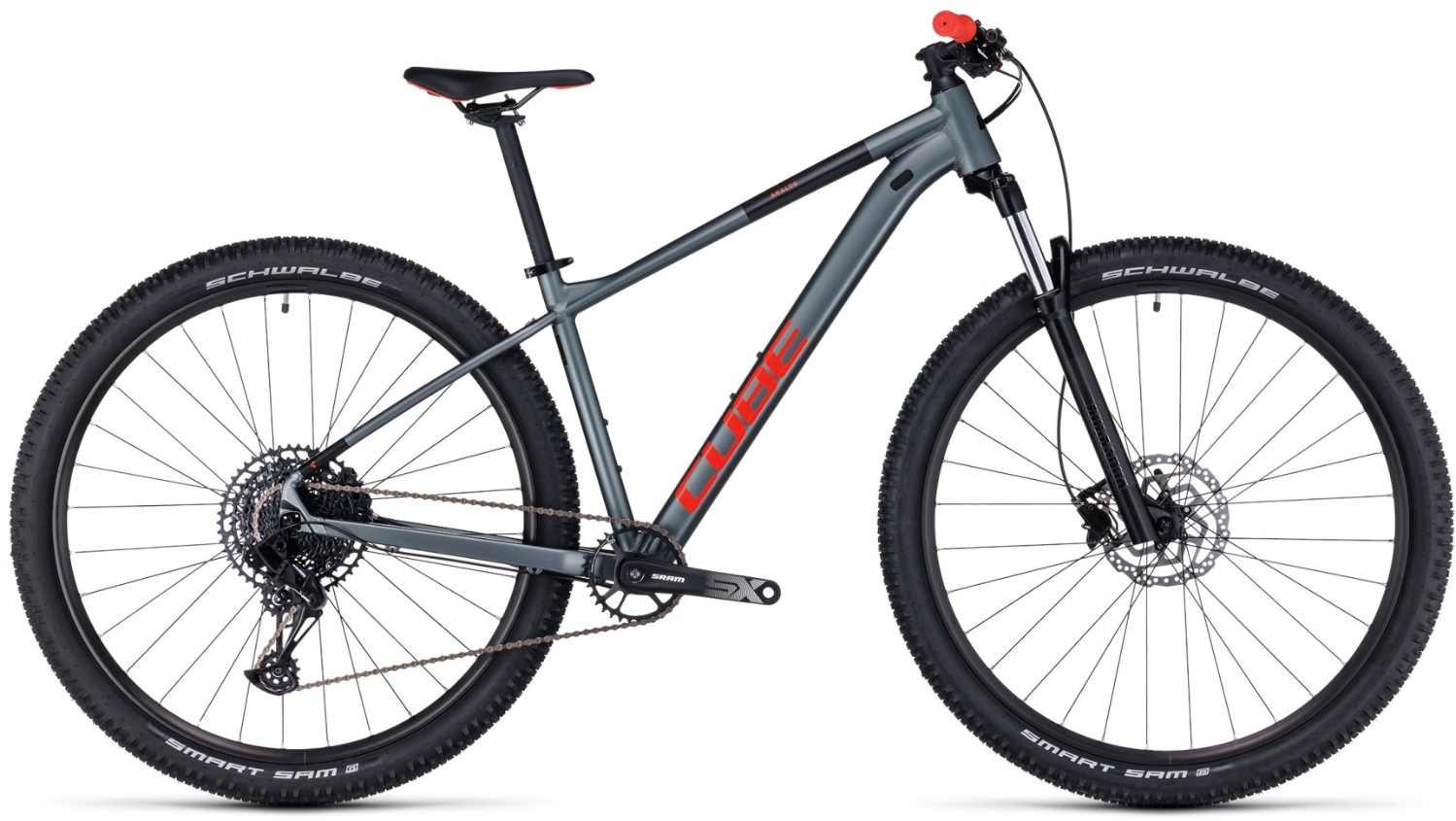

Cube Analog Mountain Bike 2024 - Hardtail MTB
Designed from Aluminium Lite with smooth-welded junctions and internal cable routing, it epitomizes durability and elegance. Its SRAM Eagle 1x12 transmission delivers versatility and reliability. The RockShox Judy Silver TK Coil fork provides 100mm of controlled suspension with a convenient lockout. Hydraulic disc brakes ensure stopping power, while grippy 2.25in Schwalbe Smart Sam tyres offer traction. The Analog's thoughtful design includes integrated mudguard and carrier mounts, reflecting Cube's commitment to functionality. The SizeSplit system guarantees a perfect fit, and with the option of a future dropper post upgrade, it's a hardtail tailored to your evolving skills.
Key Features:
- Frame: Aluminium Lite, AMF, double-butted, internal cable routing, tapered head tube, flat mount brake, SIC mount, FM kickstand mount.
- Front Suspension: RockShox Judy Silver TK Coil, 100mm, lockout.
- Drivetrain: Sram SX Eagle™ 12-speed, Sram SX Eagle™ trigger shifters, Sram SX Eagle™ Powerspline 32t chainset.
- Brakes: Shimano BR-MT200/UR300 hydraulic disc brakes (180/160).
- Wheels: Cube ZX20, 32h, disc; Schwalbe Smart Sam, Active, 2.25 tyres.
- Other Features: Smooth-welded junctions, SizeSplit system, internal cable routing, Cube Performance Post, Natural Fit Venec Lite saddle.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | RockShox Judy Silver TK Coil, 100mm, Lockout |
| Headset | CUBE FPH868, Semi-Integrated |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Bars | CUBE Rise Trail Bar, 680mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Rear Mech | Sram SX Eagle™, 12-Speed |
| Shifters | Sram SX Eagle™ Trigger |
| Speed | 12 |
| Rims | CUBE ZX20, 32H, Disc |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.25 |
| Seat Post | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Chainset | Sram SX Eagle™ Powerspline, 32T, 175mm |
| Chain | Sram SX Eagle™ |
| Cassette | Sram PG-1210 Eagle™, 11-50T |
| Pedals | ACID PP MTB |
Cube Analog Size Chart
|
Size |
Height (cm) |
Height (in) |
|
XS |
150 - 161 |
4’11” – 5’3” |
|
S |
158 - 166 |
5’2” – 5’5” |
|
M |
164 - 178 |
5’4” – 5’10” |
|
L |
176 - 185 |
5’9” – 6’1” |
|
XL |
183 - 191 |
6’0” – 6’4” |
|
XXL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
