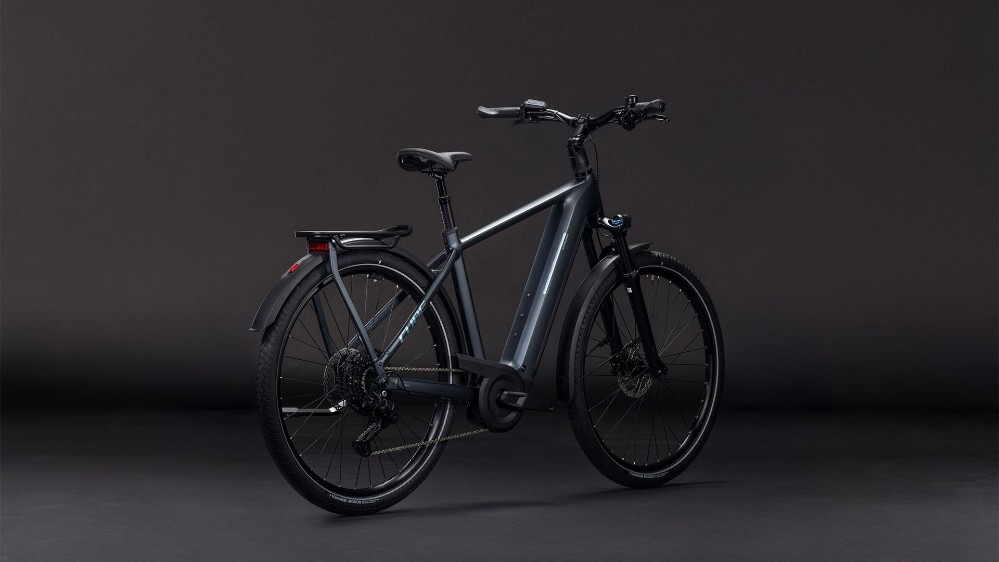

Cube Kathmandu Hybrid One 800 2026 - Electric Hybrid Bike
Frame description
The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
| Fork | SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Bars | CUBE Comfort Trail Bar, 700mm |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180) |
| Rear Mech | Shimano Cues RD-U6000-GS, 10-Speed |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Speed | 10 |
| Rims | ACID Pro 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | ACID Pro 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Rear Hub | ACID Pro 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Motion Big Apple, PerfL, 55-622 |
| Rear Tyre | Schwalbe Motion Big Apple, PerfL, 55-622 |
| Seat Post | CUBE Suspension Seatpost HD, 31.6mm |
| Saddle | ACID Sequence 180 |
| Chainset | ACID MTB Hybrid Pro, 40T |
| Chain | KMC eGlide |
| Cassette | Shimano Cues CS-LG300, 11-48T |
| Battery Size (WH) | Bosch PowerTube 800 |
| Motor | Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Cube Kathmandu Hybrid Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
46cm |
165 - 170 |
5’5” – 5’7” |
|
50cm |
170 - 175 |
5’7” – 5’9” |
|
54cm |
175 – 180 |
5’9” – 5’11” |
|
58cm |
180 - 190 |
5’11” – 6’3” |
|
62cm |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
