Cube Reaction Hybrid Performance 500 Allroad Trapeze 2025 - Electric Mountain Bike

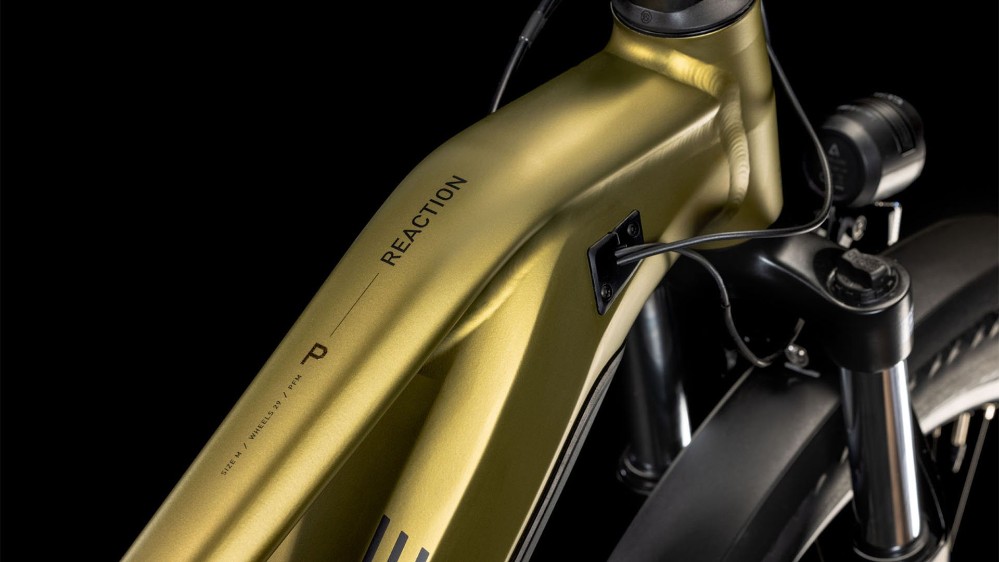

The Reaction Hybrid Performance Trapeze is thoughtfully designed for riders who want a confidence-inspiring step-through frame paired with modern e-bike performance. Built from lightweight Aluminium Superlite tubing, the low-top-tube trapeze frame offers easy mounting and dismounting, especially useful in urban settings or for riders with reduced mobility.
Key Features:
- Aluminium Superlite trapeze frame with Agile Ride Geometry for comfort and control
- SR Suntour NVX30 coil suspension fork with 100mm travel for added comfort
- Shimano CUES 9-speed drivetrain with Rapidfire Plus shifting
- Shimano BR-MT200 hydraulic disc brakes with 180mm rotors
- 27.5"/29" CUBE EX25 wheels with 2.35” Schwalbe Smart Sam tyres
- Full kit: mudguards, lights, kickstand and rack-ready mounts
- Available with 0% APR finance
Drive Information:
- Bosch Performance Line Gen 3 motor, 250W, 75Nm torque
- Bosch PowerTube 500Wh fully integrated battery
- Bosch Purion 200 display with remote and integrated controls
The Reaction Hybrid Performance Trapeze is thoughtfully designed for riders who want a confidence-inspiring step-through frame paired with modern e-bike performance. Built from lightweight Aluminium Superlite tubing, the low-top-tube trapeze frame offers easy mounting and dismounting, especially useful in urban settings or for riders with reduced mobility.
CUBE’s Agile Ride Geometry delivers a stable yet responsive ride feel across both paved and unpaved routes. Whether you’re commuting through town, riding canal paths or taking on scenic backroads, this bike provides a comfortable platform that’s easy to handle.
Power comes from the Bosch Performance Line Gen 3 motor, producing a smooth and natural-feeling boost with 75Nm of torque. Paired with a fully integrated 500Wh PowerTube battery, the system provides ample range for daily rides and weekend adventures. The Purion 200 display offers clear ride data and intuitive control, with a neat, compact layout that integrates seamlessly into the handlebars.
The Shimano CUES 9-speed drivetrain offers reliable gear changes and a wide-range 11–46T cassette, ideal for managing hilly terrain with ease. Meanwhile, Shimano MT200 hydraulic disc brakes with 180mm rotors ensure you can stop safely and consistently in all conditions.
With a SR Suntour NVX30 fork providing 100mm of suspension travel, and wide 2.35” Schwalbe Smart Sam tyres, the bike handles rougher surfaces and light trails with comfort and control. It's also kitted out with full-length mudguards, integrated lights, a kickstand, and rack mounting points, making it ready for commuting, errands or travel.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Fully Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts |
| Fork | SR Suntour NVX30 NLO Coil, 100mm |
| Headset | ACROS AZF-1031, 1 1/8" straight, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | CUBE Rise Trail Bar Pro, 740mm |
| Front Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180) |
| Rear Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180) |
| Rear Mech | Shimano Cues RD-U4000-GS, 9-Speed |
| Shifters | Shimano Cues SL-U4010- Rapidfire-Plus |
| Speed | 9 |
| Rims | CUBE EX25, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-QC300, QR, Centerlock |
| Rear Hub | Shimano FH-QC300-HM, QR, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.35 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.35 |
| Seat Post | CUBE Performance Post, 30.9mm |
| Saddle | ACID Sequence Pro 160 |
| Chainset | ACID MTB Hybrid, 38T |
| Chain | KMC eGlide |
| Cassette | Shimano Cues CS-LG300, 11-46T |
| Pedals | ACID PP MTB |
| Weight | 25,3kg |
| Battery Size (WH) | Bosch PowerTube 500 |
| Motor | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch Purion 200 w/ Integrated Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
