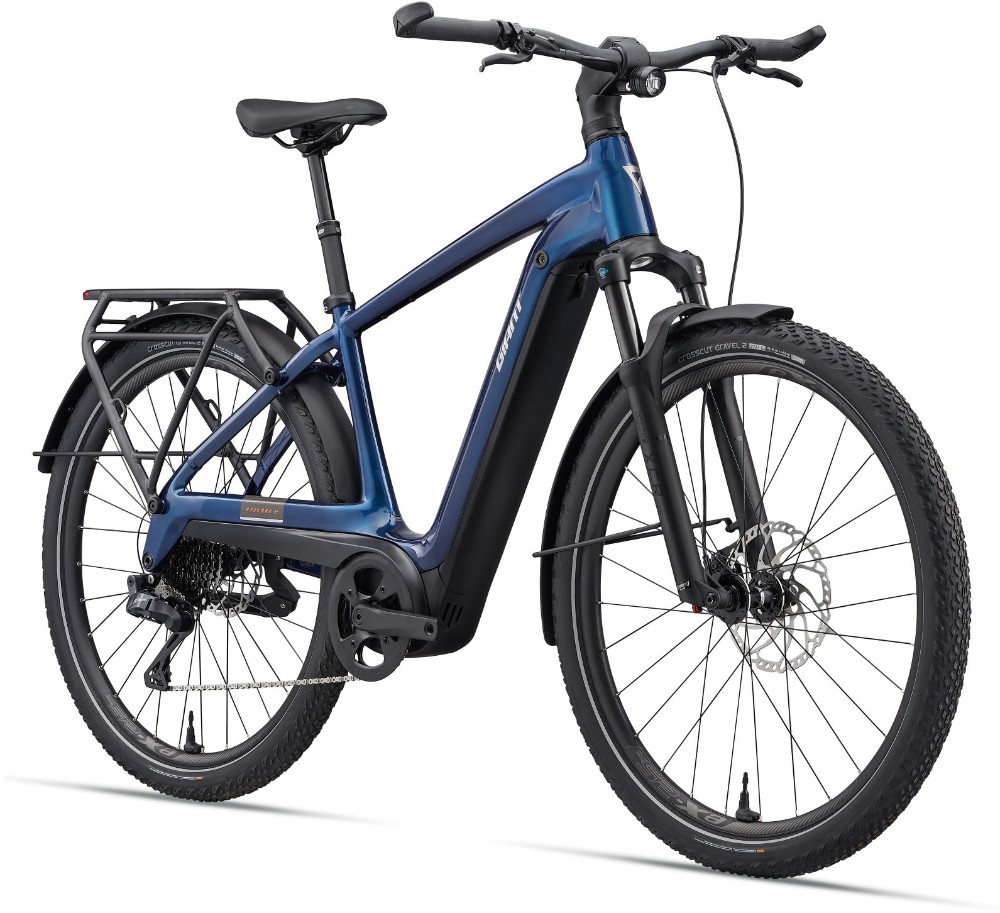

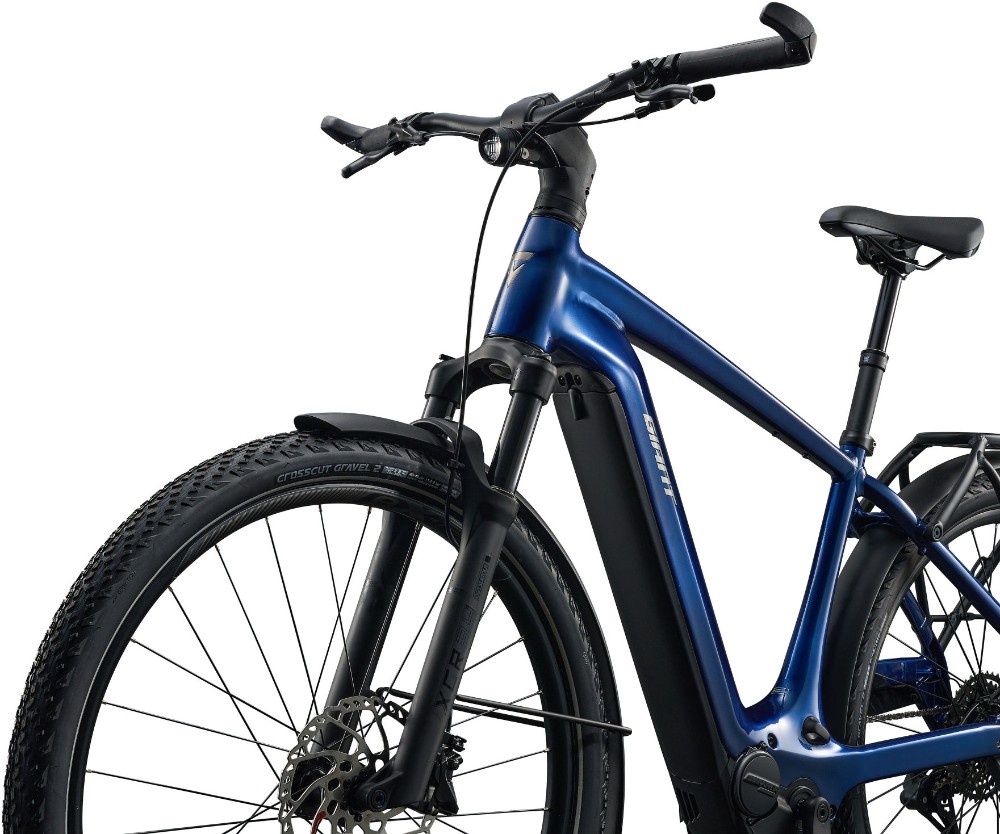

Giant Explore E+ 1 Double Diamond 2026 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Gen 4 ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
| Fork | SR Suntour XCR34 2CR air boost 100mm travel 15x110mm AH axle |
| Stem | Giant Contour EVO integrated 16⁰ NEW, (S/M:80mm L/XL/XXL 100mm) |
| Bars | Giant Contour Comfort Riser 31.8x720mm |
| Front Brake | Shimano Deore, BR-MT420, hydraulic disc, 4-piston, 203mm [F] 180mm [R] |
| Rear Brake | Shimano Deore, BR-MT420, hydraulic disc, 4-piston, 203mm [F] 180mm [R] |
| Brake Lever | Shimano BL-M401 |
| Rear Mech | Shimano Cues Di2, 11-Speed |
| Shifters | Shimano Cues Di2 E-Shift |
| Speed | 11 |
| Rims | Giant eX25, Tubeless Ready, 622x25 Aluminium |
| Front Hub | Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R] |
| Rear Hub | Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R] |
| Spokes | Stainless steel, e-bike optimized |
| Front Tyre | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip |
| Rear Tyre | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip |
| Seat Post | Giant Contact Switch |
| Saddle | Selle Royal Vivo Ergo Moderate Unisex |
| Chainset | Forged alloy spider w/chainguard BCD 104, steel narrow/wide chainring 42T |
| Chain | Shimano Linkglide CN-LG500 |
| Cassette | Shimano, 11-45T, 11-speed |
| Pedals | Anti-slip Platform |
| Battery Size (WH) | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exclude STA frame) |
| Motor | Giant SyncDrive Pro2, 85Nm PedalPlus 6-Sensor technology |
| User Interface | Giant RideDash EVO 2.0, high-angle visibility, 3" full color LCD display, on-board navigation |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
