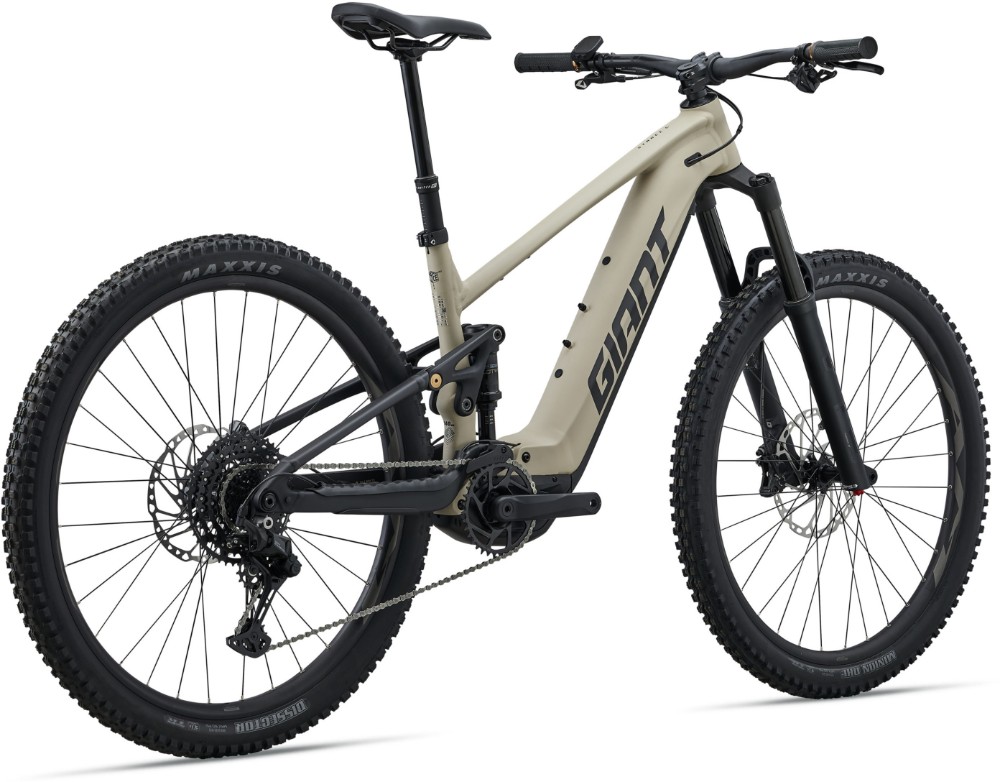

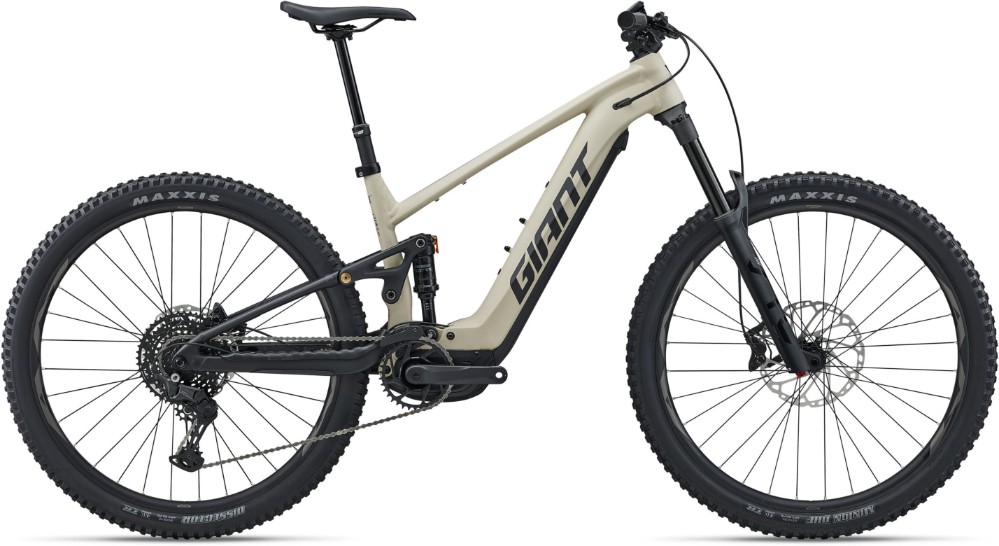

Giant Stance E+ 1 2027 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185X52.5mm shock, 1.5~1.8" headset (ZS62/ZS72) |

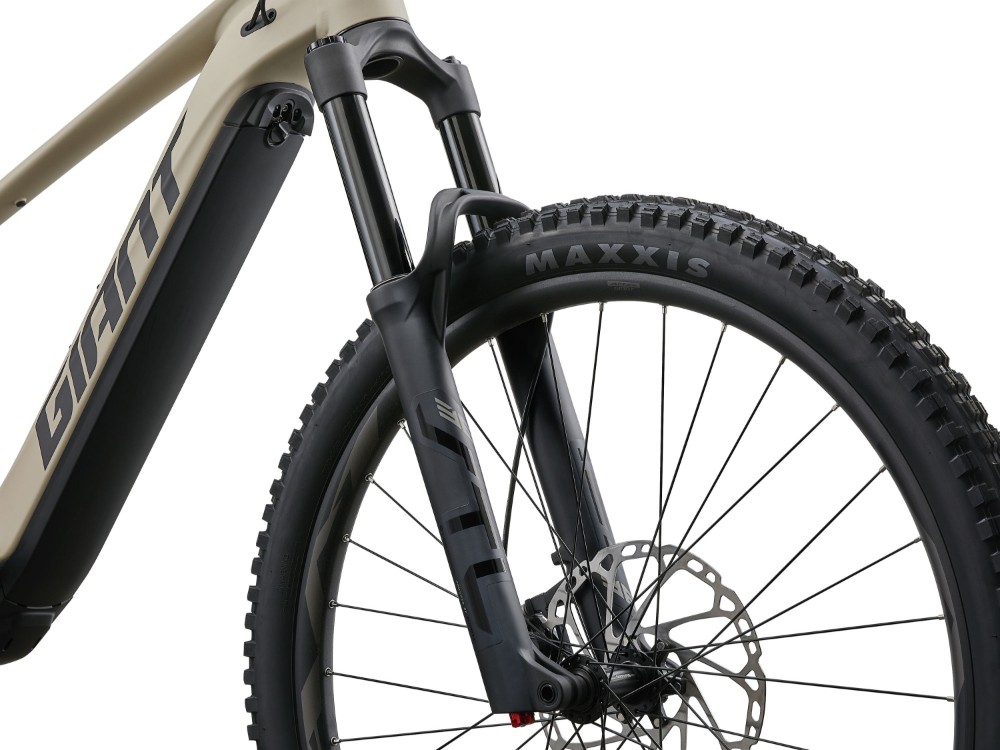

| Fork | Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible |
| Rear Shock | Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm Sag recommendation: 30% (15.75mm) |
| Stem | Giant Contact SL 35 |
| Bars | Giant Connect TR35, 20mm Rise, 35x760mm [S], 35x780mm [M-XL] |
| Front Brake | Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R] |
| Rear Brake | Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R] |
| Front Mech | Shimano Cues LinkGlide, 10-speed, Shadow+ |
| Rear Mech | Shimano Cues LinkGlide |
| Speed | Forged aluminum crank arms |
| Rims | Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R] |
| Front Hub | Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R] |
| Rear Hub | Stainless steel |
| Spokes | Maxxis Minion DHF 29X2.50"" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40"" WT Foldable TLR EXO [R] |
| Front Tyre | Maxxis Minion DHF 29X2.50"" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40"" WT Foldable TLR EXO [R] |
| Rear Tyre | Giant Contact Switch AT travel adjust dropper seatpost (S:110~140mm, M:140~170m, L/XL: 170~200mm) |
| Seat Post | Giant Contact Ergo Trail |
| Bottom Bracket | Shimano LinkGlide |
| Chain | Shimano Cues LinkGlide, 10-speed, 11-48T |
| Pedals | Giant AM30, tubeless ready, 30mm inner width |
| Battery Size (WH) | Giant EnergyPak 800Wh |
| Motor | Giant SyncDrive Pro3X 100Nm, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl Dash 2, full color LCD display |
Giant Stance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| STACK (mm) | 590 | 599 | 608 | 622 |
| REACH (mm) | 405 | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
| STACK (mm) | 599 | 608 | 622 |
| REACH (mm) | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 165 | 170 |
| WHEEL SIZE | 29" | 29" | 29" |
