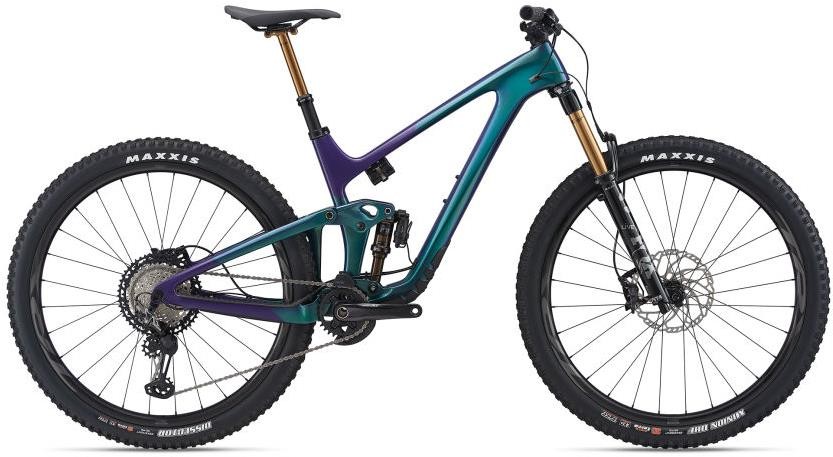

Giant Trance X Advanced Pro 29 0 Mountain Bike 2021 - Trail Full Suspension MTB









Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, the Trance X Advanced Pro 29 0 is a new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.
This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails.
Key Features:
- Full carbon frame with dialled XC MTB geometry
- Fox 36 Factory fork for smooth suspension control
- Shimano XT 12 speed drivetrain for slick shifting
- Shimano XT brakes for confident stopping power
- Sizes: M, L, XL
- Colours: Chrysocolla
- The Giant Trance X Pro 29 0 is available with 0% APR finance

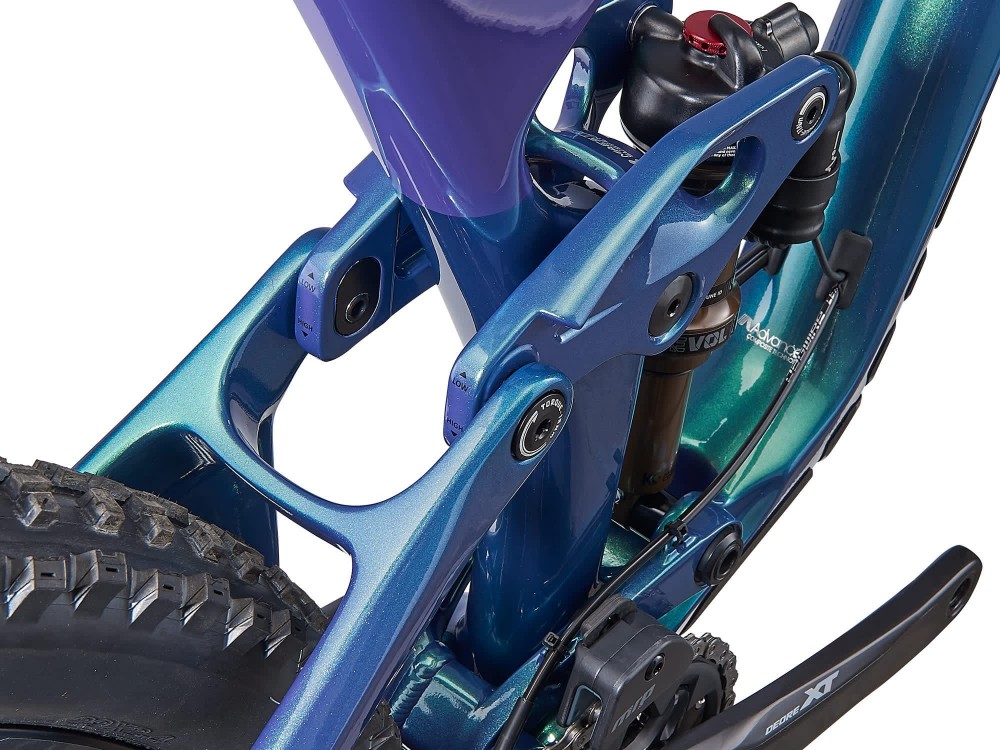

The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it’s all built around 29-inch wheels for added stability on rugged terrain.
29er confidence and control
Optimized Maestro suspension for 29-inch wheels with 135mm rear / 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tyres.
Full Composite Construction
Mainframe and rear swingarm are engineered with proprietary material featuring high-performance carbon fibre and resin. Handcrafted monocoque construction makes it lightweight, stiff and compliant.
Adjustable frame geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip |
Fork | Fox 36 Factory Live Valve, FIT4, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant |
Rear Shock | Fox Float DPX2 Factory Live Valve, 185/55, custom tuned for Giant |
Stem | Giant Contact SL 35 |
Bars | Giant Contact SLR TR35, 780x35mm, 20mm rise |
Front Brake | SHIMANO Deore XT |
Rear Brake | SHIMANO Deore XT |
Brake Lever | Shimano Deore XT |
Rear Mech | Shimano Deore XTR |
Shifters | Shimano Deore XT |
Speed | 12 |
Rims | Giant TRX-1 29 WheelSystem |
Front Hub | Giant TRX-1 29 WheelSystem |
Rear Hub | Giant TRX-1 29 WheelSystem |
Front Tyre | Maxxis Minion DHF 29x2.5, 3C, Max Terra, EXO, TR |
Rear Tyre | Maxxis Dissector 29x2.4, 3C, Max Terra, EXO, TR |
Seat Post | Fox Transfer Factory dropper with Shimano remote, 30.9 |
Saddle | Giant Romero SL |
Chainset | Shimano Deore XT, 30t with MRP AMG V2 Carbon guide |
Bottom Bracket | Shimano, press fit |
Chain | Shimano |
Cassette | Shimano Deore XT, 10x51 |
Pedals | Resin Platform |
Giant Trance 29 & Trance X 29 2021 Size Chart
Inside Leg (Inches) | ||||||||||||
Rider Height (Feet & Inches) | 26” | 27” | 28” | 29” | 30” | 31” | 32” | 33” | 34” | 35” | 36” | 37” |
5’ 4” | S | S | S | |||||||||
5’ 5” | S | S | S | S | S | |||||||
5’ 6” | S | S | S | S | S | |||||||
5’ 7” | S | S | S | S | S | |||||||
5’ 8” | S | S | M | M | M | |||||||
5’ 9” | M | M | M | M | M | |||||||
5’ 10” | M | M | M | M | M | |||||||
5’ 11” | M | M | M | M | M | |||||||
6’ 0” | M | M | L | L | L | |||||||
6’ 1” | L | L | L | L | L | |||||||
6’ 2” | L | L | L | L | L | |||||||
6’ 3” | L | L | L | L | L | |||||||
6’ 4” | L | L | XL | XL | XL | |||||||
6’5” | XL | XL | XL | XL | XL |
What size frame do I need if I am between sizes? - read here
Giant Trance 29 Geometry Chart
|
S |
M |
L |
XL |
SEAT TUBE LENGTH (mm) |
380 |
431 |
464 |
496 |
SEAT TUBE ANGLE |
74.5° |
74.5° |
74.5° |
74.5° |
TOP TUBE LENGTH (mm) |
592 |
612 |
632 |
652 |
HEAD TUBE LENGTH (mm) |
95 |
110 |
110 |
120 |
HEAD TUBE ANGLE |
66.5° |
66.5° |
66.5° |
66.5° |
FORK RAKE (mm) |
44 |
44 |
44 |
44 |
TRAIL (mm) |
116.8 |
116.8 |
116.8 |
116.8 |
WHEELBASE (mm) |
1154 |
1176 |
1196 |
1218 |
CHAIN STAY LENGTH (mm) |
435 |
435 |
435 |
435 |
BOTTOM BRACKET DROP (mm) |
35 |
35 |
35 |
35 |
STACK (mm) |
599 |
613 |
613 |
622 |
REACH (mm) |
426 |
442 |
462 |
480 |
STAND OVER HEIGHT (mm) |
708 |
740 |
761 |
785 |
HANDLEBAR WIDTH (mm) |
780 |
780 |
780 |
780 |
STEM LENGTH (mm) |
40 |
40 |
50 |
60 |
CRANK LENGTH (mm) |
165 |
170 |
170 |
170 |
WHEEL SIZE |
29" |
29" |
29" |
29" |
Giant Trance X 29 Geometry
Size |
S |
M |
L |
XL |
Geo Setting |
LOW | HIGH |
LOW | HIGH |
LOW | HIGH |
LOW | HIGH |
SEAT TUBE LENGTH (mm) |
430 |
430 |
465 |
496 |
SEAT TUBE ANGLE |
77.2° | 77.9° |
77.2° | 77.9° |
77.2° | 77.9° |
77.2° | 77.9° |
TOP TUBE LENGTH (mm) |
566 | 564 |
597 | 595 |
629 | 627 |
656 | 654 |
HEAD TUBE LENGTH (mm) |
95 |
100 |
110 |
120 |
HEAD TUBE ANGLE |
65.5° | 66.2° |
65.5° | 66.2° |
65.5° | 66.2° |
65.5° | 66.2° |
FORK RAKE (mm) |
44 |
44 |
44 |
44 |
TRAIL (mm) |
125.1 | 119.5 |
125.1 | 119.5 |
125.1 | 119.7 |
125.1 | 119.5 |
WHEELBASE (mm) |
1173 | 1171 |
1205 | 1203 |
1239 | 1238 |
1268 | 1266 |
CHAIN STAY LENGTH (mm) |
438 | 435 |
438 | 435 |
438 | 435 |
438 | 435 |
BOTTOM BRACKET DROP (mm) |
40 | 30 |
40 | 30 |
40 | 30 |
40 | 30 |
STACK (mm) |
617 | 611 |
621 | 615 |
631 | 624 |
640 | 634 |
REACH (mm) |
426 | 434 |
456 | 464 |
486 | 494 |
510 | 519 |
STAND OVER HEIGHT (mm) |
734 | 743 |
729 | 738 |
754 | 763 |
777 | 786 |
HANDLEBAR WIDTH (mm) |
800 |
800 |
800 |
800 |
STEM LENGTH (mm) |
40 |
40 |
50 |
50 |
CRANK LENGTH (mm) |
165 |
170 |
170 |
170 |
WHEEL SIZE |
29" |
29" |
29" |
29" |
