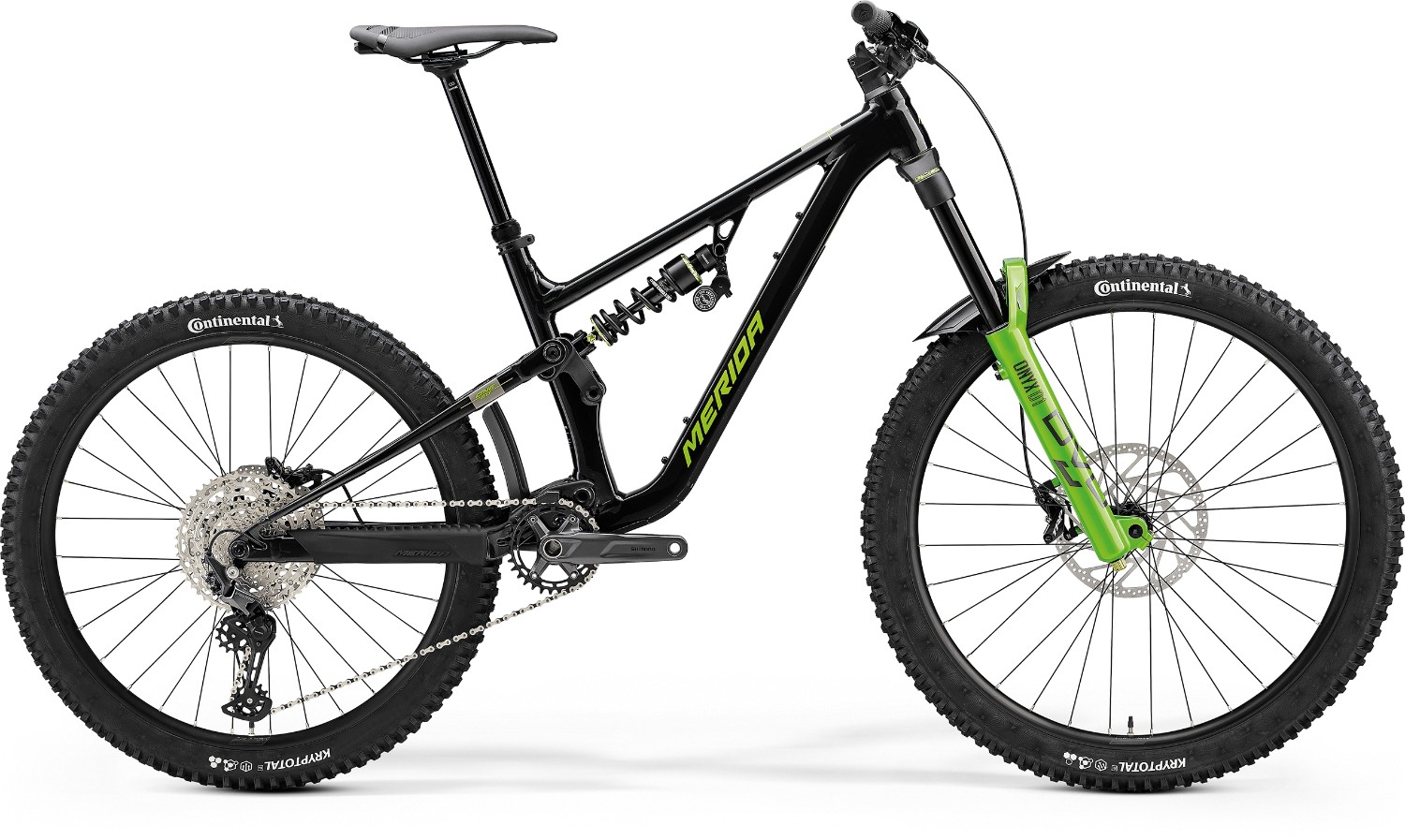

Merida One-Sixty FR 600 Mountain Bike 2025 - Enduro Full Suspension MTB
Shred the Trails in Style
The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year.
Prepare to unleash your inner trail warrior with the Merida One-Sixty FR 600 full-suspension mountain bike. This isn't just any mountain bike; it's a relentless beast ready to conquer the gnarliest terrains and take your riding to new heights. The One-Sixty FR 600 embodies the spirit of adventure, offering 180mm of front travel and 171mm of coil-sprung rear suspension. It's a value-packed ride that's built for sending it on the wildest trails.
Key Features:
- Frame: This rugged frame is designed for maximum durability and comes with Merida's next-generation enduro geometry, internal cable routing, and a long seat post insert depth.
- Fork: The 180mm travel, air-sprung DVO Onyx 38 fork with a tapered steerer and 44mm offset ensures you tackle obstacles with confidence.
- Shock: A DVO Jade X coil shock provides plush rear suspension, keeping you glued to the trail.
- Drivetrain: The Shimano Deore 12-speed drivetrain offers precise shifting and a wide gear range for any terrain.
- Brakes: Reliable stopping power with TRP Trail Evo HD-M843 4-piston calipers and 203mm rotors.
- Wheels: The Merida Expert TR II wheels provide a solid foundation with a 28mm inner rim width, and they're tubeless-ready for enhanced performance.
- Sizing: Agilometer sizing concept helps you customize your ride with a longer or shorter reach frame, independent of your height, for the perfect fit.
- Available with 0% APR Finance: Enjoy the thrill of riding the One-Sixty FR 600 without breaking the bank.
Built for the roughest conditions, the Merida One-Sixty FR 600 is rated to Category 5 and backed by a 5-year frame warranty. It's equipped with a Shimano MT512 chainset, Continental Kryptotal tyres, and a Shimano Deore M6100 12-speed cassette. The expertly designed Merida Comp SL saddle with V-mount adds comfort to your epic journeys. The One-Sixty FR 600 isn't just a bike; it's a gateway to endless adventures. So, gear up and experience the thrill of tackling the trails like never before with this exceptional mountain bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
| Fork | DVO Onyx 38 D2; Air; 180mm travel; tapered; 44mm Offset; 29" |
| Rear Shock | DVO Jade X D2; coil |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes |
| Bars | Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Front Brake | TRP Trail Evo HD-M843 4 piston hydraulic disc brake caliper with TRP RC01E 203mm rotor |
| Rear Brake | TRP Trail Evo HD-M843 4 piston hydraulic disc brake caliper with TRP RC01E 203mm rotor |
| Brake Lever | TRP Trail EVO |
| Rear Mech | Shimano Deore M6100 Shadow+; SGS |
| Shifters | Shimano Deore M6100 |
| Speed | 12 |
| Rims | Merida Expert TR II; 110x15mm; 148x12mm; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-MS-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Continental Kryptotal-F; 29" x 2.4"; Kevlar bead, folding; TR; Enduro casing; Soft Compund |
| Rear Tyre | Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead, folding; TR; Downhill Casing; Soft Compound |
| Seat Post | Merida Team TR; 34.9mm diameter; 0mm lay back; all sizes 30-230mm seat post travel |
| Saddle | Merida Comp SL with V-mount; including Merida minitool |
| Chainset | Shimano MT512; 32 tooth chainset; crank length 170mm all sizes with Merida Expert TR ISCG05 chainguide |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Chain | KMC X12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Pedals | Resin Platform |
Merida One-Sixty FR 2025 Size Chart
|
Frame Size |
Height cm |
Height Feet / Inches |
|
S |
< 173 cm |
<5’8” |
|
M |
167 - 183 cm |
5’6” – 6’0” |
|
L |
177 - 190 cm |
5’10” – 6’3” |
|
XL |
> 187 cm |
>6’2” |
What size frame do I need if I am between sizes? - read here
Merida One-Sixty FR 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 615 | 615 | 615 | 625 | 638 |
| Reach | 415 | 442 | 470 | 498 | 525 |
| Head Tube Length | 95 | 95 | 95 | 105 | 120 |
| Head Tube Angle | 64 | 64 | 64 | 64 | 64 |
| Bottom Bracket Drop | 7 | 7 | 7 | 27.5 | 27.5 |
| Fork Length | 581 | 581 | 581 | 581 | 581 |
| Chainstay Length | 434 | 434 | 434 | 437.5 | 437.5 |
| Wheelbase | 1188 | 1215 | 1242 | 1275 | 1308 |
| Top Tube Length (horizontal) | 535 | 562 | 589 | 621 | 653 |
| Seat Tube Length | 400 | 410 | 425 | 445 | 470 |
| Seat Tube Angle | 79 | 79 | 79 | 79 | 79 |
| Tyre Size | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
