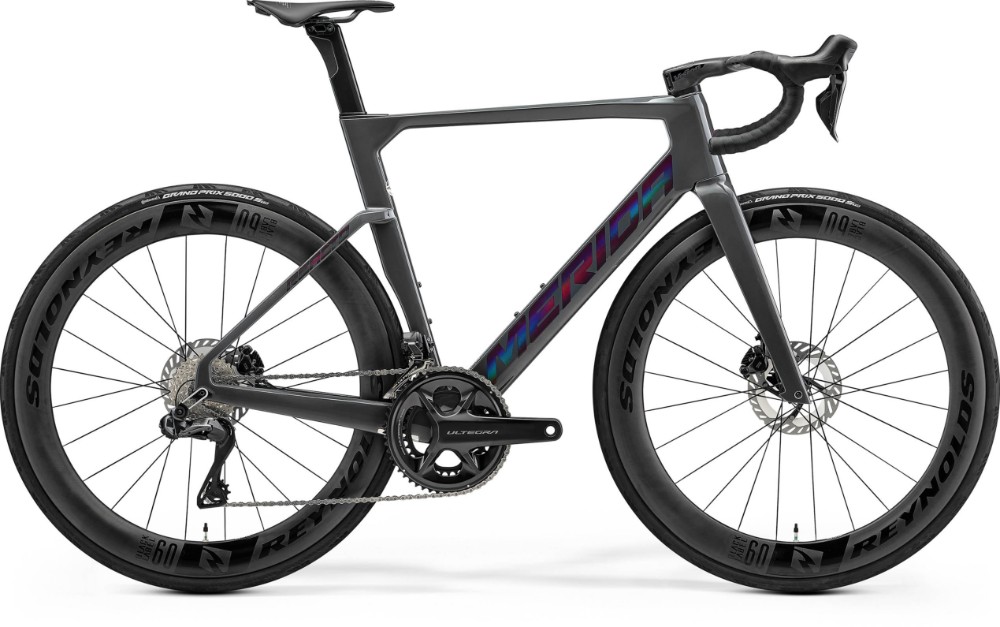

Merida Reacto 9000 2026 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF5 IV - carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
| Fork | Reacto CF5 IV Disc; material: carbon; 700x30C max. tyre size |
| Headset | FSA ACR, SL bearing |
| Stem | Vision Metron 5D ACR EVO; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
| Bars | Vision Metron 5D ACR EVO; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Front Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Rear Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Brake Lever | Shimano Ultegra |
| Front Mech | Shimano Ultegra Di2 |
| Rear Mech | Shimano Ultegra Di2 |
| Shifters | Front: Shimano Ultegra Disc Di2, Rear: Shimano Ultegra Disc Di2 |
| Speed | 24 |
| Rims | Reynolds BL60 Expert DB, 100x12mm; 142x12mm; 21mm inner rim width; 60mm rim depth; Centerlock; Shimano HG; material: carbon; Tubeless ready (tubeless tape and valves included) |
| Front Tyre | Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready |
| Seat Post | Merida Team CW; Aero shape; 15mm layback; material: carbon |
| Saddle | Prologo Nago R4 PAS; Nack |
| Chainset | Shimano Ultegra; 52-36 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB72-41B; Pressfit 86.5 |
| Chain | Shimano M6100-12 |
| Cassette | Shimano Ultegra R8101; 11-30 teeth; 12 speed |
| Pedals | Not Included |
Merida Reacto 2026 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| XXS (47cm) | 153 | 162 | 5'0" | 5'4" |
| XS (50cm) | 162 | 168 | 5'4" | 5'6" |
| S (52cm) | 168 | 175 | 5'6" | 5'9" |
| M (54cm) | 175 | 181 | 5'9" | 5'11" |
| L (56cm) | 181 | 188 | 5'11" | 6'2" |
| XL (59cm) | 188 | 198 | 6'2" | 6'6" |
What size frame do I need if I am between sizes? - read here
Merida Reacto 2026 Geometry Chart
| Size | 3XS | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|
| Stack | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| Reach | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| Head Tube Length | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| Head Tube Angle | 70.5° | 70.5° | 72° | 72.5° | 73.5° | 73.5° | 74° |
| Bottom Bracket Drop | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| Fork Length | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 979 | 985 | 983 | 990 | 990 | 999 | 1010 |
| Top Tube Length (horizontal) | 505 | 520 | 536 | 545 | 560 | 575 | 590 |
| Standover Height | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
| Seat Tube Length | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Seat Tube Angle | 75.5° | 74.5° | 74° | 74° | 73.5° | 73° | 73° |
| Tyre Size | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
