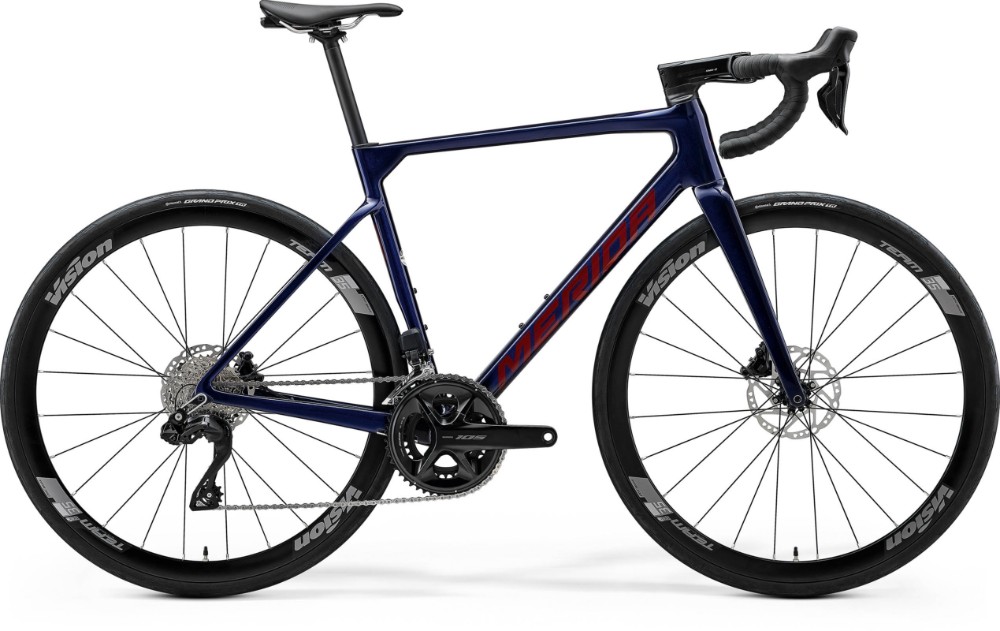

Name: Merida Scultura 5000 2026 - Road Bike
Brand: Merida

The Merida Scultura 5000 combines a lightweight CF3 carbon frame, Shimano 105 Di2 electronic shifting and Vision wheels, delivering a balance of climbing agility, aerodynamic efficiency and ride comfort.

Key Features

CF3 carbon frame with race geometry and internal cable routing
CF3 carbon fork with clearance for 30c tyres
Shimano 105 Di2 12-speed electronic drivetrain
Shimano 105 hydraulic disc brakes, RT64 rotors
Vision Team 35 aluminium wheels with Continental GP tyres
Merida Expert carbon seatpost with integrated mini tool
World Tour proven geometry with aerodynamic updates
Available with 0% APR finance

The Scultura 5000 is a true all-rounder, designed for riders who want a road bike that excels across climbs, descents, and long-distance rides. The CF3 carbon frame uses Merida’s latest generation design, taking aerodynamic cues from the award-winning Reacto aero bike, while keeping the lightweight and compliant ride feel the Scultura is known for. With race geometry refined at the World Tour level, the frame balances sharp handling with comfort, helping you stay fresh for that final sprint or climb.

The CF3 carbon fork complements the frame with precise steering and tyre clearance up to 30c, giving the option to run wider rubber for extra comfort and control. Disc Coolers on the flat-mount brakes reduce heat build-up, ensuring consistent braking performance even on extended descents.

Shimano’s 105 Di2 12-speed groupset brings the benefits of electronic shifting to more riders. Crisp, effortless gear changes at the touch of a button are matched with a 50/34T chainset and wide-range 11-34T cassette, making it as capable on steep climbs as it is on fast group rides. Stopping power comes from Shimano 105 hydraulic disc brakes, paired with RT64 rotors for smooth and reliable control in all conditions.

The build is finished with Vision Team 35 aluminium wheels, offering a mix of low weight and aero efficiency, wrapped in Continental Grand Prix TR 28c tyres that are tubeless ready. A Merida carbon seatpost keeps weight down while improving comfort, and even hides a neatly integrated mini tool for on-the-go adjustments.

The Scultura 5000 sits perfectly between entry-level carbon models and high-end race machines, offering premium features and proven performance at a more accessible level. Whether it’s racing, training, or simply enjoying fast-paced weekend rides, the Scultura 5000 is built to deliver a balanced ride every time.

Occasionally, without notice, manufacturers change product design and/or specifications.

Merida Scultura 2026 Size Chart

FRAME SIZE	HEIGHT (cm)	HEIGHT (ft)
XXS	150 - 158	4'11" - 5'2"
XS	159 - 165	5'3" - 5'5"
S	166 - 173	5'5" - 5'8"
M	174 - 182	5'9" - 5'11"
L	183 - 189	6'0" - 6'2"
XL	190 - 200	6'3" - 6'7"

What size frame do I need if I am between sizes? - read here

Merida Scultura 2026 Geometry Chart

Size	3XS	XXS	XS	S	M	L	XL
Stack	512	517	529	542	557	571	593
Reach	373	377	383	390	395	400	409
Head Tube Length	100	105	112	128	140	155	176
Head Tube Angle	70.5°	70.5°	72°	72.5°	73.5°	73.5°	74°
Bottom Bracket Drop	70	70	70	66	66	66	66
Fork Length	385	385	385	385	385	385	385
Chainstay Length	408	408	408	408	408	408	408
Wheelbase	979	985	982	989	990	1000	1010
Top Tube Length (horizontal)	505	520	535	545	560	575	590
Standover Height	700	721	745	765	782	800	823
Seat Tube Length	400	435	458	481	501	521	550
Seat Tube Angle	75.5°	74.5°	74°	74°	73.5°	73°	73°
Tyre Size	28"	28"	28"	28"	28"	28"	28"

All measurements are in mm unless otherwise stated.

The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.

Frame	CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c
Fork	Scultura CF3 Disc; material: carbon; 700x30C max. tyre size
Headset	FSA ACR
Stem	FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Bars	Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Front Brake	Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Rear Brake	Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Brake Lever	Shimano 105
Front Mech	Shimano 105 Di2
Rear Mech	Shimano 105 Di2
Shifters	Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
Speed	24
Rims	Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm rim depth; material: aluminium; Tubeless tape ready
Front Hub	Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Rear Hub	Part of wheelest - Vision Team 35 Clincher Disc Centerlock
Spokes	Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Front Tyre	Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Rear Tyre	Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Seat Post	Merida Expert SL; 27.2mm diameter; in-line; material: carbon
Saddle	Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool
Chainset	Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket	Shimano SM-BB71-41B; Pressfit 86.5
Chain	Shimano M6100-12
Cassette	Shimano 105 R7101; 11-34 teeth; 12 speed
Pedals	Not Included
