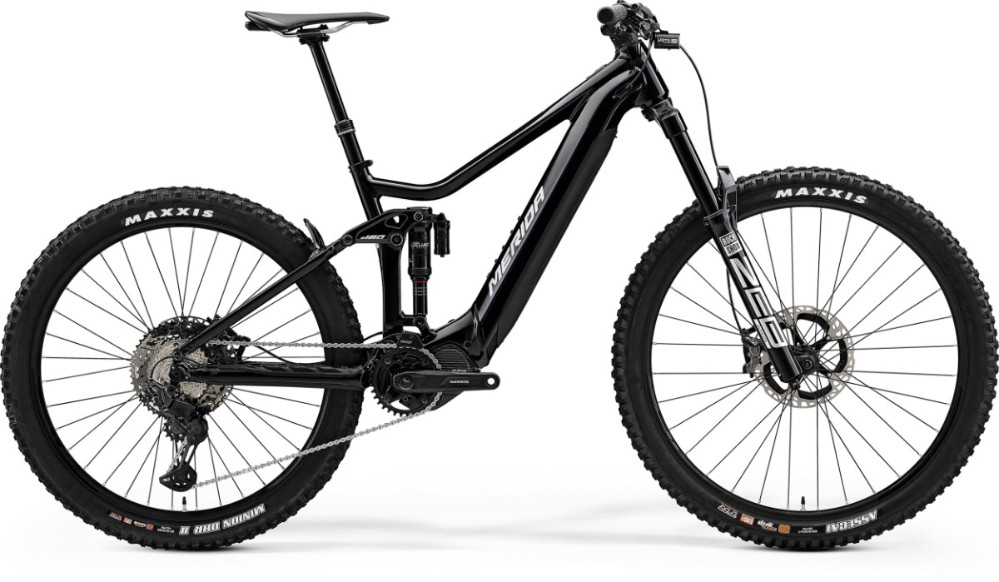

Merida eOne-Sixty 975 SE - Nearly New – M 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | Rock Shox ZEB Ultimate; Air; 160mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.8" |
| Rear Shock | RockShox Super Deluxe Select+ |
| Headset | Merida-8152 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor |
| Rear Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor |
| Brake Lever | Shimano XT |
| Rear Mech | Shimano XT RDM8130 Shadow+ 11 speed |
| Shifters | Shimano XT M8130 and Shimano SL -MT500-IL dropper lever |
| Speed | 11 |
| Rims | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano XT; 110 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Seat Post | Merida Expert TR; 30.9mm diameter; in-line; XS 100mm - S 125mm - M/L 150mm - XL 170mm seat post travel |
| Saddle | Proxim W400 T2.0 with V-mount adapter; including Merida minitool |
| Chainset | Shimano CRE80-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | Shimano LG500 |
| Cassette | Shimano LG700; 10-50 teeth; 11 speed |
| Pedals | VP Components - VPE-527 |
| Battery Size (WH) | Simplo Trend Power Internal Battery Gen 2; 750Wh |
| Motor | Shimano Steps EP801; 85Nm |
| User Interface | Shimano SC-EM800 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
