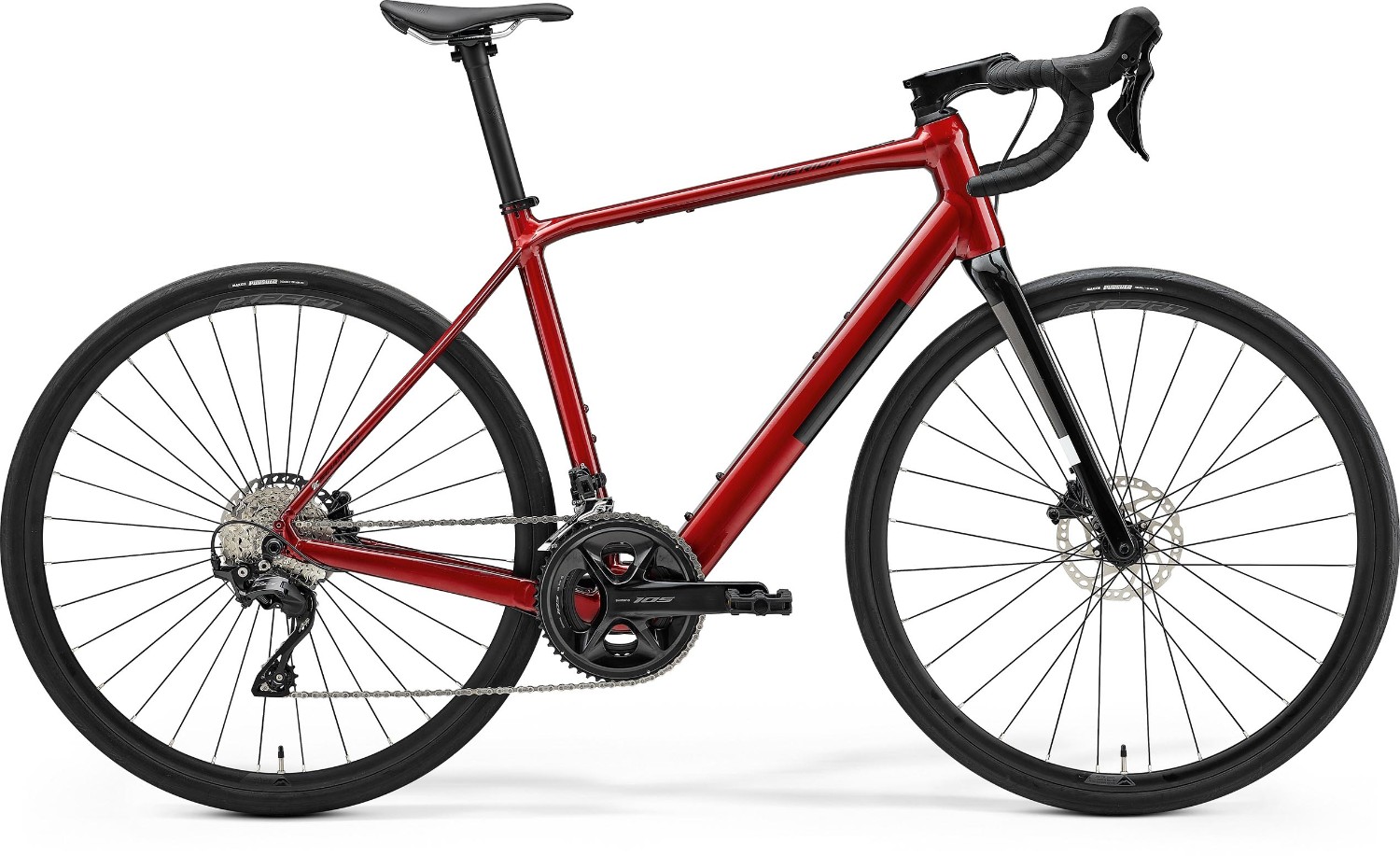

Merida eScultura 400 2025 - Electric Road Bike
The Merida eScultura 400 is a road bike that blends classic drop-bar performance with a modern e-bike assist system, giving you just the right amount of extra support when you need it. It’s built around a hydroformed 6066 aluminium frame, triple-butted for reduced weight and optimised strength. The frame includes smart internal cable routing and discreet mounting points for mudguards and racks, making it just as practical as it is sleek.
Key Features:
- Triple-butted 6066 aluminium frame with internal cable routing
- Carbon fork with clearance for up to 700x42c tyres
- Shimano 105 R7100 2x12-speed drivetrain with compact 52/36 chainset
- Shimano 105 hydraulic disc brakes with 160mm rotors
- 700c Merida Expert SL alloy wheels with 32mm Maxxis Pursuer tyres
- Hidden mounts for mudguards, rack and kickstand
- Available with 0% APR finance
Drive Information:
- Motor: Mahle X30 rear hub motor with 40Nm max torque
- Battery: Integrated 250Wh Mahle iX battery pack
- User Interface: iWoc one-button control with app connectivity
The Merida eScultura 400 is a road bike that blends classic drop-bar performance with a modern e-bike assist system, giving you just the right amount of extra support when you need it. It’s built around a hydroformed 6066 aluminium frame, triple-butted for reduced weight and optimised strength. The frame includes smart internal cable routing and discreet mounting points for mudguards and racks, making it just as practical as it is sleek.
What makes the eScultura stand out is its minimalist Mahle X30 hub motor, delivering a smooth 40Nm of torque. Positioned in the rear hub and powered by a fully integrated 250Wh battery, the system is almost invisible to the eye and adds very little drag when not in use. At under 4kg for the full system, it keeps the overall bike weight impressively low, giving you the same responsive feel as a non-assisted bike.
You control the power levels using a single iWoc button on the top tube, with LED colour indicators and Bluetooth connectivity to the Mahle app for ride tracking and customisation. Whether you’re cruising up hills, keeping pace with faster friends, or saving your legs on a longer commute, the assistance is there when you need it.
Paired with Shimano’s 105 R7100 2x12-speed groupset, you get proven performance and smooth shifting, along with compact gearing (52/36) and a wide-range 11-36T cassette for versatility across the terrain. Braking is handled by Shimano 105 hydraulic discs, with 160mm rotors front and rear for confident stopping in all conditions.
Rolling on Merida Expert SL alloy wheels wrapped in Maxxis Pursuer 700x32c tyres, the bike offers a smooth and stable ride with the option to go wider if needed – the carbon fork clears up to 42c. Comfort is further enhanced by Merida’s own contact points, including the Expert CC seatpost and V-mount saddle.
Whether you’re returning to cycling, chasing a faster commute or looking for a lighter way to enjoy longer road rides, the Merida eScultura 400 is a subtle, efficient and confidence-inspiring e-road bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - Hydroformed 6066 triple butted aluminium, integrated battery, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. |
| Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
| Headset | Merida 8158 |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm (XS), 90mm (S), 100mm (M), 110mm (L/XL) |
| Bars | Merida Expert CW; aluminium; 400mm (XS/S), 420mm (M/L), 440mm (XL) |
| Front Brake | Shimano 105 R7100; 2 piston hydraulic disc brake with Shimano RT64 160mm rotor |
| Rear Brake | Shimano 105 R7100; 2 piston hydraulic disc brake with Shimano RT66 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 R7100 |
| Rear Mech | Shimano 105 R7100; GS |
| Shifters | Shimano 105 |
| Speed | 12 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Pursuer; 700 x 32C; Kevlar bead, folding |
| Rear Tyre | Maxxis Pursuer; 700 x 32C; Kevlar bead, folding |
| Seat Post | Merida Expert CC; aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Expert SL; V-mount; |
| Chainset | Shimano 105; R7100; 52-36 tooth chainset with 170 mm-XS/S/M, 175 mm-L/XL crank |
| Bottom Bracket | Shimano BSA |
| Chain | Shimano M7100 |
| Cassette | Shimano 105; 11-36 teeth; 12 speed |
| Pedals | VP Components - VPE-893 |
| Battery Size (WH) | Mahle ix250Wh Battery Pack |
| Motor | Mahle X30 Hub motor, 40Nm |
Merida eScultura 2025 Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
Merida eScultura 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 565 | 581 | 597 | 613 | 629 |
| Reach | 374 | 384 | 395 | 406 | 416 |
| Head Tube Length | 145 | 160 | 175 | 190 | 205 |
| Head Tube Angle | 69.5° | 70° | 70.5° | 71° | 71.5° |
| Bottom Bracket Drop | 70 | 70 | 70 | 70 | 70 |
| Fork Length | 400 | 400 | 400 | 400 | 400 |
| Chainstay Length | 431 | 431 | 431 | 431 | 431 |
| Wheelbase | 1032 | 1044 | 1055 | 1066 | 1076 |
| Top Tube Length (horizontal) | 525 | 540 | 555 | 570 | 585 |
| Standover Height | 748 | 767 | 785 | 804 | 830 |
| Seat Tube Length | 470 | 490 | 510 | 530 | 560 |
| Seat Tube Angle | 75° | 75° | 75° | 75° | 75° |
| Tyre Size | 28" | 28" | 28" | 28" | 28" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
