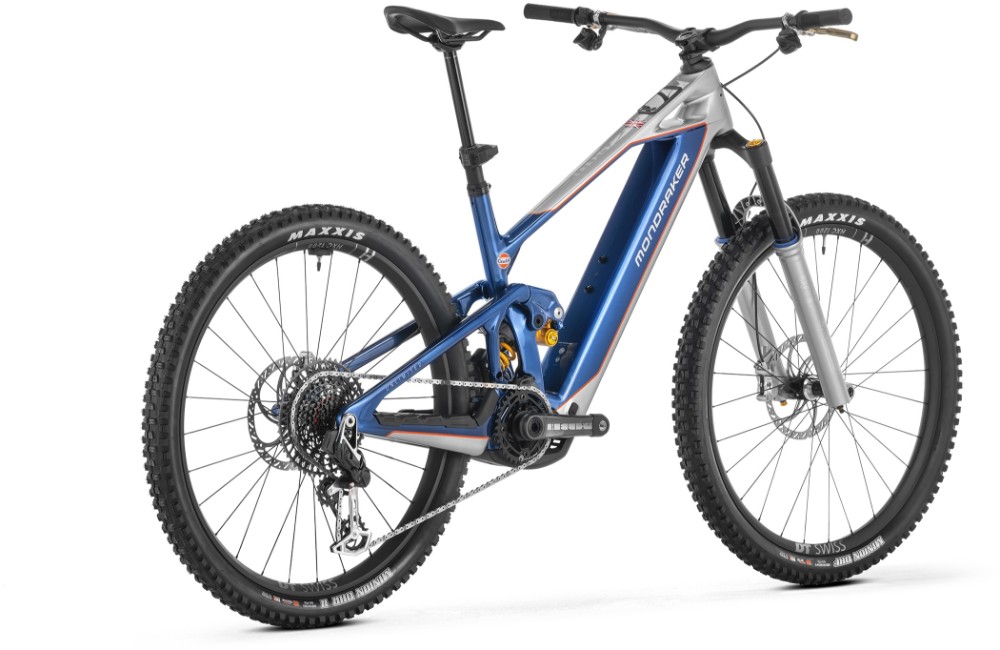

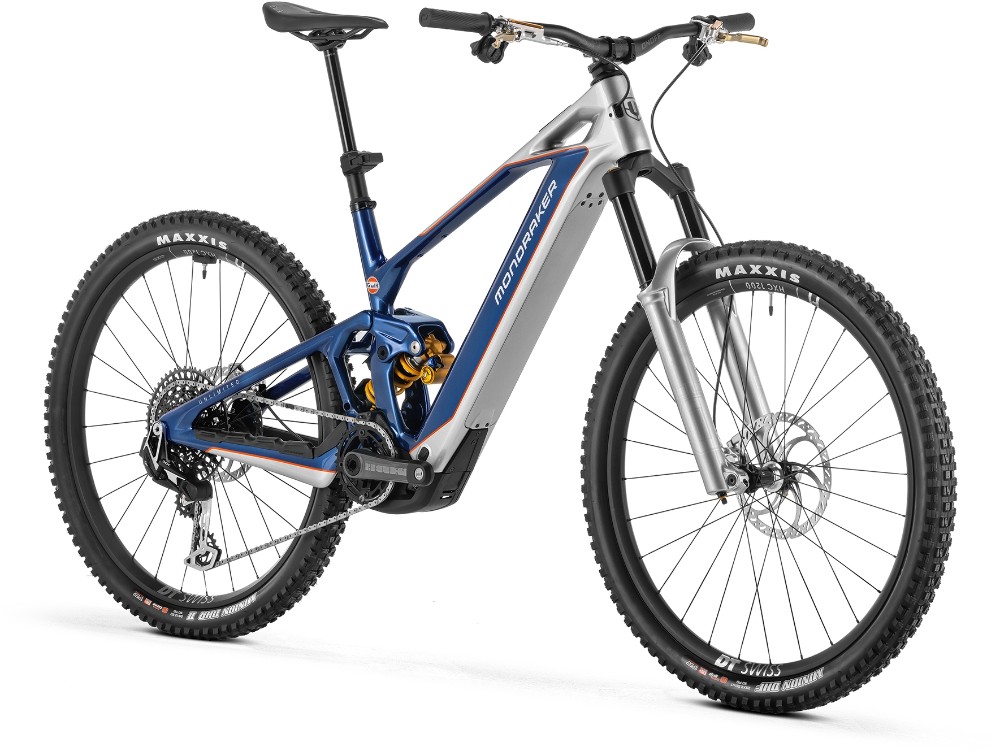

Mondraker Crafty Carbon Gulf Unlimited 2026 - Enduro Full Suspension MTB Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one- piece Monoblock upper link, HHG internal cable routing |

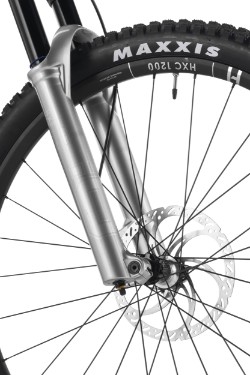

| Fork | Öhlins RXF 38 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low- speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Bars | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise |
| Front Brake | Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor |
| Rear Brake | Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor |
| Brake Lever | Trickstuff Maxima, 7075 T6 CNC alloy, lever pivot bearings, tools-free reach adjust, Kevlar hose |
| Rear Mech | Sram XX Eagle AsXS, T-Type, 12 |
| Shifters | Sram Eagle AXS Pod Rocker, 12s |
| Speed | 12 |
| Rims | DT Swiss HXC 1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes |
| Front Hub | DT 180, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 180, Boost 12x148mm, Ratchet EXP OS 42 system, IS 6 bolts, XD freehub |
| Spokes | DT complite® Hybrid t-head |
| Front Tyre | Maxxis Minion DHF 29x2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 600TPI, folding bead |
| Rear Tyre | Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 600TPI, folding bead |
| Seat Post | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm |
| Saddle | FIZIK Vento Argo 00 Carbon 150mm |
| Chainset | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm |
| Chain | Sram XX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Battery Size (WH) | Bosch PowerTube 800Wh |
| Motor | Bosch Performance Line CX-R(25Km/h) SMART SYSTEM |
| User Interface | Kiox 400 / Bosch Mini Remote |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
