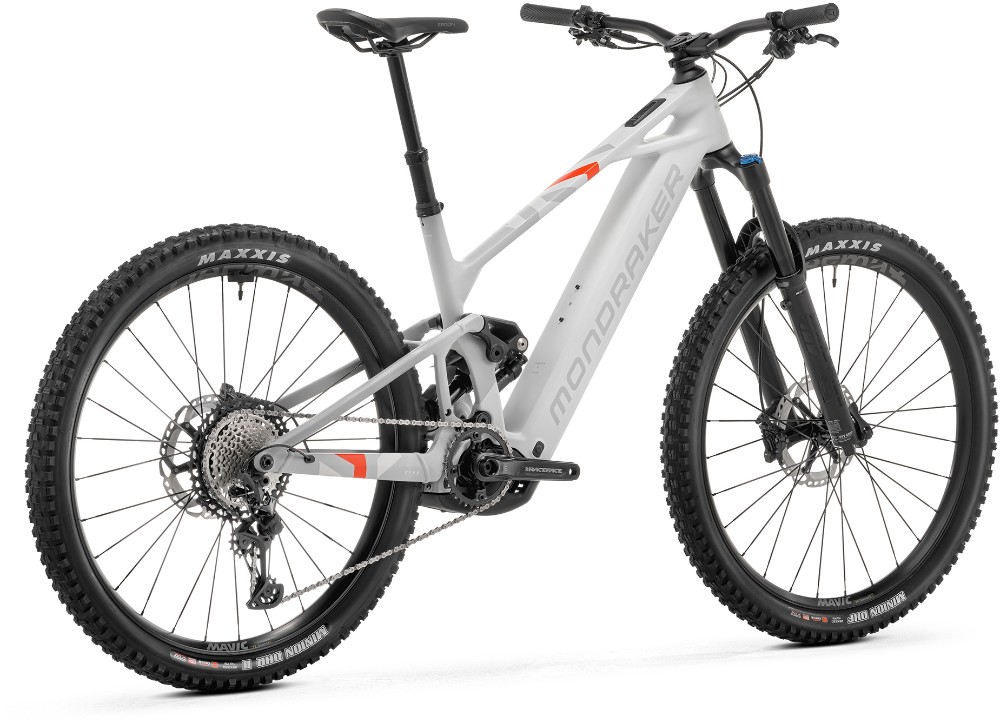

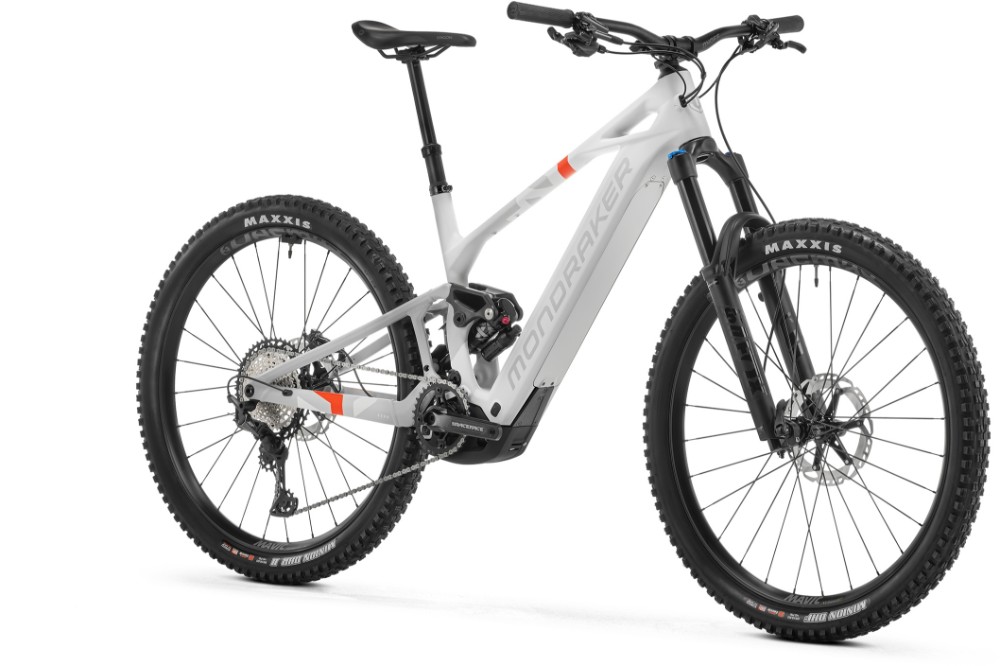

Mondraker Crafty Carbon R 2025 - Electric Mountain Bike
At the heart of the bike is the new Bosch Performance Line CX motor, offering 85Nm of torque and a natural, intuitive power delivery. The redesigned 800Wh Bosch PowerTube battery is fully integrated yet easily removable, delivering exceptional range for big mountain adventures. Hill Hold mode prevents rollbacks on steep climbs, while the updated motor reduces noise and drag for a seamless riding experience.
Key Features:
- Frame: Stealth Air Carbon front, alloy rear, Forward Geometry, 150mm travel
- Fork: Fox 38 Float FIT GRIP Performance, e-bike tuned, 160mm travel
- Rear Shock: Fox Float X LV Performance, 150mm travel, Trunnion mount
- Drivetrain: Shimano XT M8100 1x12-speed, precise shifting
- Brakes: Shimano XT M8120 4-piston hydraulic disc, 203mm rotors
- Wheels: Mavic E-Deemax 29", 30mm width, tubeless-ready
- Tyres: Maxxis Minion DHF/DHR II 29x2.6", EXO+ Protection
- Finance: Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX Gen4, 85Nm torque
- Battery: Bosch PowerTube 800Wh for all-day riding
- User Interface: Bosch Purion 400 with Mini Remote & System Controller
Suspension duties are handled by Fox’s 38 Float Performance fork with 160mm travel and a Fox Float X LV Performance shock, tuned for aggressive riding. The Shimano XT M8100 drivetrain and M8120 4-piston brakes ensure crisp shifting and powerful, reliable braking in all conditions.
Rolling on Mavic E-Deemax 29" wheels, paired with Maxxis Minion DHF and DHR II 2.6" tyres, this bike grips through technical terrain with ease. A dropper post adds extra confidence on descents, and internal cable routing keeps everything sleek and protected.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, oversize 15mm axles |
| Fork | Fox 38 29 Float FIT GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Front Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rear Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Brake Lever | Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust |
| Rear Mech | Shimano XT M8100, SGS, Shadow+ |
| Shifters | Shimano XT M8100, Rapid Fire Plus, 12s |
| Speed | 12 |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon SM-10 |
| Chainset | Race Face Aeffect-R ebike, 160mm. Race Face, 34T, steel, direct mount |
| Chain | Shimano XT M8100, 12s |
| Cassette | Shimano XT M8100 10-51T Hyperglide+, 12s |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube 800Wh |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| User Interface | Purion 400 / Bosch Mini Remote / Bosch System Controller |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
