(no reviews)Product ID: 265100

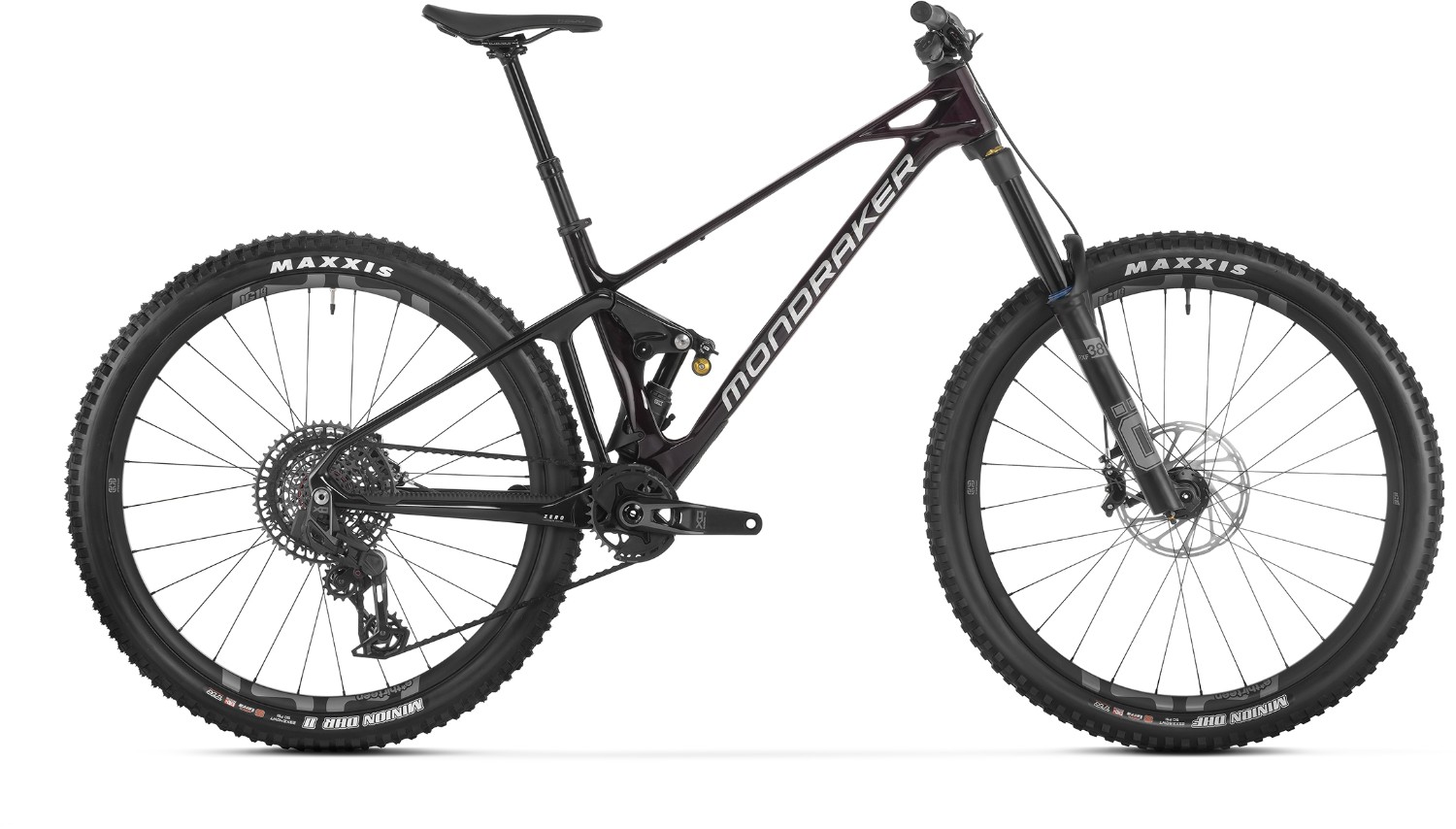

Mondraker Foxy Carbon XR Mountain Bike 2024 - Enduro Full Suspension MTB
If you’re a rider who enjoys going up, but what you really love is the ride back down and that feeling of flow as you rip along the sweetest trails in your area then you’re one of us, and one of our enduro bikes was made for you. We’d bet that you love pushing your limits as far as you can, and when you get to the bottom you can’t help but tell your mates about that berm you railed or that jump that you’d been wanting to send forever and finally launched... then without a doubt you’ve got Mondraker DNA built-in. And we love that. That's why our enduro bikes have FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and some of them even have MIND; technology that lets you set up your suspension like a pro mechanic but without having to be one. And best of all, whichever model you choose, you’ll feel like the luckiest rider on the planet.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing |
| Fork | Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40 |
| Rear Shock | Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Bars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Code Silver Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram Code Silver Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rear Mech | Sram X0 Eagle AXS T-Type, roller bearing clutch, cage lock, 1x12s |
| Shifters | Sram Eagle AXS Pod MMX, 12s |
| Speed | 12 |
| Rims | e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Tyre | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Chainset | Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm CL 55 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm, wide |
| Chain | Sram X0 Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type 12s |
| Pedals | Resin Platform |
Mondraker Foxy Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
