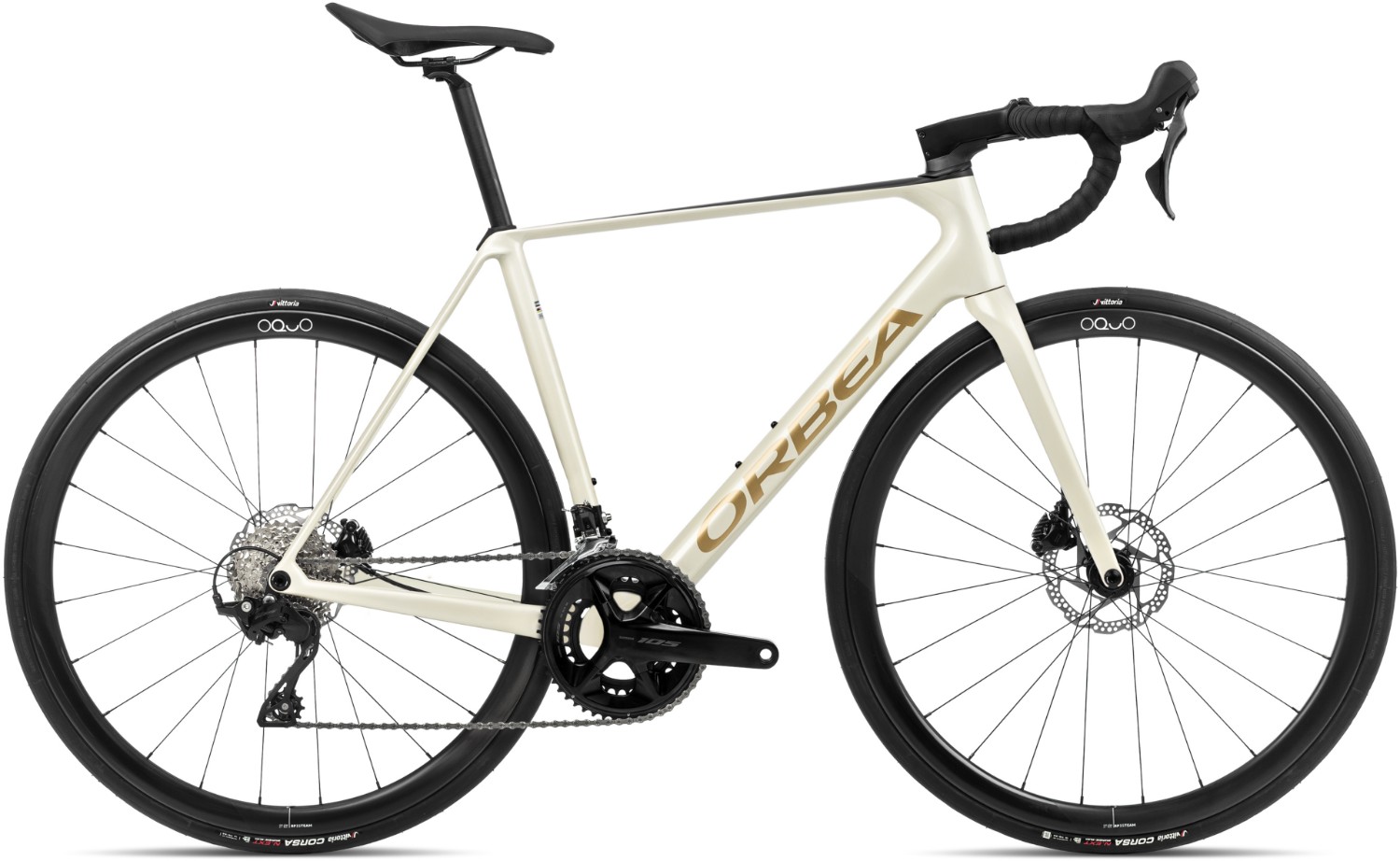

Orbea Orca M35 2024 - Road Bike
The Orbea Orca M35 is designed to maximise your power output. Whether you're conquering steep inclines or carving through descents, this road bike offers unmatched performance, ensuring you enjoy the ride to the fullest. Experience the thrill of climbing like never before with the Orca M35.
Key Features:
- Orbea Orca carbon OMR frame for lightweight climbing
- Orbea Orca OMR ICR full carbon fork for nimble handling
- Shimano 105 R7100 12-speed drivetrain for slick shifting
- Shimano R7170 Hydraulic Disc brakes for reliable stopping power
- OQUO Road Performance Carbon wheels rolling on Vittoria Corsa 28mm tyres
- Available with 0% APR finance
Designed using Orbea's advanced carbon OMR 2024 frame, this road bike ensures exceptional stiffness and responsiveness. The full carbon fork and Shimano 105 R7100 drivetrain further enhance the bike's efficiency, allowing you to accelerate swiftly and tackle steep climbs with ease.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP21, -6º |
| Bars | OC Road Performance RP31, Reach 80, Drop 125 |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Brake Lever | Shimano R7120 |
| Front Mech | Shimano 105 R7100 |
| Rear Mech | Shimano 105 R7100 |
| Shifters | Shimano R7120 |
| Speed | 24 |
| Rims | OQUO Road Performance RP35 TEAM Carbon |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Hollow |
| Front Tyre | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Rear Tyre | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Seat Post | Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chainset | Shimano 105 R7100 34x50t |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Pedals | Resin Platform |
Orbea Orca 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Top Tube Length (horizontal) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Standover Height | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Seat Tube Length | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
