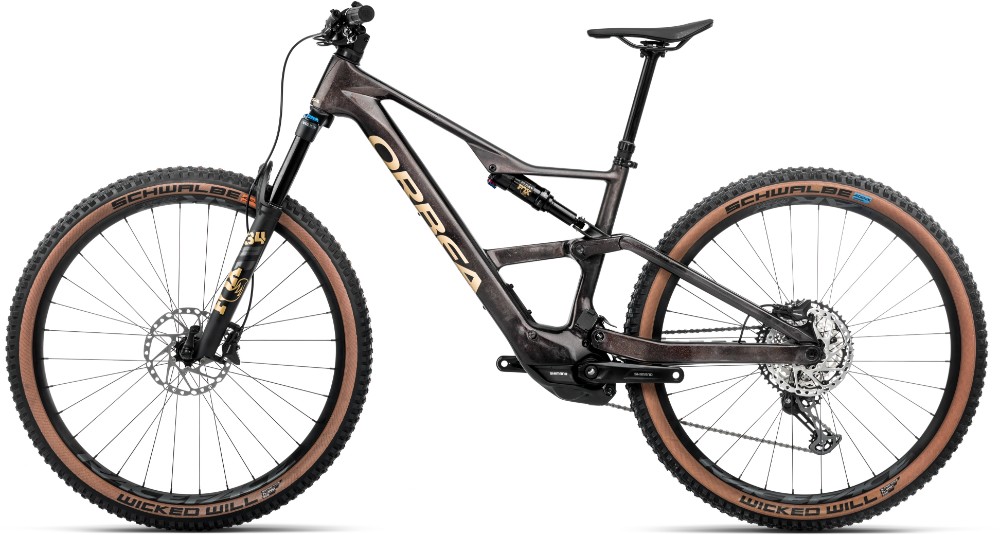

Orbea Rise SL M20 630W 2025 - Electric Mountain Bike
The Orbea Rise SL M20 630Wh pushes the boundaries of what a lightweight e-MTB can do, delivering a ride that’s agile, efficient, and powerful without sacrificing the feel of a traditional trail bike. Built around Orbea’s advanced OMR carbon frame, this version of the Rise uses 140mm of rear travel and 29” wheels to offer fast-rolling, nimble handling across varied terrain.
Key Features:
- Carbon OMR frame with 140mm travel, 29” wheels and Concentric Boost rear axle
- Fox 34 Float Performance fork with 140mm travel and GRIP damper
- Fox Float Performance rear shock, custom-tuned with 140mm travel
- Shimano SLX 12-speed drivetrain with 10-51T wide-range cassette
- Shimano M6100 hydraulic disc brakes, front and rear
- 29” Race Face AR 30c wheels with Schwalbe Wicked Will Evo 2.4" tyres
- OC Mountain Control cockpit, dropper post and Fizik Terra saddle
- Available with 0% APR finance
Drive Information:
- Shimano EP600 motor with RS Gen2 firmware, 85Nm max torque
- Orbea Internal 630Wh battery for extended ride time
- Shimano remote with intuitive control and LED display
Powering your ride is the Shimano EP600 motor, paired with Orbea’s RS Gen2 firmware, which has been fine-tuned to deliver the most natural pedal-assist experience possible. It responds instantly and intuitively to your input, and with 85Nm of torque, there’s no shortage of power when the trail turns steep or technical. The larger 630Wh battery offers increased range, letting you ride further and longer without compromise.
The Fox 34 Float Performance fork with 140mm travel provides a confident front-end feel, backed up by a Fox Float Performance rear shock, custom-tuned for the Rise’s suspension kinematics. The result is a plush yet supportive ride that climbs well and descends with control.
The Shimano SLX drivetrain offers reliable 12-speed shifting, matched with a wide-range 10–51T cassette for tackling varied terrain. Meanwhile, the Shimano M6100 brakes deliver strong and predictable stopping power, keeping you in control when descending at pace.
You’ll roll confidently on Race Face AR 30c tubeless-ready rims paired with Schwalbe Wicked Will 2.4" tyres, offering a great blend of grip and efficiency. The build is rounded out with Orbea’s own OC Mountain Control cockpit, dropper seatpost, and a Fizik Terra Ridon X5 saddle all designed for all-day trail comfort.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Rise OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 34 Float Performance 140 Grip 3-Pos QR15x110 |
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC31, Rise20, Width 800 |
| Front Brake | Shimano M6100 Hydraulic Disc |
| Rear Brake | Shimano M6100 Hydraulic Disc |
| Rear Mech | Shimano SLX M7100 SGS Shadow Plus |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown |
| Rear Tyre | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Terra Ridon X5 145mm |
| Chainset | Shimano Steps EM600 |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Orbea Internal 630Wh |
| Motor | Shimano EP600 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
