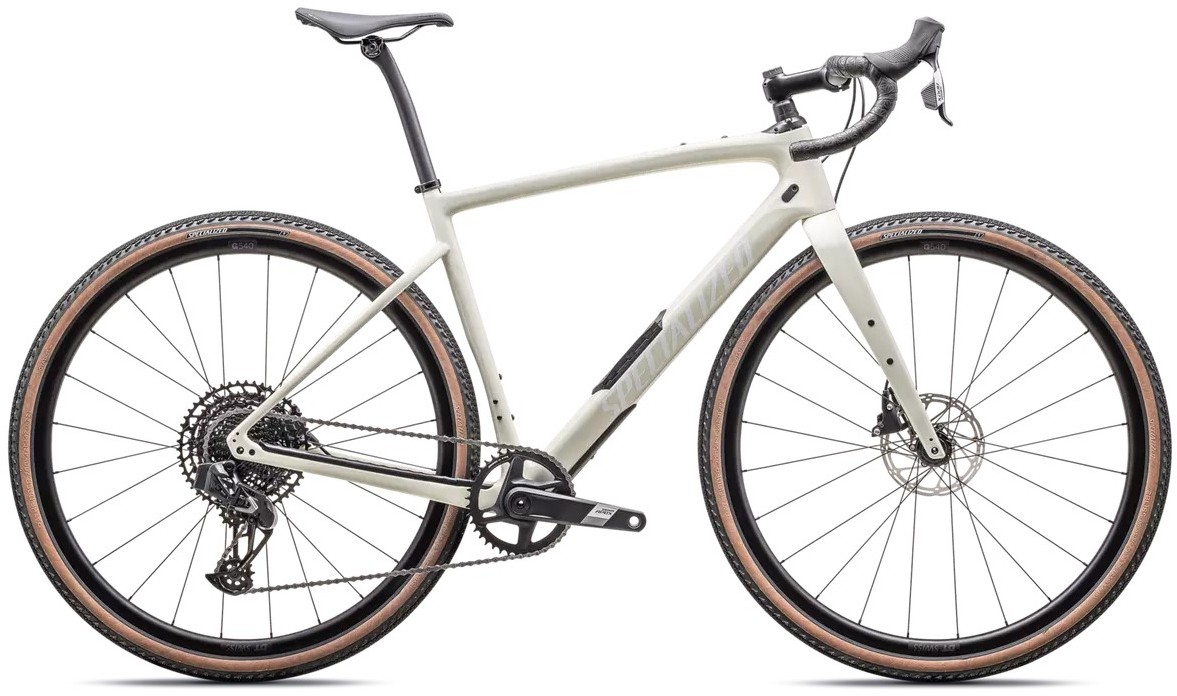

Specialized Diverge Comp Carbon 2025 - Gravel Bike

The Specialized Diverge Comp Carbon is designed to excel across a variety of surfaces. With a lightweight FACT 9r carbon frame, Future Shock 2.0 suspension, and the wireless precision of SRAM Apex eTap AXS, this bike delivers a confident and smooth ride on challenging gravel trails and fast tarmac alike.
Key Features:
- Frame: FACT 9r carbon with Future Shock 2.0, internal routing, 47mm tyre clearance.
- Fork: Future Shock 2.0 with 20mm of axial compliance for smooth, controlled handling.
- Drivetrain: SRAM Apex eTap AXS 12-speed wireless shifting for precision and simplicity.
- Brakes: SRAM Apex hydraulic disc brakes for powerful and reliable stopping.
- Wheels: DT Swiss G540 tubeless-ready wheels for durability and performance.
- Tyres: 700x42c Pathfinder Pro tyres with gravel-optimised tread pattern.
- Standout feature: SWAT™ Door integration for in-frame storage.
- Finance: Available with 0% APR finance.
The Specialized Diverge Comp Carbon is built for adventure, whether you're navigating gravel paths, dirt roads, or long-distance tours. The FACT 9r carbon frame is lightweight yet durable, allowing you to tackle challenging climbs and long-distance rides with ease. With its generous tyre clearance of 47mm on 700c wheels (or up to 2.1” on 650b), the Diverge is ready to take on even the roughest terrain while maintaining stability and control.
The Future Shock 2.0 suspension system offers 20mm of travel, which smooths out the ride by suspending the rider rather than the bike. This allows you to maintain power and control over rough surfaces while reducing fatigue on longer rides. The hydraulic damper is adjustable, so you can fine-tune it for the terrain, whether you're riding smooth tarmac or loose gravel.
SRAM’s Apex eTap AXS wireless drivetrain provides crisp, precise shifting with minimal maintenance. Paired with the wide-range 12-speed cassette (11-50t), the Diverge is equipped for both fast sprints and steep climbs. The DT Swiss G540 wheels and Pathfinder Pro tyres ensure excellent traction and rolling efficiency across all surfaces.
With internal storage via the SWAT™ Door and multiple mounting points for racks and bags, the Diverge Comp Carbon is as practical as it is capable. Whether you're racing gravel, tackling backcountry adventures, or loading up for multi-day trips, this bike offers the versatility and performance to make every ride memorable.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Specialized Diverge FACT 9r carbon, SWATâ„¢ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
| Fork | Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc |
| Stem | Future Stem, Comp |
| Bars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Front Brake | SRAM Apex eTAP AXS, hydraulic disc |
| Rear Brake | SRAM Apex eTAP AXS, hydraulic disc |
| Rear Mech | SRAM X1 Eagle AXS |
| Shifters | SRAM Apex eTap AXS |
| Speed | 12 |
| Rims | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h |
| Front Hub | Specialized full sealed bearing thru axle hub |
| Rear Hub | Specialized full sealed bearing thru axle hub |
| Spokes | DT Swiss Champion 14G stainless steel spokes |
| Front Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
| Rear Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
| Seat Post | Roval Terra Carbon Seat Post, 20mm Offset |
| Saddle | Body Geometry Power Sport, steel rails |
| Chainset | SRAM Apex DUB Wide |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM, NX Eagle, 12-speed |
| Cassette | SRAM PG1210, 12-Speed, 11-50t |
| Pedals | Resin Platform |
| Weight | 9.99kg/22lbs, .4oz |
![]()
Specialized Diverge Carbon 2025 Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
44cm |
142 – 152 |
4’8” – 5’0” |
|
49cm |
152 - 163 |
5'0" - 5'4" |
|
52cm |
163 - 170 |
5'4" - 5'7" |
|
54cm |
170 - 178 |
5'7 - 5'10" |
|
56cm |
175 - 180 |
5'9" - 6'0" |
|
58cm |
180 - 188 |
5'11" - 6'2" |
|
61cm |
188 - 196 |
6'2" - 6'5" |
|
64cm |
196 – 205 |
6’5” – 6’9” |
What size frame do I need if I am between sizes? - read here
Specialized Diverge Carbon 2025 Geometry Chart
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 571mm | 577mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm |
| Head Tube Length | 99mm | 104mm | 116mm | 133mm | 159mm | 185mm |
| Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° |
| BB Height | 270mm | 270mm | 270mm | 270mm | 270mm | 270mm |
| BB Drop | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Trail | 69mm | 66mm | 61mm | 57mm | 57mm | 57mm |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
