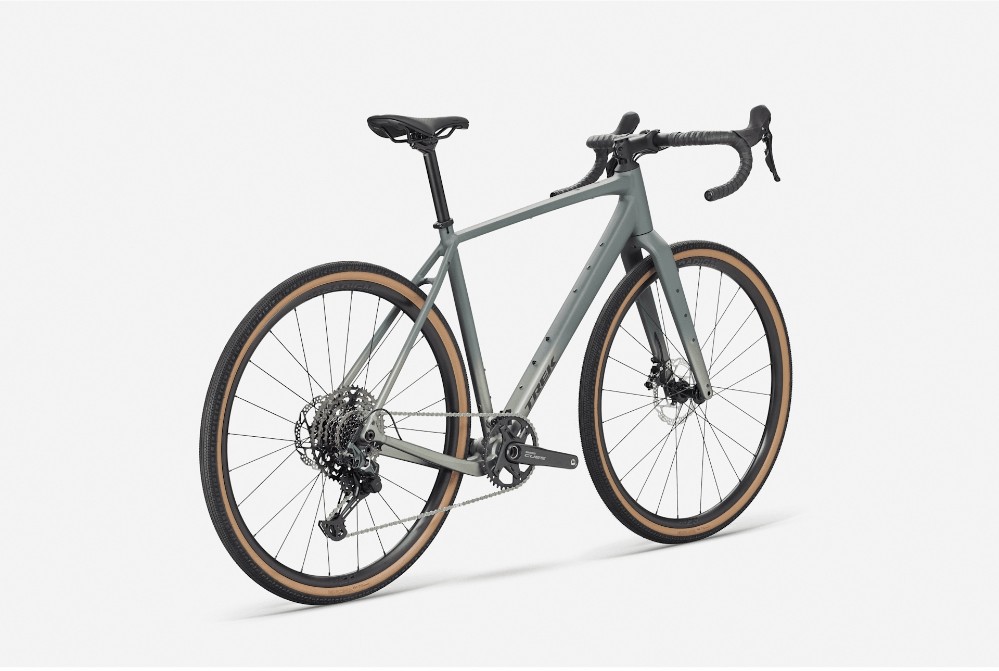

Trek Checkpoint ALR 4 Gen 3 2026 - Gravel Bike
The Trek Checkpoint ALR 4 Gen 3 blends comfort, control and versatility. Its durable alloy frame, wide gear range and stable geometry make it perfect for gravel adventures, weekend touring or everyday exploration.
Key Features:
- 300 Series Alpha Aluminium frame, endurance geometry, 50 mm tyre clearance, rack & bag mounts
- Full-carbon fork with tapered steerer for smooth, precise handling
- Shimano CUES U6030 / U8000 11-speed drivetrain
- Shimano CUES hydraulic disc brakes, flat mount
- Bontrager Paradigm 23 Tubeless Ready wheelset
- Bontrager Girona Pro 700×42 mm tyres with puncture protection
- Multiple mounts for bags, racks and mudguards
- Available with 0% APR finance
The Trek Checkpoint ALR 4 Gen 3 is made for riders who want one bike that can take on anything — from daily commutes and fitness rides to gravel routes and light touring. Its 300 Series Alpha Aluminium frame is strong yet lightweight, with internally routed cables for clean lines and protection from dirt. Trek’s modern endurance geometry delivers a stable, confident ride feel on loose gravel and broken roads while keeping comfort high on long days out.
The frame offers clearance for up to 50 mm tyres, giving you freedom to fine-tune grip and comfort for every surface. Integrated rack, mudguard and frame-bag mounts make it easy to turn the Checkpoint into a capable adventure companion for commuting, bikepacking or weekend escapes.

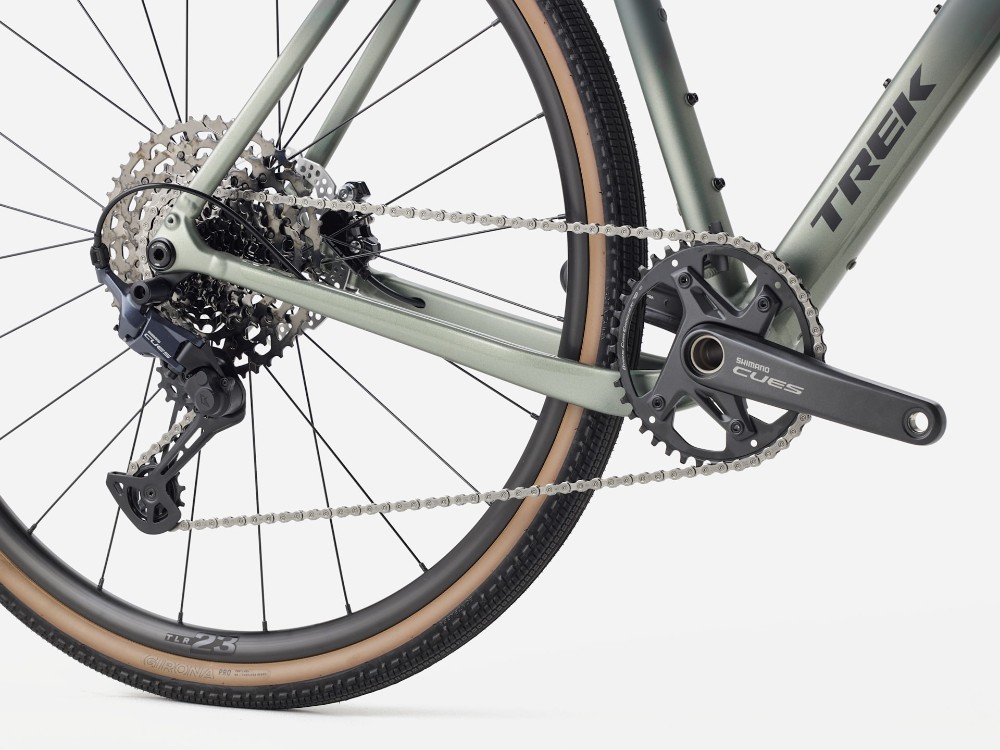

Up front, the full-carbon fork helps smooth out rough terrain and reduces weight while maintaining precise steering. The Shimano CUES U6030 shifters and U8000 rear mech deliver smooth, reliable 11-speed shifting, paired with a 40-tooth chainring and a wide-range 11-50 t cassette for confident climbing and steady cruising.
Braking is handled by Shimano CUES hydraulic discs, giving controlled stopping power in all weather conditions. Rolling on Bontrager Paradigm 23 Tubeless Ready wheels and Girona Pro 700×42 mm tyres, the Checkpoint balances fast rolling with dependable grip thanks to GR puncture protection and an aramid bead construction.
Every detail is built for real-world riding — from the Blendr-compatible Bontrager Elite stem for easy light or computer setup to the comfortable Verse Short Comp saddle designed for endurance comfort. At around 10.4 kg, it’s light enough for long climbs yet tough enough to handle rough tracks and loaded rides.
Whether you’re discovering local gravel routes, heading out for an all-day adventure or tackling a multi-day trip, the Checkpoint ALR 4 Gen 3 is a confident, capable and endlessly adaptable choice for riders who love to explore.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree |
| Bars | Bontrager Elite Gravel, alloy |
| Front Brake | Shimano CUES hydraulic disc, flat mount // Shimano CUES U3030, 9-speed |
| Rear Brake | Shimano CUES hydraulic disc, flat mount // Shimano CUES U3030, 9-speed |
| Rear Mech | Shimano CUES U8000 GS |
| Shifters | Shimano CUES U6030, 11-speed |
| Speed | 11 |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Front Hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Front Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Rear Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Seat Post | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | Shimano CUES FCU60301 , 40T ring |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Chain | Shimano LG500 |
| Cassette | Shimano CUES LG700, LINKGLIDE, 11-50, 11 speed |
| Weight | 10.40 kg |
Trek Checkpoint Gen 3 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (49cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (49-52cm) | 158 - 164 cm | 5'2" - 5'5" | 74 - 77 cm | 29" - 30" |
| M (52-54cm) | 164 - 177 cm | 5'5" - 5'10" | 77 - 83 cm | 30" - 33" |
| ML (56cm) | 177 - 188 cm | 5'10" - 6'2" | 83 - 88 cm | 33" - 35" |
| L (58cm) | 188 - 194 cm | 6'2" - 6'4" | 88 - 91 cm | 35" - 36" |
| XL (61cm) | 194 - 203 cm | 6'4" - 6'8" | 91 - 95 cm | 36" - 37" |
What size frame do I need if I am between sizes? - read here
Trek Checkpoint Gen 3 Geometry Chart
| Size | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Stack | 535 | 556 | 579 | 601 | 620 | 640 |
| Reach | 380 | 386 | 391 | 397 | 402 | 408 |
| Head Tube Length | 86 | 106 | 130 | 151 | 171 | 191 |
| Head Tube Angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| Bottom Bracket Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Trail | 71 | 68 | 68 | 64 | 64 | 62 |
| Fork Rake/Offset | 49 | 49 | 49 | 49 | 49 | 49 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1011 | 1022 | 1034 | 1042 | 1052 | 1062 |
| Top Tube Length (horizontal) | 536 | 547 | 566 | 578 | 589 | 601 |
| Standover Height | 746 | 772 | 799 | 813 | 837 | 861 |
| Seat Tube Length | 445 | 480 | 505 | 530 | 550 | 575 |
| Seat Tube Angle | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective Seat Tube Angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
