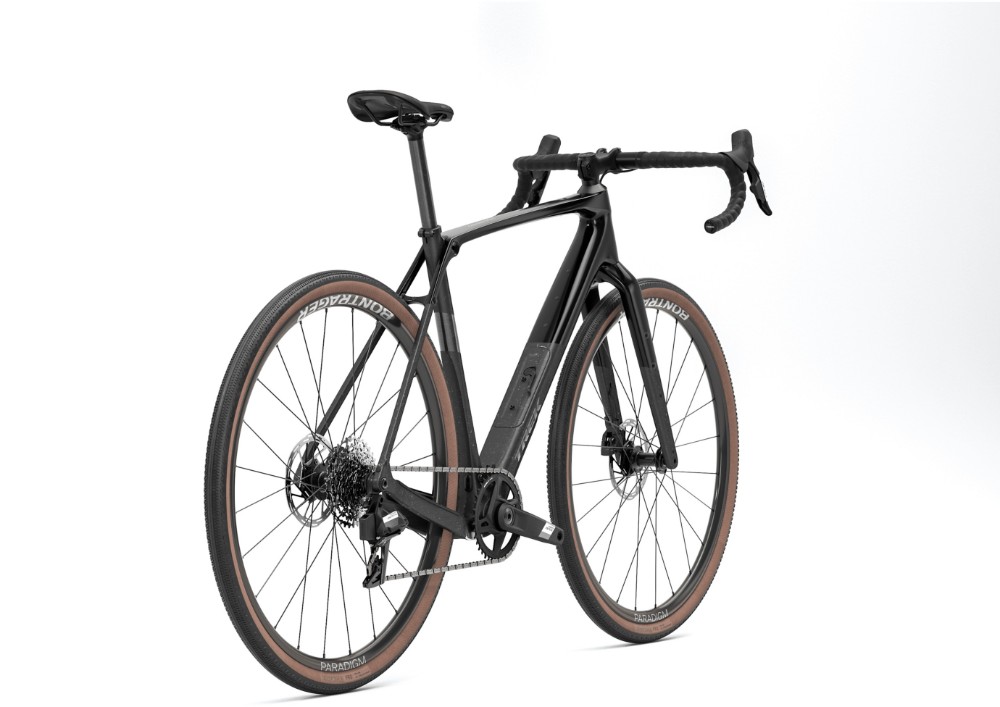

Trek Checkpoint SL 5 AXS Gen 3 2025 - Gravel Bike
The Checkpoint SL 5 AXS Gen 3 is a carbon gravel bike designed for big mileage, rough roads and remote adventures, with IsoSpeed frame compliance, wireless SRAM Apex 12-speed shifting and frame mounts ready for gear.
Key Features
- 500 Series OCLV Carbon frame, IsoSpeed, downtube storage, 50 mm tyre clearance, endurance geometry
- Full carbon fork with tapered steerer and triple accessory mounts
- SRAM Apex XPLR AXS 12-speed wireless electronic drivetrain
- SRAM Apex hydraulic disc brakes, flat mount
- Bontrager Paradigm SL Tubeless Ready wheels
- 700x42 mm Bontrager Girona RSL tyres with GR tread and puncture protection
- Internal cable routing, rack, mudguard, and frame bag mounts
- Available with 0% APR finance
The Checkpoint SL 5 AXS Gen 3 is a true go-anywhere, do-everything gravel bike built with comfort and capability in mind. Its 500 Series OCLV Carbon frame keeps things lightweight and stiff, while Trek’s Gravel Endurance geometry balances stability and responsiveness—ideal for big days out and rougher routes.
This generation includes IsoSpeed rear decoupler technology, which isolates road vibration and trail chatter, giving your body a break over long distances. There’s also clearance for up to 50 mm tyres, giving you the option to upsize for softer terrain or more comfort on unpredictable tracks.
Shifting comes courtesy of the SRAM Apex XPLR AXS drivetrain, offering 12-speed wireless performance with a clean, cable-free setup. The 1x drivetrain is simple and reliable, pairing a 40T chainring with an 11–44T cassette for climbing-ready range without the hassle of a front mech.
Rolling on Bontrager Paradigm SL wheels, the Checkpoint comes tubeless-ready as standard and is equipped with 700x42 mm Bontrager Girona RSL tyres, tuned for traction, speed and puncture protection thanks to their GR tread and reinforced casing.
Designed for loading up and heading off, the frame features internal downtube storage, rack and mudguard mounts, plus dedicated mounts for frame bags. The Bontrager carbon seatpost, Elite Gravel bars, and upright position make this bike as comfortable as it is capable.
Whether you're tackling your first gravel race, loading up for a bikepacking trip, or simply exploring the quietest roads on the map, the Checkpoint SL 5 AXS has the tech, comfort and rugged reliability to get you there and back again.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
| Fork | Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle |

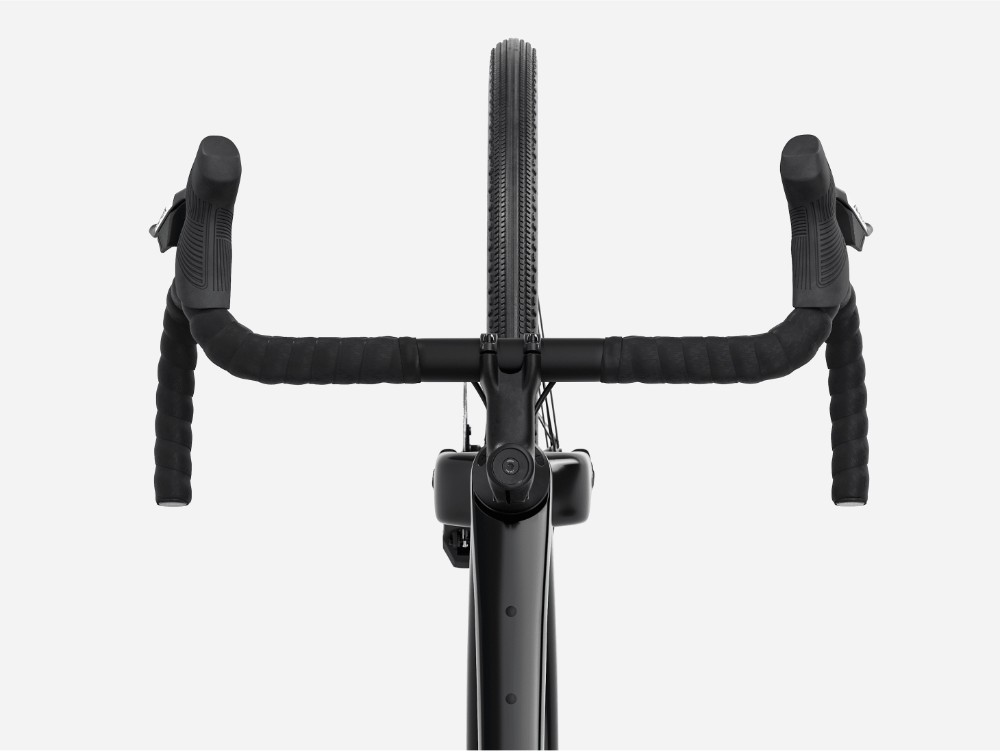

| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Bars | Bontrager Elite Gravel, alloy, 44 cm width |
| Rear Mech | SRAM Apex XPLR eTap AXS, 44T max cog |
| Speed | 12 |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Front Hub | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Front Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Rear Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Seat Post | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Chain | SRAM Apex, 12-speed |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
Trek Checkpoint Gen 3 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (49cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (49-52cm) | 158 - 164 cm | 5'2" - 5'5" | 74 - 77 cm | 29" - 30" |
| M (52-54cm) | 164 - 177 cm | 5'5" - 5'10" | 77 - 83 cm | 30" - 33" |
| ML (56cm) | 177 - 188 cm | 5'10" - 6'2" | 83 - 88 cm | 33" - 35" |
| L (58cm) | 188 - 194 cm | 6'2" - 6'4" | 88 - 91 cm | 35" - 36" |
| XL (61cm) | 194 - 203 cm | 6'4" - 6'8" | 91 - 95 cm | 36" - 37" |
What size frame do I need if I am between sizes? - read here
Trek Checkpoint Gen 3 Geometry Chart
| Size | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Stack | 535 | 556 | 579 | 601 | 620 | 640 |
| Reach | 380 | 386 | 391 | 397 | 402 | 408 |
| Head Tube Length | 86 | 106 | 130 | 151 | 171 | 191 |
| Head Tube Angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| Bottom Bracket Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Trail | 71 | 68 | 68 | 64 | 64 | 62 |
| Fork Rake/Offset | 49 | 49 | 49 | 49 | 49 | 49 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1011 | 1022 | 1034 | 1042 | 1052 | 1062 |
| Top Tube Length (horizontal) | 536 | 547 | 566 | 578 | 589 | 601 |
| Standover Height | 746 | 772 | 799 | 813 | 837 | 861 |
| Seat Tube Length | 445 | 480 | 505 | 530 | 550 | 575 |
| Seat Tube Angle | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective Seat Tube Angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
