Trek Checkpoint SL 7 AXS Gen 3 2026 - Gravel Bike

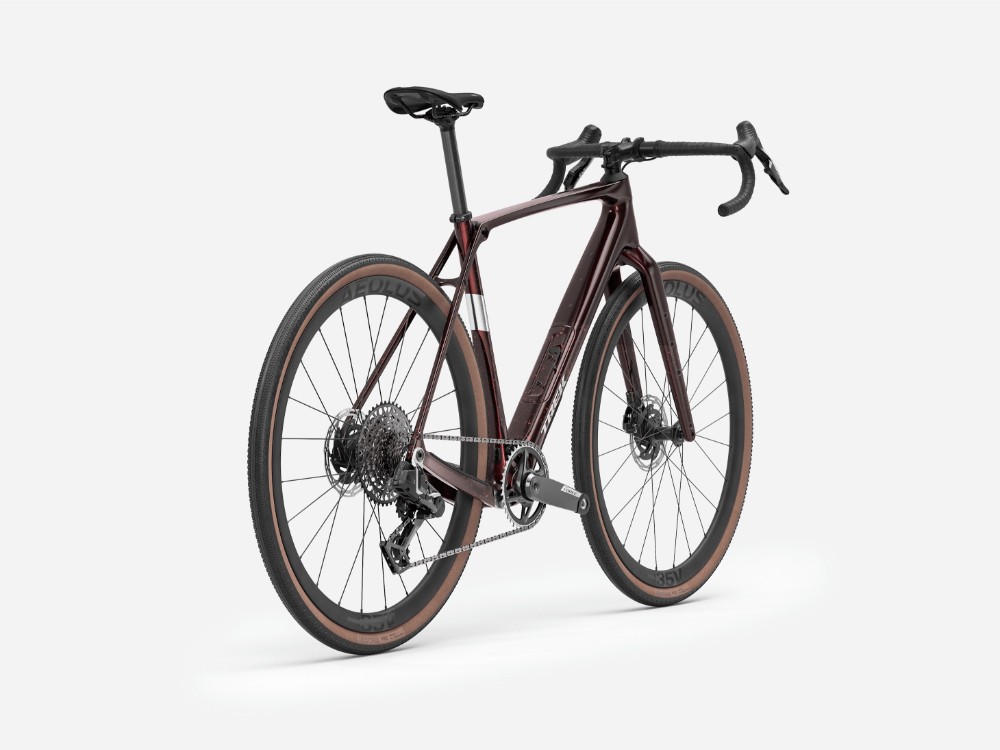

The Trek Checkpoint SL 7 AXS Gen 3 is a premium gravel bike that delivers speed, versatility, and day-long comfort in one expertly engineered package. At its heart is Trek’s 500 Series OCLV Carbon frame, paired with IsoSpeed decoupler tech at the rear to soak up trail chatter and surface vibration, ideal when your rides stretch into the wild beyond.
Key Features:
- 500 Series OCLV Carbon frame with IsoSpeed, Endurance geo & 50 mm tyre clearance
- Carbon fork with rack and cage mounts, internal cable routing
- SRAM Force XPLR AXS 13-speed wireless electronic drivetrain
- SRAM Force hydraulic disc brakes with flat mount callipers
- Bontrager Aeolus Elite 35V carbon wheels, 35 mm depth
- Bontrager Girona Pro 700x42 mm gravel tyres with GR tread
- Internal frame storage, mounts for racks, mudguards & gear
- Available with 0% APR finance
Designed around Trek’s Gravel Endurance geometry, the bike strikes a relaxed yet responsive riding position that’s efficient on tarmac and stable on looser, unpredictable terrain. Generous tyre clearance for up to 50 mm (measured) gives you freedom to run wider rubber for better grip and comfort.

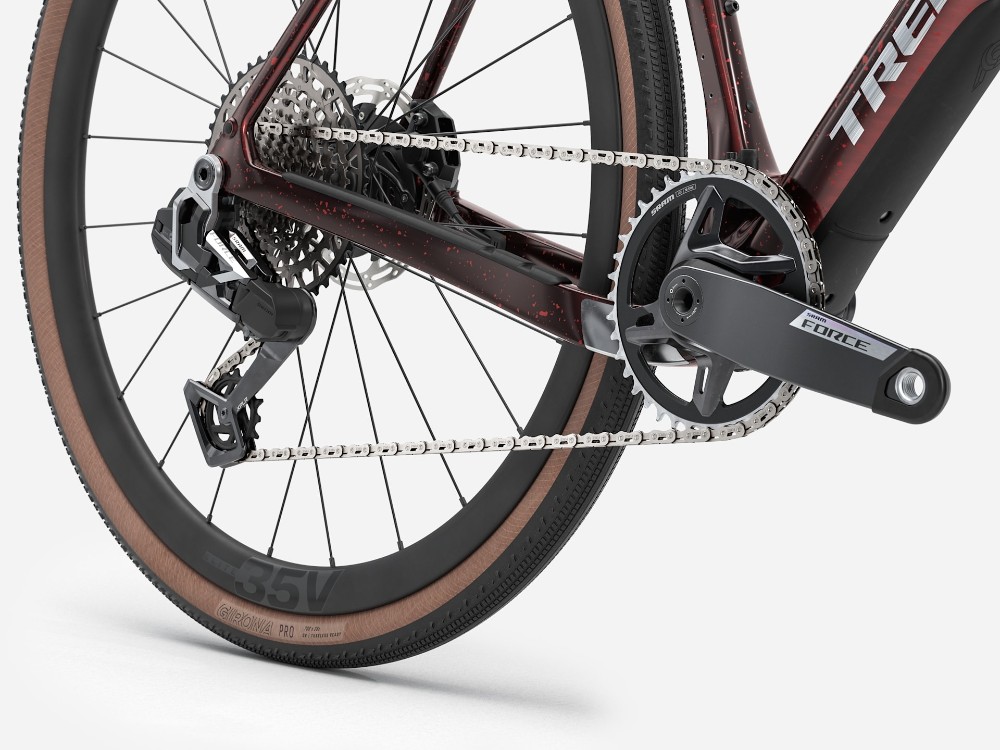

The bike is kitted out with SRAM’s Force XPLR AXS groupset—a fully wireless, 13-speed drivetrain purpose-built for gravel riding. Shifts are clean, consistent, and delivered without cables. The wide-range 10-46T cassette offers low climbing gears without compromising top-end speed, and the Force hydraulic disc brakes give you confident stopping in any weather.
You also get a set of Bontrager Aeolus Elite 35V carbon wheels—light, strong, and tubeless-ready for reduced pressure and puncture resistance. These come wrapped in Bontrager Girona Pro 700x42 mm tyres with Gravel Ready tread and GR puncture protection. They're ideal for mixed terrain and long-distance comfort.
For adventure seekers, this bike is ready to haul. It includes internal downtube storage, mudguard and rack mounts, fork leg mounts, and an integrated chain keeper. Every detail has been considered for multi-day bikepacking missions and exploratory loops.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree |
| Bars | Bontrager Pro Gravel |
| Rear Mech | SRAM Force XPLR AXS, 46T max cog |
| Speed | 13 |
| Rims | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth |
| Front Hub | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Rear Hub | SRAM XD-R driver, 142x12 mm thru axle |
| Front Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Rear Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Seat Post | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
Trek Checkpoint Gen 3 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (49cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (49-52cm) | 158 - 164 cm | 5'2" - 5'5" | 74 - 77 cm | 29" - 30" |
| M (52-54cm) | 164 - 177 cm | 5'5" - 5'10" | 77 - 83 cm | 30" - 33" |
| ML (56cm) | 177 - 188 cm | 5'10" - 6'2" | 83 - 88 cm | 33" - 35" |
| L (58cm) | 188 - 194 cm | 6'2" - 6'4" | 88 - 91 cm | 35" - 36" |
| XL (61cm) | 194 - 203 cm | 6'4" - 6'8" | 91 - 95 cm | 36" - 37" |
What size frame do I need if I am between sizes? - read here
Trek Checkpoint Gen 3 Geometry Chart
| Size | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Stack | 535 | 556 | 579 | 601 | 620 | 640 |
| Reach | 380 | 386 | 391 | 397 | 402 | 408 |
| Head Tube Length | 86 | 106 | 130 | 151 | 171 | 191 |
| Head Tube Angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| Bottom Bracket Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Trail | 71 | 68 | 68 | 64 | 64 | 62 |
| Fork Rake/Offset | 49 | 49 | 49 | 49 | 49 | 49 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1011 | 1022 | 1034 | 1042 | 1052 | 1062 |
| Top Tube Length (horizontal) | 536 | 547 | 566 | 578 | 589 | 601 |
| Standover Height | 746 | 772 | 799 | 813 | 837 | 861 |
| Seat Tube Length | 445 | 480 | 505 | 530 | 550 | 575 |
| Seat Tube Angle | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective Seat Tube Angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
