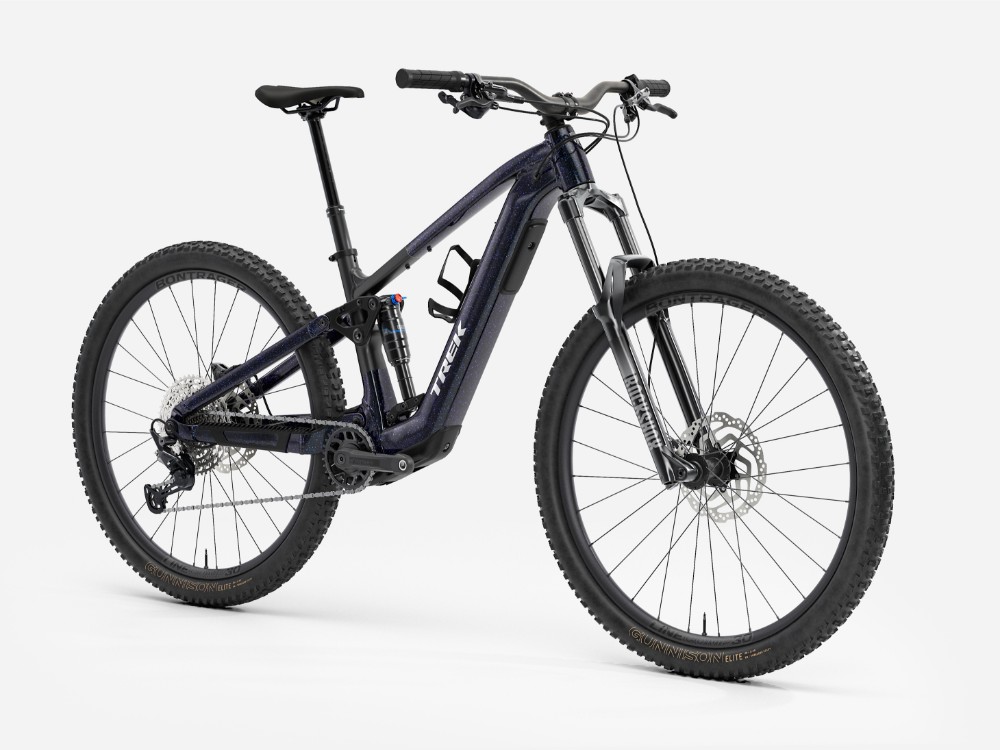

Trek Fuel+ EX 5 Gen 2 2026 - Electric Mountain Bike
The Trek Fuel+ EX 5 Gen 2 makes trail e-riding more accessible, with a clever blend of natural-feeling assistance and proven MTB tech. Built around Trek’s Alpha Platinum aluminium frame, this full-suspension e-bike offers a balanced 145 mm of rear travel paired with a 150 mm RockShox Recon Silver fork, giving you confidence when trails get rough or technical.
Key Features:
- Alpha Platinum aluminium frame with trail-ready geometry and 145 mm rear travel
- RockShox Recon Silver fork with 150 mm of smooth suspension travel
- X-Fusion Pro 2 rear shock with 145 mm travel and 2-position damper
- Shimano Deore 12-speed drivetrain with wide-range 10-51T cassette
- Shimano MT4100/420 4-piston hydraulic disc brakes for powerful control
- 29” Bontrager Line TLR wheels with wide Gunnison Elite XR tyres
- TranzX dropper post and angle-adjust headset for dialled fi
- Available with 0% APR finance
Drive Information:
- Motor: TQ-HPR60 motor with 60 Nm of torque for quiet, natural-feeling assist
- Battery: 580 Wh removable battery for big trail days
- User Interface: TQ LED display with Bluetooth & ANT+ connectivity
At the heart of the bike is the lightweight, compact TQ-HPR60 motor, designed for quiet operation and smooth power delivery that complements your pedalling. With 60 Nm of torque, it gives you enough boost for steep climbs and long days, while the 580 Wh battery is neatly integrated into the downtube and removable for easy charging.

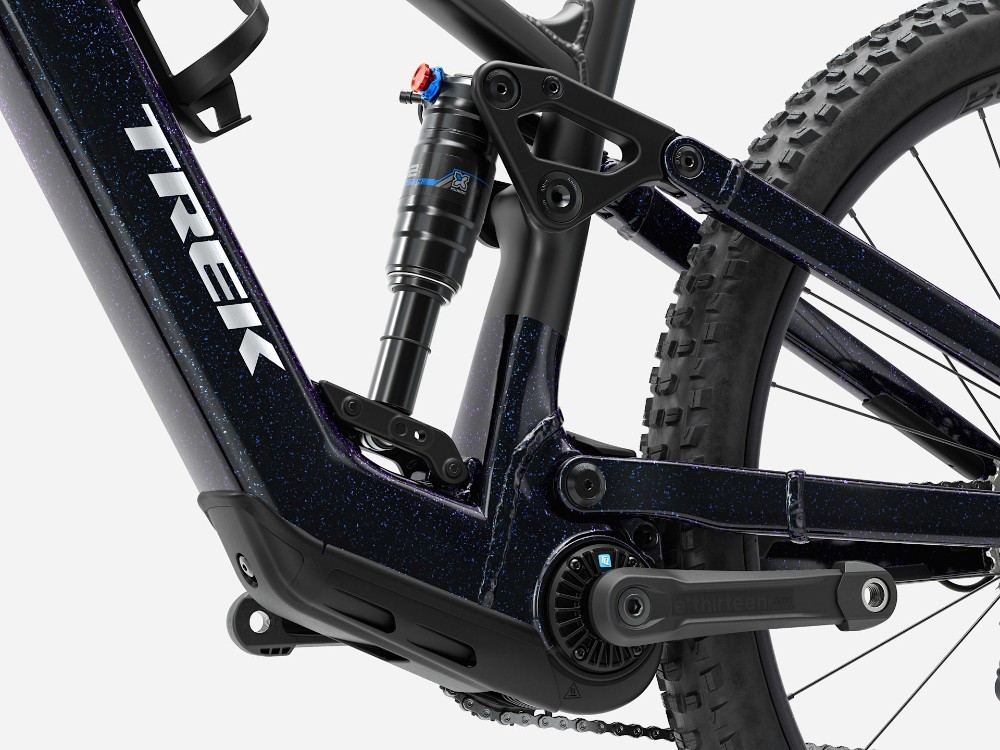

The X-Fusion Pro 2 rear shock keeps the back end planted and composed, working with Trek’s ABP suspension platform to offer stable pedalling and descending traction. The Shimano Deore M6100 12-speed drivetrain provides crisp shifting and a wide-range cassette that’s ideal for varied gradients.
Braking comes courtesy of Shimano’s 4-piston MT4100/420 system, offering serious stopping power and modulation for technical descents. Tubeless-ready Bontrager Line wheels and chunky Gunnison Elite XR 2.4” tyres give you confident cornering and grip across all trail conditions.
For a bike at this level, you’re also getting excellent ride features like a TranzX dropper post, an angle-adjustable headset, and guided internal cable routing for a clean look. The TQ LED display is neatly integrated into the top tube and pairs with Bluetooth or ANT+ for use with cycling computers and apps.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha NEXT Platinum, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |
| Rear Shock | X-Fusion Pro 2, 2-position damper, 205 mm x 60mm |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Bars | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Front Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Rear Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Rear Mech | Shimano Deore M6100, long cage |
| Shifters | Shimano Deore M6100, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Spokes | 14 g stainless steel, black |
| Front Tyre | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Rear Tyre | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Seat Post | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Chainset | E*thirteen E*spec Plus, 160 mm length. E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Chain | Shimano Deore M6100, 12-speed |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Pedals | Resin Platform |
| Weight | 21.92 kg |
| Battery Size (WH) | TQ 580Wh |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| User Interface | TQ LED display with Bluetooth & ANT+ connectivity |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
