Name: Trek Fuel EXe 5 - Nearly New – M 2025 - Electric Mountain Bike
Brand: Trek

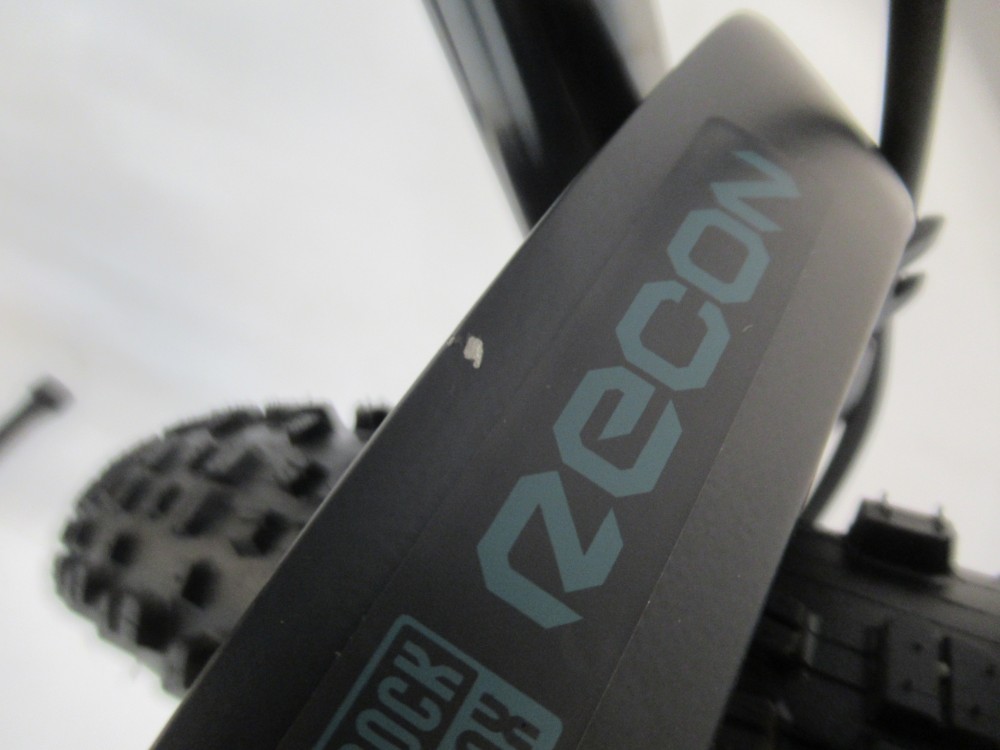

This Fuel EXe 5 electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the fork bridge, right hand side of top tube, right hand crank arm, right hand lower stay, left hand upper and lower stays, left hand crank, left hand side of the downtube, left hand fork leg, top cap and left hand brake lever.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

TQ-HPR50 – small, quiet, mighty

The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.

Range Extender

Give yourself 40% more range with an optional 160 Wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

Connect, customise, calculate

The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyse and personalise your ride. You even get navigation features and real-time range calculations.

Removable battery

The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Slack or steep, the choice is yours

Install angle-adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking – all without impacting your bottom bracket height.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork	Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Rear Shock	X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Bars	Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Front Brake	Tektro HD-M745 4-piston hydraulic disc
Rear Brake	Tektro HD-M745 4-piston hydraulic disc
Rear Mech	Shimano Deore M6100, long cage
Shifters	Shimano Deore M6100, 12-speed
Speed	12
Rims	Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Front Hub	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub	Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front Tyre	Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Rear Tyre	Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Seat Post	TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm
Saddle	Bontrager Arvada, steel rails, 138 mm width
Chainset	Ethirteen Espec Plus, 165 mm length
Chain	Shimano Deore M6100, 12-speed
Cassette	Shimano Deore M6100, 10-51, 12-speed
Battery Size (WH)	TQ 360Wh
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
User Interface	TQ LED display with Bluetooth & ANT+ connectivity

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)
