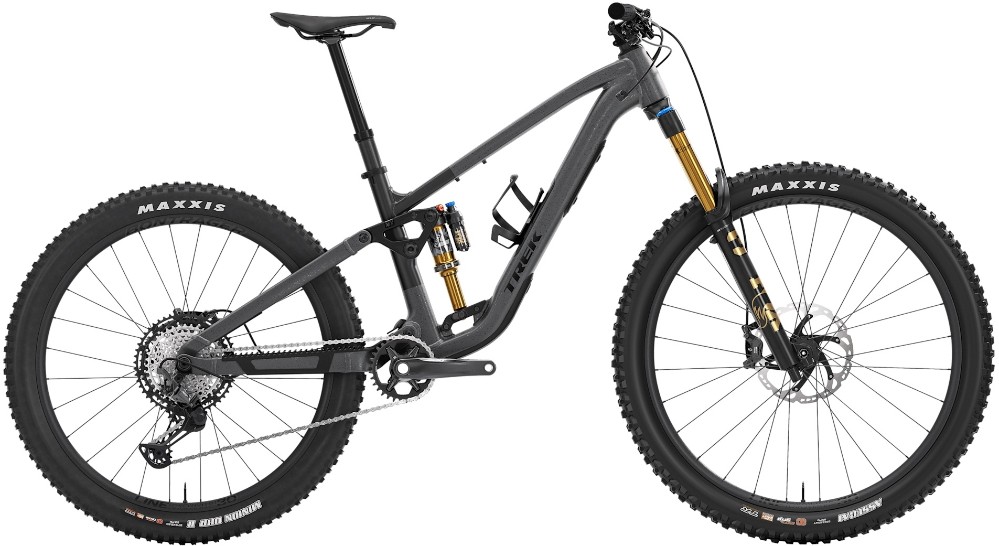

Trek Fuel MX 9 XT Gen 7 Mountain Bike 2026 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha NEXT Platinum, internal storage, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel |
| Rear Shock | Fox Factory Float X, 205 mm x 60 mm |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Front Brake | Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc |
| Rear Brake | Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc |
| Brake Lever | Shimano XT M8200 |
| Rear Mech | Shimano XT M8100, long cage |
| Shifters | Shimano XT M8100, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line Comp 30 |
| Front Hub | 6-bolt, Boost110, 15 mm thru-axle |
| Rear Hub | Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle |
| Front Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Rear Tyre | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Seat Post | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | Shimano XT M8120, 30T, 55 mm chain line |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Chain | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Weight | 16.91 kg |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
