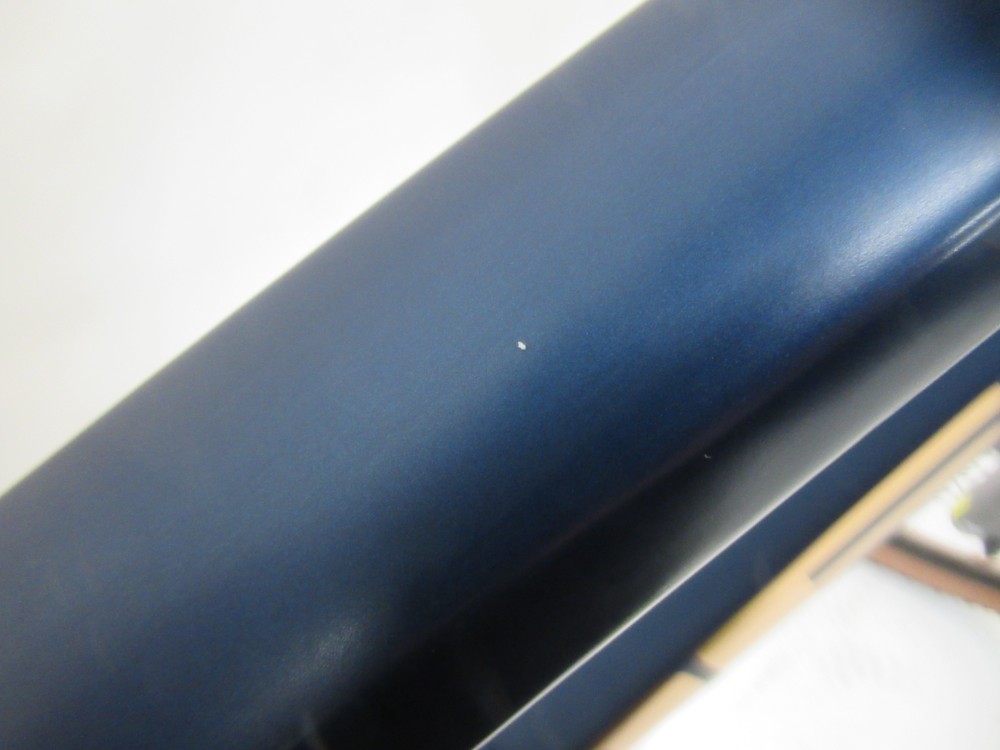

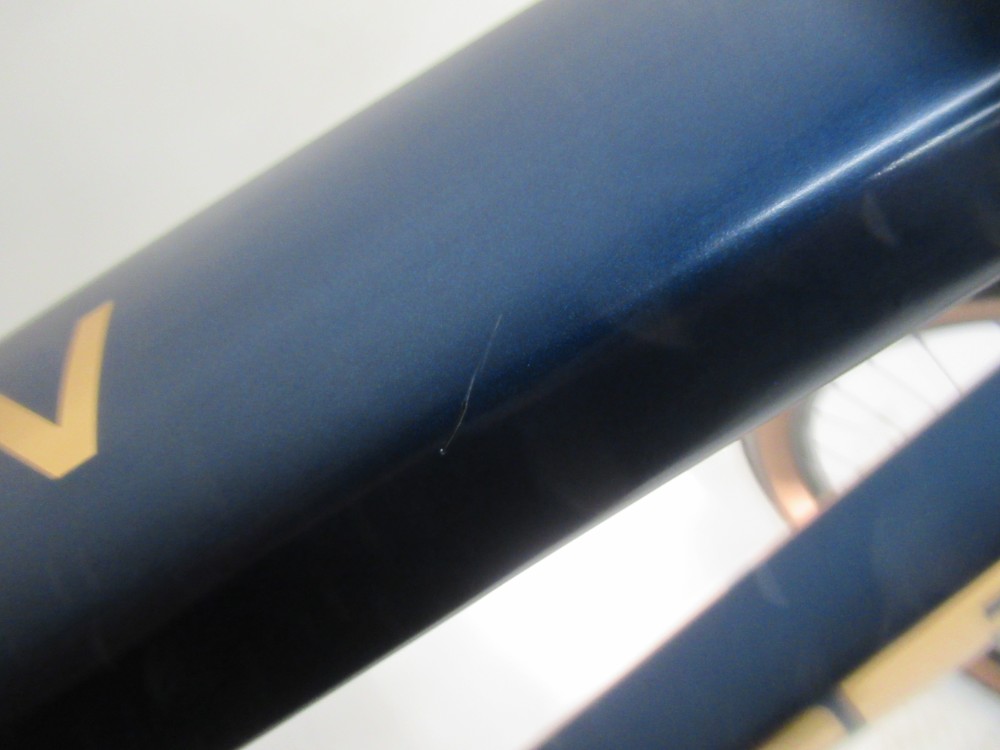

This Marlin 5 Gen 3 mountain bike is rated as an Excellent Grade, which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the drive side top tube and on the kick stand mount.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Will my bike have a curved top tube?

Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Fit for every rider

Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

High tech, high value

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

Shimano CUES

Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.

Shimano LINKGLIDE

LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR
Headset	Semi-Integrated, 1-1/8"
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree
Bars	Bontrager alloy, 31.8 mm, 5 mm rise
Front Brake	Shimano MT200 Hydraulic Disc
Rear Brake	Shimano MT200 Hydraulic Disc
Brake Lever	SHIMANO MT200
Rear Mech	Shimano CUES U4000
Shifters	Shimano U4000, 9-speed
Speed	9
Rims	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Front Hub	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Front Tyre	Bontrager Montrose comp, wire bead, 30 tpi
Rear Tyre	Bontrager Montrose comp, wire bead, 30 tpi
Saddle	Bontrager Verse Short, stainless steel rails
Chainset	Shimano CUES U4001, 32T, 52mm chain line
Bottom Bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Chain	Shimano LG500
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)
