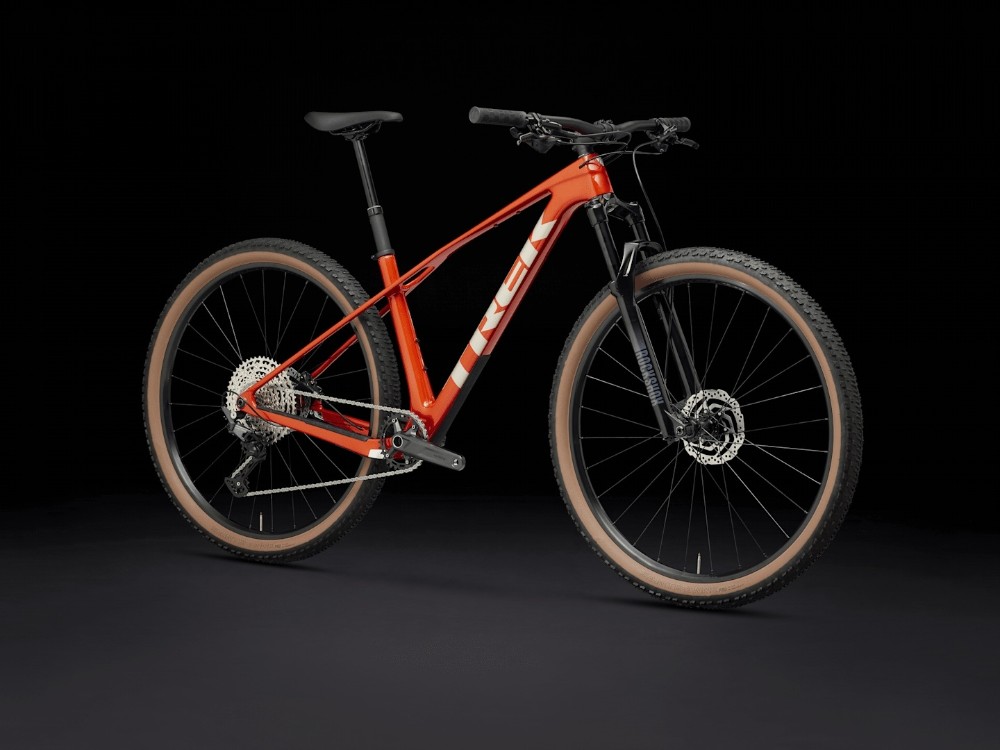

Trek Procaliber 9.5 Gen 3 Mountain Bike 2025 - Hardtail MTB
Designed for fast XC laps and long days in the saddle, the Procaliber 9.5 Gen 3 combines an OCLV Carbon frame with RockShox suspension, IsoBow comfort tech and Shimano Deore 12-speed shifting to deliver smooth, efficient trail performance.
Key Features:
- OCLV Mountain Carbon frame with IsoBow tech and XC geometry
- RockShox Judy Gold fork with 120mm travel and TurnKey lockout
- Shimano Deore 12-speed drivetrain with 10-51T wide-range cassette
- Shimano MT200 hydraulic disc brakes for confident stopping
- 29" Bontrager Kovee tubeless-ready wheels with 2.4" Sainte-Anne XR tyres
- Bontrager Line dropper post for fast on-trail adjustment
- Available with 0% APR finance
The Trek Procaliber 9.5 Gen 3 is a race-focused carbon hardtail built to maximise speed without punishing your body on rough terrain. It features OCLV Mountain Carbon construction, which is designed specifically for off-road durability, and integrates IsoBow; a trail-smoothing flex point in the rear triangle that absorbs trail chatter without compromising stiffness or efficiency.
This makes it the perfect choice for XC racers or ambitious trail riders who want to stay fresh and fast over long distances. The RockShox Judy Gold fork with 120mm of travel helps to soak up roots, rocks and ruts, and features a Solo Air spring and TurnKey lockout to give you better control and adaptability when climbing or sprinting.
The Shimano Deore 12-speed drivetrain delivers smooth, reliable performance across a wide gear range with its 10-51T cassette perfect for steep ascents and fast descents alike. Braking is handled by Shimano MT200 hydraulic disc brakes, offering dependable stopping power in all trail conditions.
Rolling on 29” Bontrager Kovee tubeless-ready wheels, the Procaliber 9.5 is ready to run lower pressures for better grip and fewer punctures. The wide 2.4” Bontrager Sainte-Anne XR tyres offer confident traction across loose, technical ground, and the Bontrager Line dropper post lets you get your weight back quickly when descending or tackling steep terrain.
With a solid mix of performance, comfort and durability, the Procaliber 9.5 Gen 3 is an excellent entry into carbon XC racing; fast, capable and designed to keep you in control no matter how tough the trail gets.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148 |
| Fork | RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Bars | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Front Brake | Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc |
| Rear Brake | Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc |
| Rear Mech | Shimano Deore M6100, long cage |
| Speed | 12 |
| Rims | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Front Tyre | Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Rear Tyre | Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Seat Post | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
| Saddle | Verse Short, chromoly rails, 145 mm width |
| Chainset | Shimano MT512, 32T, 55 mm chain line, 175 mm |
| Bottom Bracket | Shimano MT500, 92 mm, PressFit |
| Chain | Shimano Deore M6100, 12-speed |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
Trek Procaliber 2025 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| S | 155 - 165 cm | 5'1" - 5'5" | 74 - 78 cm | 29" - 31" |
| M | 165 - 176 cm | 5'5" - 5'9" | 79 - 83 cm | 31" - 33" |
| ML | 173 - 180 cm | 5'8" - 5'11" | 81 - 86 cm | 32" - 34" |
| L | 177 - 188 cm | 5'10" - 6'2" | 84 - 89 cm | 33" - 35" |
| XL | 188 - 195 cm | 6'2" - 6'5" | 89 - 91 cm | 35" - 36" |
What size frame do I need if I am between sizes? - read here
Trek Procaliber 2025 Geometry Chart
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| Stack | 614 | 614 | 614 | 614 | 642 |
| Reach | 405 | 430 | 445 | 460 | 500 |
| Head Tube Length | 90 | 90 | 90 | 90 | 120 |
| Head Tube Angle | 67.0° | 67.0° | 67.0° | 67.0° | 67.0° |
| Bottom Bracket Height | 309 | 309 | 309 | 309 | 309 |
| Bottom Bracket Drop | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
| Offset | 43 | 43 | 43 | 43 | 43 |
| Chainstay Length | 430 | 430 | 435 | 435 | 440 |
| Wheelbase | 1110 | 1135 | 1155 | 1171 | 1227 |
| Top Tube Length (horizontal) | 577 | 598 | 613 | 628 | 677 |
| Standover Height | 747 | 749 | 758 | 763 | 791 |
| Seat Tube Length | 390 | 420 | 440 | 460 | 510 |
| Seat Tube Angle | 71.0° | 71.5° | 72.0° | 72.5° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
