Name: VooDoo Zobop-E 2025 - Electric Mountain Bike
Brand: VooDoo
Rating: 4.67 (3 reviews)

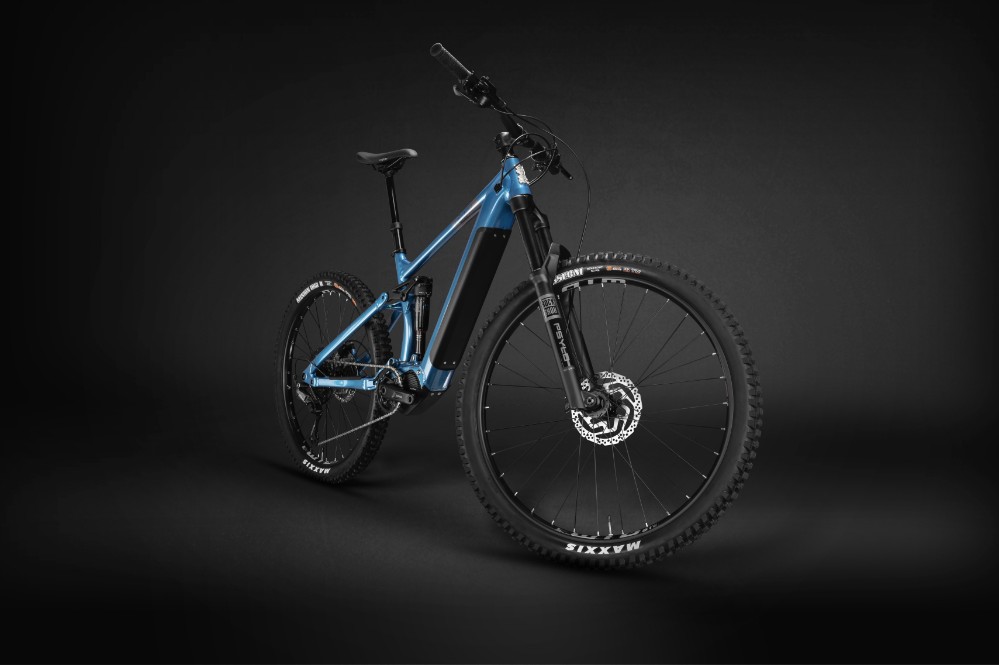

The VooDoo Zobop-E is made to bring all-mountain capability to every ride, whether you're charging down rocky descents or picking your way through technical climbs. At the core of this trail-taming e-MTB is the Shimano EP6 drive system and an 85Nm mid-motor that offers responsive, natural-feeling assistance across three customisable modes: Eco, Trail and Boost. You can easily switch between them using the intuitive LCD bar-mounted display, giving you full control over your power output at the touch of a button.

Key Features:

Alloy frame with 64° head angle and trail-ready progressive geometry
RockShox Psylo Silver R fork with 160mm of smooth front travel
RockShox Deluxe Select+ rear shock delivering 150mm of plush suspensio
Shimano CUES 10-speed drivetrain with wide-range 11–48T cassette
Shimano MT200 hydraulic disc brakes for strong, dependable stopping
29" front & 27.5" rear wheels with Maxxis Assegai & DHR II tyres
Dropper seatpost with WTB Volt saddle for on-the-fly adjustmen
Available with 0% APR finance

Drive Information:

Motor: Shimano EP6 mid-drive motor, 85Nm max torque
Battery: Shimano 504Wh internal battery
User Interface: Shimano LCD display with mode switch on handlebars

The alloy frame features VooDoo’s progressive trail geometry with a slack 64° head angle for extra confidence when things get steep, and short chainstays to keep it agile and playful on tighter trails. The mixed wheel setup, 29” up front for control, 27.5” at the rear for snappy handling, strikes the perfect balance for aggressive riders who want the best of both worlds.

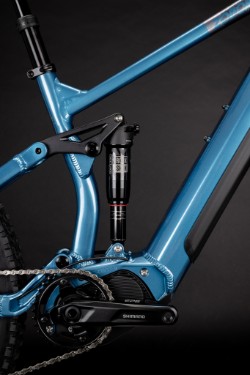

Suspension duties are handled by RockShox, with a Psylo Silver R fork offering 160mm of front travel and a Deluxe Select+ rear shock providing 150mm out back. The result? Plush, controlled performance over roots, rocks and drops.

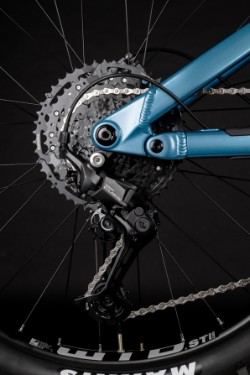

Shimano’s CUES 1x10 drivetrain delivers reliable shifting and wide-range gearing to help you clear technical climbs. On the way back down, the Shimano MT200 brakes provide all the stopping power you need to stay in control.

Rounding out the build are grippy, trail-proven Maxxis tyres, Assegai front and DHR II rear, both tubeless-ready and specced with the grippy 3C MaxxTerra compound. A dropper post with a WTB Volt saddle keeps you positioned perfectly whether you're grinding uphill or sending it down the other side.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Full suspension, alloy 6061
Fork	RockShox Psylo Silver R, 160mm travel
Rear Shock	Rockshox Deluxe Select+
Headset	FSA No.57-HBS 200, integrated 1-1/8" - 1.5"
Stem	Voodoo alloy, 45mm
Bars	Voodoo alloy, 31.8mm x 780mm
Front Brake	Shimano BR-MT200, hydraulic disc, 180mm disc rotor
Rear Brake	Shimano BR-MT200, hydraulic disc, 180mm disc rotor
Rear Mech	Shimano CUES RD-U6000-GS, Shadow+, UDH hanger
Shifters	Shimano CUES SL-U6000, 10 speed
Speed	10
Rims	WTB alloy 29", double wall, 32H, tubeless ready
Front Tyre	Tubeless ready, Maxxis Assegai, 3C MaxxTerra, 29"x2.5"
Rear Tyre	Maxxis DHR II, 3C MaxxTerra, 27.5"x2.4" (rear)
Seat Post	X-Fusion Manic dropper post, 150mm travel
Saddle	WTB Volt Medium
Chainset	Shimano FC-EM600 160mm crank arm, Shimano SM-CRE70-B 34T chain ring
Bottom Bracket	Integrated with Shimano EP6 drive-unit
Chain	KMC eGlide EPT, 10 speed
Cassette	Shimano CUES CS-LG300, 11-48T, 10 speed
Pedals	Voodoo, alloy cage
Battery Size (WH)	Shimano 36v, 14Ah, 504Wh
Motor	Shimano EP6 mid-drive, 250w, 85Nm
User Interface	Shimano SC-EN500, LCD, 3 assist levels, walk assist

Height	e Bike Size	e Road Bike Size	e Mountain Bike Size*
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)
